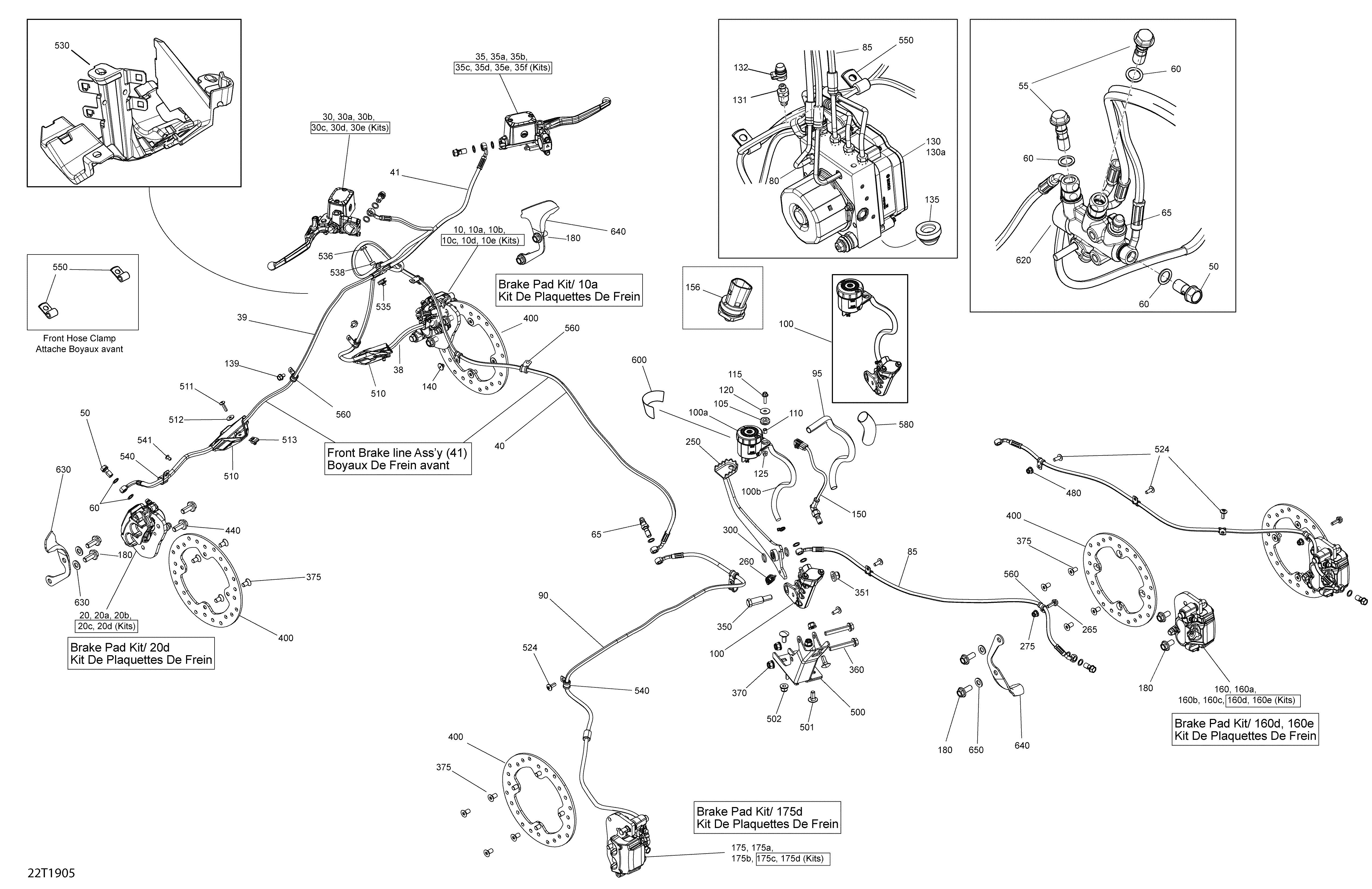

06- Brakes - 1000R EFI для BRP 003 - Outlander 1000R EFI - North America - 2019
-
№АртикулНазвание
-
10703500967 RH Front Caliper Ass'y. Package XMR. Includes 10a to 10bRH Front Caliper Ass'y. Package XMR. Includes 10a to 10b
-
10705600861 RH Front Caliper Ass'y. All Packages Except XMR. Includes 10a to 10bRH Front Caliper Ass'y. All Packages Except XMR. Includes 10a to 10b
-
10a705601017 Bleeding ScrewBleeding Screw
-
10b705601018 SpringSpring
-
10c715900249 RH Brake Pad Kit. Package XMRRH Brake Pad Kit. Package XMR
-
10d705601014 RH Brake Pad Kit. All Packages Except XMRRH Brake Pad Kit. All Packages Except XMR
-
10e705601016 Pin SetPin Set
-
20703500968 LH Front Caliper Ass'y. Package XMR. Includes 20a to 20bLH Front Caliper Ass'y. Package XMR. Includes 20a to 20b
-
20705600862 LH Front Caliper Ass'y. All Packages Except XMR. Includes 20a to 20bLH Front Caliper Ass'y. All Packages Except XMR. Includes 20a to 20b
-
20a705601017 Bleeding ScrewBleeding Screw
-
20b705601018 SpringSpring
-
20c705601016 Pin SetPin Set
-
20d705601015 LH Brake Pad Kit. All Packages Except XMRLH Brake Pad Kit. All Packages Except XMR
-
20d715900248 LH Brake Pad Kit. Package XMRLH Brake Pad Kit. Package XMR
-
30705601430 LH Front Master Cylinder. All Packages Except XXC. Includes 30a to 30bLH Front Master Cylinder. All Packages Except XXC. Includes 30a to 30b
-
30705601431 LH Front Master Cylinder Ass'y. Package XXC. Includes 30a to 30bLH Front Master Cylinder Ass'y. Package XXC. Includes 30a to 30b
-
30a415129356 Screw M4 X 20Screw M4 X 20
-
30b250000447 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
30c705601013 Lever SetLever Set
-
30d507032477 Clamp And Screw KitClamp And Screw Kit
-
30e219800096 Cap SetCap Set
-
35705601432 RH Front Master Cylinder Ass'y. Package XXC. Includes 35a to 35bRH Front Master Cylinder Ass'y. Package XXC. Includes 35a to 35b
-
35a250000447 Hex Flanged Screw M6 X 25. Package XXCHex Flanged Screw M6 X 25. Package XXC
-
35b415129356 Screw M4 X 20. Package XXCScrew M4 X 20. Package XXC
-
35c705601011 Lever Set. Package XXCLever Set. Package XXC
-
35d507032477 Clamp And Screw Kit. Package XXCClamp And Screw Kit. Package XXC
-
35e705601012 Kit Switch. Package XXCKit Switch. Package XXC
-
35f219800096 Cap Set. Package XXCCap Set. Package XXC
-
38705601690 RH Brake Line. Package XMRRH Brake Line. Package XMR
-
39705601692 LH Brake Line. Package XMRLH Brake Line. Package XMR
-
40705601686 Brake Line. All Packages Except XXC. Includes 40 to 41Brake Line. All Packages Except XXC. Includes 40 to 41
-
40705601546 Brake Line. Package XXC. Includes 40 to 41Brake Line. Package XXC. Includes 40 to 41
-
41705601693 Brake Line. Package XXCBrake Line. Package XXC
-
45705600967 Brake Handle Line. Package XMRBrake Handle Line. Package XMR
-
50705600609 Banjo Bolt (M10 x 1.25 thread)Banjo Bolt (M10 x 1.25 thread)
-
55705600958 Banjo Bolt. Package XMRBanjo Bolt. Package XMR
-
60705601628 Copper WasherCopper Washer
-
65705601051 Bleeding ScrewBleeding Screw
-
80705601518 Outlet Hose, Master Cylinder. Package XMROutlet Hose, Master Cylinder. Package XMR
-
85705601324 RH Rear Hose. Package XMRRH Rear Hose. Package XMR
-
85705601301 RH Rear Hose. All Packages Except XMRRH Rear Hose. All Packages Except XMR
-
90705600973 Inlet Hose, Master Cylinder. Package XMRInlet Hose, Master Cylinder. Package XMR
-
90705601554 Brake Line Ass'y. Package XXCBrake Line Ass'y. Package XXC
-
95415079900 Tubing 10 mmTubing 10 mm
-
100705601273 Rear Master Cylinder. All Packages Except XXC & XMR. Includes 100a to 100bRear Master Cylinder. All Packages Except XXC & XMR. Includes 100a to 100b
-
100705601274 Rear Master Cylinder Ass'y. Package XXC & XMR. Includes 100a to 100cRear Master Cylinder Ass'y. Package XXC & XMR. Includes 100a to 100c
-
100a705601020 Oil TankOil Tank
-
100b705601019 Housing Oil HoseHousing Oil Hose
-
105414036300 GrommetGrommet
-
110293900112 BushingBushing
-
115207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
120224060201 Flat WasherFlat Washer
-
125233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
130703500984 VCM Module. Includes 130 to 130aVCM Module. Includes 130 to 130a
-
130a710003279 Damper ShockDamper Shock
-
131705600502 Bleeder Screw. T3&ABSBleeder Screw. T3&ABS
-
132705601190 Bleeder Bolt CapBleeder Bolt Cap
-
135710003279 Damper ShockDamper Shock
-
139210261640 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
139210265040 Hex Flanged Screw M6 X 50. Package XMRHex Flanged Screw M6 X 50. Package XMR
-
140390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
150705601250 Brake Switch. All Packages Except XXC & XMRBrake Switch. All Packages Except XXC & XMR
-
150705601251 Brake Switch. Package XXC & XMRBrake Switch. Package XXC & XMR
-
156705601578 Pressure SensorPressure Sensor
-
160703500969 RH Rear Caliper Ass'y. Package XMR. Includes 160a to 160bRH Rear Caliper Ass'y. Package XMR. Includes 160a to 160b
-
160705600859 RH Rear Caliper Ass'y. Except Package XMR. Includes 160a to 160bRH Rear Caliper Ass'y. Except Package XMR. Includes 160a to 160b
-
160a705601017 Bleeding ScrewBleeding Screw
-
160b705601018 SpringSpring
-
160c705601016 Pin SetPin Set
-
160d705601014 RH Brake Pad Kit. Except Package XMRRH Brake Pad Kit. Except Package XMR
-
160e715900249 RH Brake Pad Kit. Package XMRRH Brake Pad Kit. Package XMR
-
175705600860 LH Rear Caliper Ass'y. Package XXC. Includes 175a to 175bLH Rear Caliper Ass'y. Package XXC. Includes 175a to 175b
-
175a705601017 Bleeding Screw. Package XXCBleeding Screw. Package XXC
-
175b705601018 Spring. Package XXCSpring. Package XXC
-
175c705601016 Pin Set. Package XXCPin Set. Package XXC
-
175d705601015 LH Brake Pad Kit. Package XXCLH Brake Pad Kit. Package XXC
-
180207502046 Hex. Flanged Screw M10 X 20Hex. Flanged Screw M10 X 20
-
250705601155 Brake PedalBrake Pedal
-
260705600792 Brake Pedal SpringBrake Pedal Spring
-
265207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
275233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
300293300144 O-RingO-Ring
-
350250000513 Shoulder Screw M10Shoulder Screw M10
-
351233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
360207685544 Hex. Flanged Screw M8 X 55Hex. Flanged Screw M8 X 55
-
370233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
375235381646 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
400705600999 Disc BrakeDisc Brake
-
440207502546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
480233261414 Hex. Flanged Elastic Nut M6 x 1.0. Package XMRHex. Flanged Elastic Nut M6 x 1.0. Package XMR
-
500705202000 Bracket Brake PedalBracket Brake Pedal
-
501207782044 Carriage Bolt, M8 X 20Carriage Bolt, M8 X 20
-
502233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
510705600962 Front Hose ProtectorFront Hose Protector
-
511250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
512250200025 Washer M5Washer M5
-
513250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
524250000755 Torx Screw M6 X 16Torx Screw M6 X 16
-
525390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
530705600983 Front Hose BracketFront Hose Bracket
-
535250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
536207562034 Hex. Flanged Screw M6 X 20, Scotch Grip. Package XMRHex. Flanged Screw M6 X 20, Scotch Grip. Package XMR
-
536207563044 Hex. Flanged Screw M6 X 30, Scotch Grip. All Packages Except XMRHex. Flanged Screw M6 X 30, Scotch Grip. All Packages Except XMR
-
538293900104 Bushing. Package XXCBushing. Package XXC
-
540518321570 Open ClampOpen Clamp
-
541390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
550293650219 Clamp. Package XMRClamp. Package XMR
-
560293650220 Clamp. Package XMRClamp. Package XMR
-
580409902200 Tubing 25 mm. Package XMRTubing 25 mm. Package XMR
-
600705601311 Heat Shield. Package XMRHeat Shield. Package XMR
-
620705600994 Splitter. Package XMRSplitter. Package XMR
-
630705601214 LH Deflector. OUT&P-XMR&M-650LH Deflector. OUT&P-XMR&M-650
-
630705601214 LH Deflector. REN&P-XMR&M-570LH Deflector. REN&P-XMR&M-570
-
640705601215 RH Deflector. OUT&P-XMR&M-650RH Deflector. OUT&P-XMR&M-650
-
640705601215 RH Deflector. REN&P-XMR&M-570RH Deflector. REN&P-XMR&M-570
-
650234001410 Flat Washer 10 mm. REN&P-XMR&M-570Flat Washer 10 mm. REN&P-XMR&M-570
-
650234001410 Flat Washer 10 mm. OUT&P-XMR&M-650Flat Washer 10 mm. OUT&P-XMR&M-650
