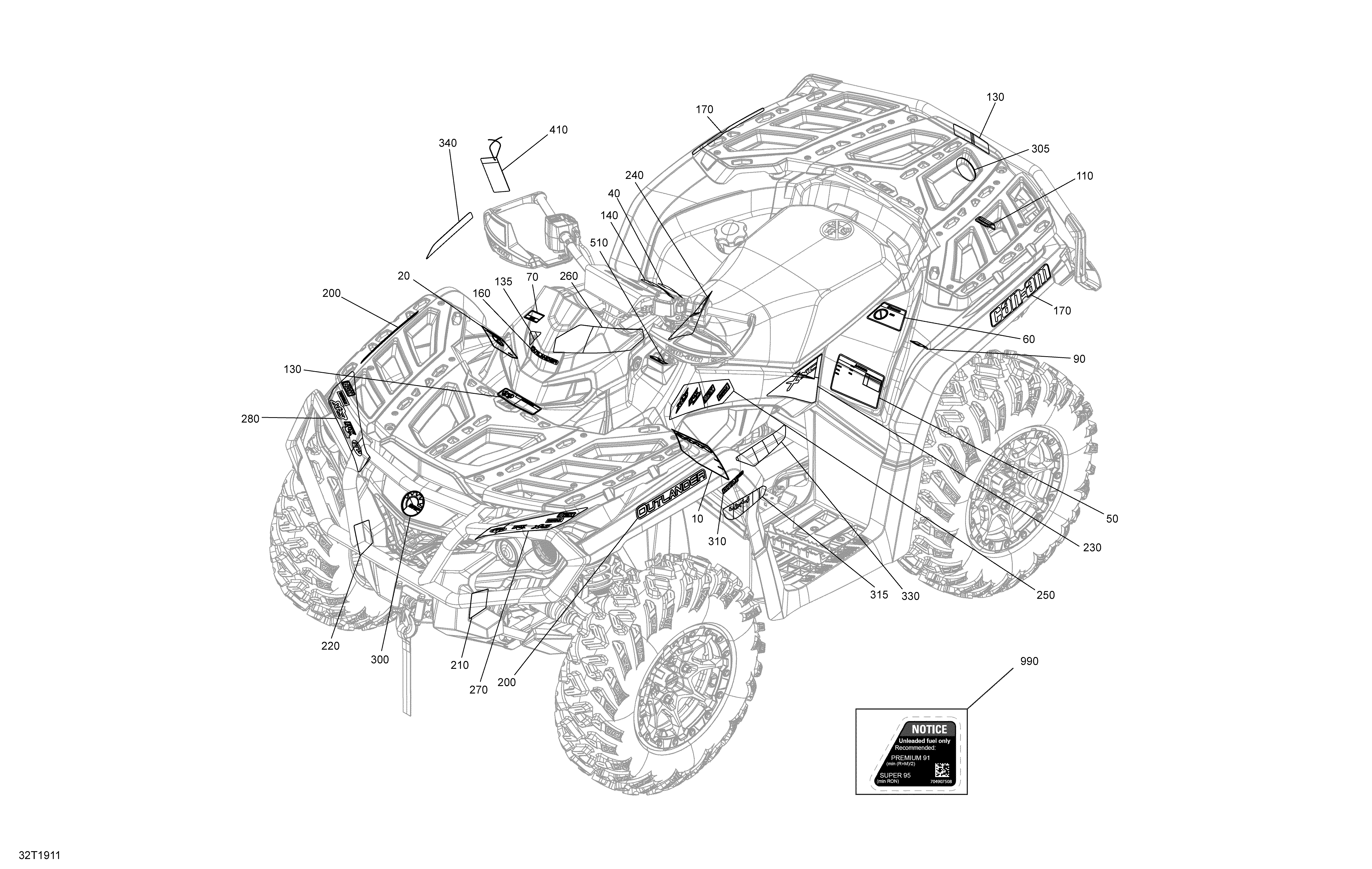

09- Decals XXC для BRP 003 - Outlander 1000R EFI - North America - 2019
-
№АртикулНазвание
-
10704907245 Warning Decal, Death And InjuriesWarning Decal, Death And Injuries
-
20704905677 Warning Decal, Death And InjuriesWarning Decal, Death And Injuries
-
40704905680 Transport Canada LabelTransport Canada Label
-
50704907614 Warning Decal, Tire PressureWarning Decal, Tire Pressure
-
60704906851 Warning Decal, PassengerWarning Decal, Passenger
-
70704905695 Warning Decal, Shifting LeverWarning Decal, Shifting Lever
-
90704907401 Warning Decal, Loading/TowingWarning Decal, Loading/Towing
-
110704905698 Warning DecalWarning Decal
-
130704905995 Warning DecalWarning Decal
-
135704905706 Warning Decal, Hot LiquidWarning Decal, Hot Liquid
-
140704905707 Warning Decal, PerformanceWarning Decal, Performance
-
160704905722 Console DecalConsole Decal
-
170704906878 Can-Am DecalCan-Am Decal
-
200704906879 Front Side Decal, OutlanderFront Side Decal, Outlander
-
210704902865 LH Front Side ReflectorLH Front Side Reflector
-
220704902866 RH Front Side ReflectorRH Front Side Reflector
-
230704906880 LH Decal XXCLH Decal XXC
-
240704906881 RH Decal XXCRH Decal XXC
-
250704906882 LH Sponsor DecalLH Sponsor Decal
-
260704906883 RH Sponsor DecalRH Sponsor Decal
-
270704906884 Hood Decal LHHood Decal LH
-
280704906885 Hood Decal RHHood Decal RH
-
300516008739 Logo BRPLogo BRP
-
305516008739 Logo BRPLogo BRP
-
310704905746 Rotax Power DecalRotax Power Decal
-
315704905747 4X4 Visco-Lok Decal4X4 Visco-Lok Decal
-
330704906040 LH 1000 Engine DecalLH 1000 Engine Decal
-
340704906041 RH 1000 Engine DecalRH 1000 Engine Decal
-
410704903310 Warning Decal, General Use ModelWarning Decal, General Use Model
-
510704906046 DESS DecalDESS Decal
-
990704907508 Decal Fuel Octane. 1000R EngineDecal Fuel Octane. 1000R Engine
