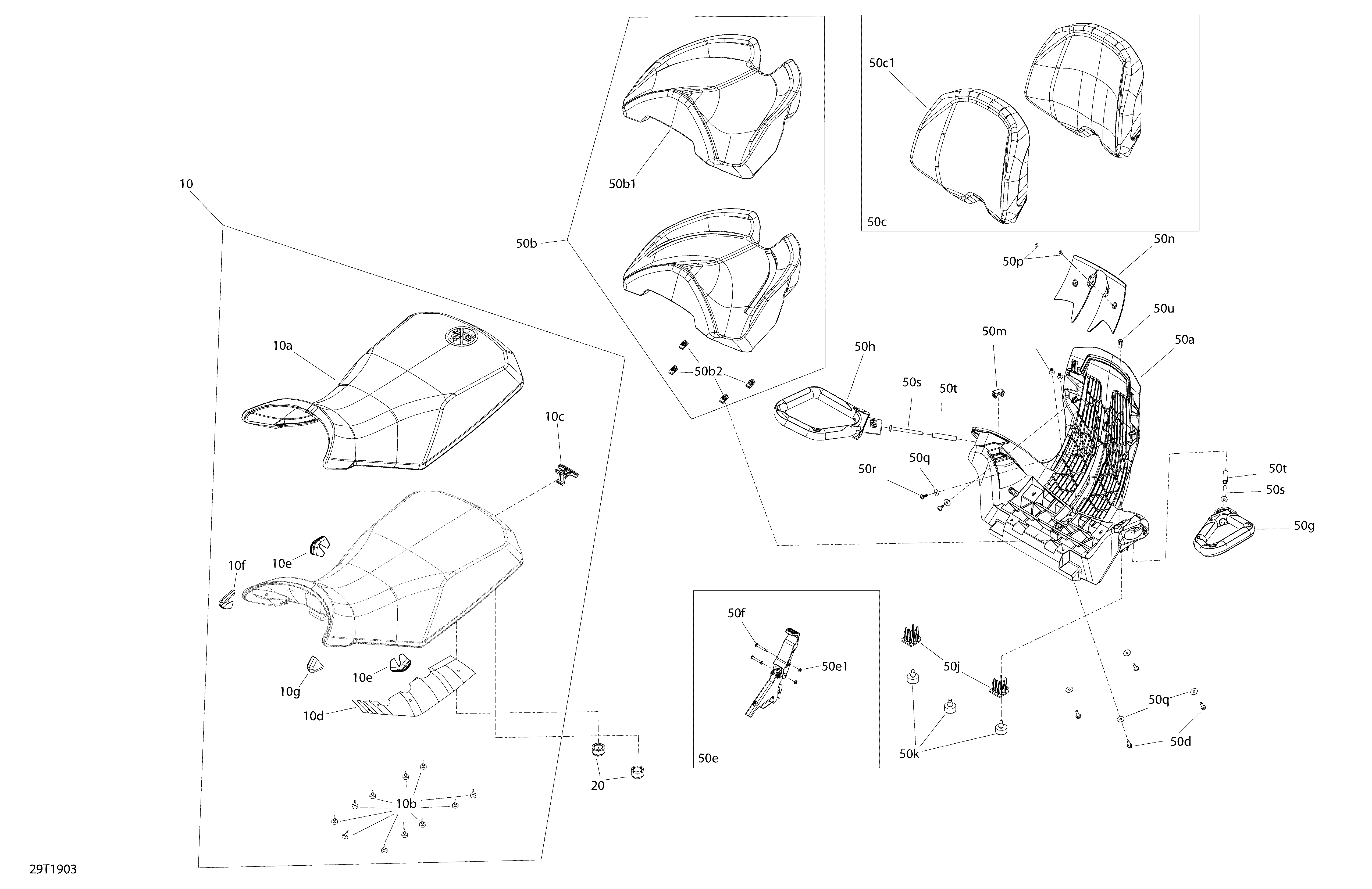

09- Seat MAX - 6X6 для BRP 002 - Outlander MAX 6X6 - 650 EFI - North America - 2019
-
№АртикулНазвание
-
10708002493 Assembly Seat. Includes 10 to 10gAssembly Seat. Includes 10 to 10g
-
10a708001972 Seat CoverSeat Cover
-
10b708000759 Rubber StopperRubber Stopper
-
10c708000909 LatchLatch
-
10d705005761 Heat ShieldHeat Shield
-
10e708002077 Center, Corner SeatCenter, Corner Seat
-
10f269001669 RH, Corner SeatRH, Corner Seat
-
10g269001670 LH, Corner SeatLH, Corner Seat
-
20708000760 Bumper RubberBumper Rubber
-
50a708002574 Seat BaseSeat Base
-
50b708002086 SeatSeat
-
50b1708001581 Passenger Seat CoverPassenger Seat Cover
-
50b2250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
50c708002081 BackrestBackrest
-
50c1708001847 Back Rest CoverBack Rest Cover
-
50d207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
50e708001532 LatchLatch
-
50e1234051410 Flat Washer M5Flat Washer M5
-
50f293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
50g703500806 LH Passenger Seat Handle KitLH Passenger Seat Handle Kit
-
50h703500807 RH Passenger Seat Handle KitRH Passenger Seat Handle Kit
-
50j708001483 Seat SupportSeat Support
-
50k708000758 Rubber StopperRubber Stopper
-
50m708001511 InsertInsert
-
50n708001512 CapCap
-
50p250000577 Torx Truss Screw K40 X 12Torx Truss Screw K40 X 12
-
50q224060201 Flat WasherFlat Washer
-
50r250000546 Oval Head Torx Screw K60 X 16Oval Head Torx Screw K60 X 16
-
50s250000806 Torx Truss M8 X 90Torx Truss M8 X 90
-
50t705009248 SleeveSleeve
-
50u710003910 Pilot Lamp CapPilot Lamp Cap
