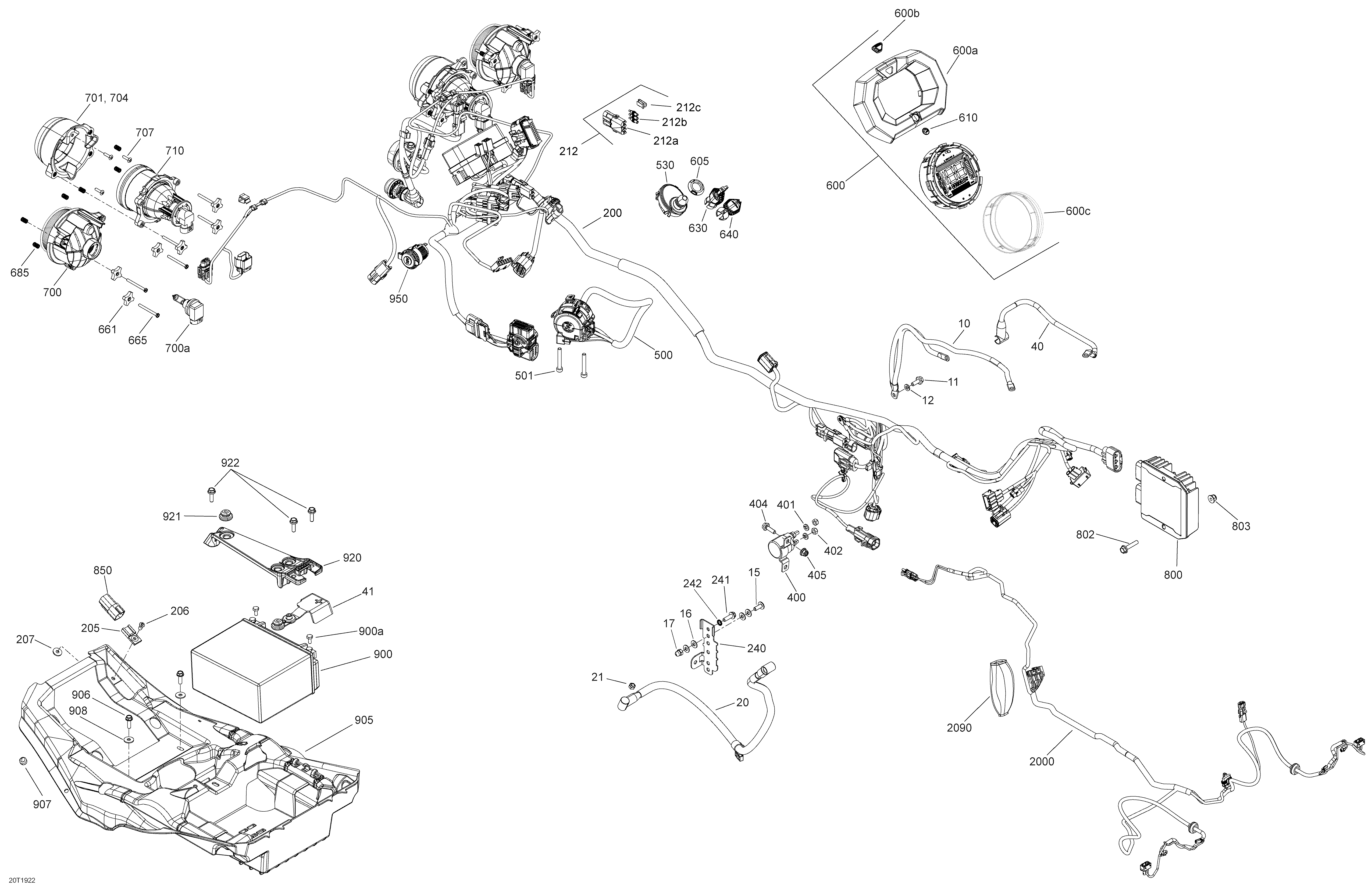

10- Electrical MAX 6X6 - North America для BRP 002 - Outlander MAX 6X6 - 650 EFI - North America - 2019
-
№АртикулНазвание
-
10710004382 Ground CableGround Cable
-
11207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
12234161601 Lock Washer Helical M6Lock Washer Helical M6
-
15250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
16224061121 Flat WasherFlat Washer
-
17232361493 Domed Nut M6Domed Nut M6
-
20710004377 Positive CablePositive Cable
-
21232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
40710004376 Positive Cable. Package DPSPositive Cable. Package DPS
-
200710006171 HarnessHarness
-
205270000141 ClipClip
-
206390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
207391301600 WasherWasher
-
211710000992 ClipClip
-
212710000917 Connector Ass'y. Package DPS. Includes 212 to 212cConnector Ass'y. Package DPS. Includes 212 to 212c
-
212a278000281 Female Terminal Housing, 3 Circuits. Package DPSFemale Terminal Housing, 3 Circuits. Package DPS
-
212b278000216 Wire Seal. Package DPSWire Seal. Package DPS
-
212c710000992 Clip. Package DPSClip. Package DPS
-
240710004118 Connector BracketConnector Bracket
-
241210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
242234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
280414227300 ClipClip
-
400710001364 Starter RelayStarter Relay
-
401234161601 Lock Washer Helical M6Lock Washer Helical M6
-
402232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
404207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
405233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
500710005070 Multi-Function HandleMulti-Function Handle
-
501205053588 Socket Head Screw M5 X 35Socket Head Screw M5 X 35
-
530515178225 DESS Switch, RFIDDESS Switch, RFID
-
600710005599 Speedometer Ass'y. Includes 600 to 600cSpeedometer Ass'y. Includes 600 to 600c
-
600a710002092 Trim RingTrim Ring
-
600b710001473 ButtonButton
-
600c415129320 LensLens
-
600710006216 SpeedometerSpeedometer
-
605278002963 Safety Nut (DESS Switch)Safety Nut (DESS Switch)
-
610704904615 BRP Logo, 13 mmBRP Logo, 13 mm
-
630710005232 Green Key RFIDGreen Key RFID
-
640710004964 Grey Key RFIDGrey Key RFID
-
661572106600 HandleHandle
-
665250000718 Hex. Screw K40 X 45Hex. Screw K40 X 45
-
685517168600 Spring. Includes 685 to 685aSpring. Includes 685 to 685a
-
700710006177 Low Beam. Includes 700 to 700aLow Beam. Includes 700 to 700a
-
700a715900141 Bulb 12V 55WBulb 12V 55W
-
701710002291 RH High Front HousingRH High Front Housing
-
704710002292 LH High Front HousingLH High Front Housing
-
707250000723 Phillips Screw K40 X 16Phillips Screw K40 X 16
-
710710002525 High Beam Ass'y. Includes 710 to 710aHigh Beam Ass'y. Includes 710 to 710a
-
710a415129249 Halogen BulbHalogen Bulb
-
800710005842 Voltage RegulatorVoltage Regulator
-
802207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
803233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
850710004904 Connector PlugConnector Plug
-
900410301203 Battery Ass'y, 18 Amperes. Includes 900 to 900aBattery Ass'y, 18 Amperes. Includes 900 to 900a
-
900a250000282 Battery Bolt KitBattery Bolt Kit
-
905710005528 Battery SupportBattery Support
-
906210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
907293830005 Rubber BumperRubber Bumper
-
908234062670 Flat Washer, StainlessFlat Washer, Stainless
-
920710002404 Fixation PlateFixation Plate
-
921705003666 Rubber GrommetRubber Grommet
-
922207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
950710001248 Outlet DCOutlet DC
-
2000710005932 Rear Light HarnessRear Light Harness
-
2090710004193 SheathSheath
