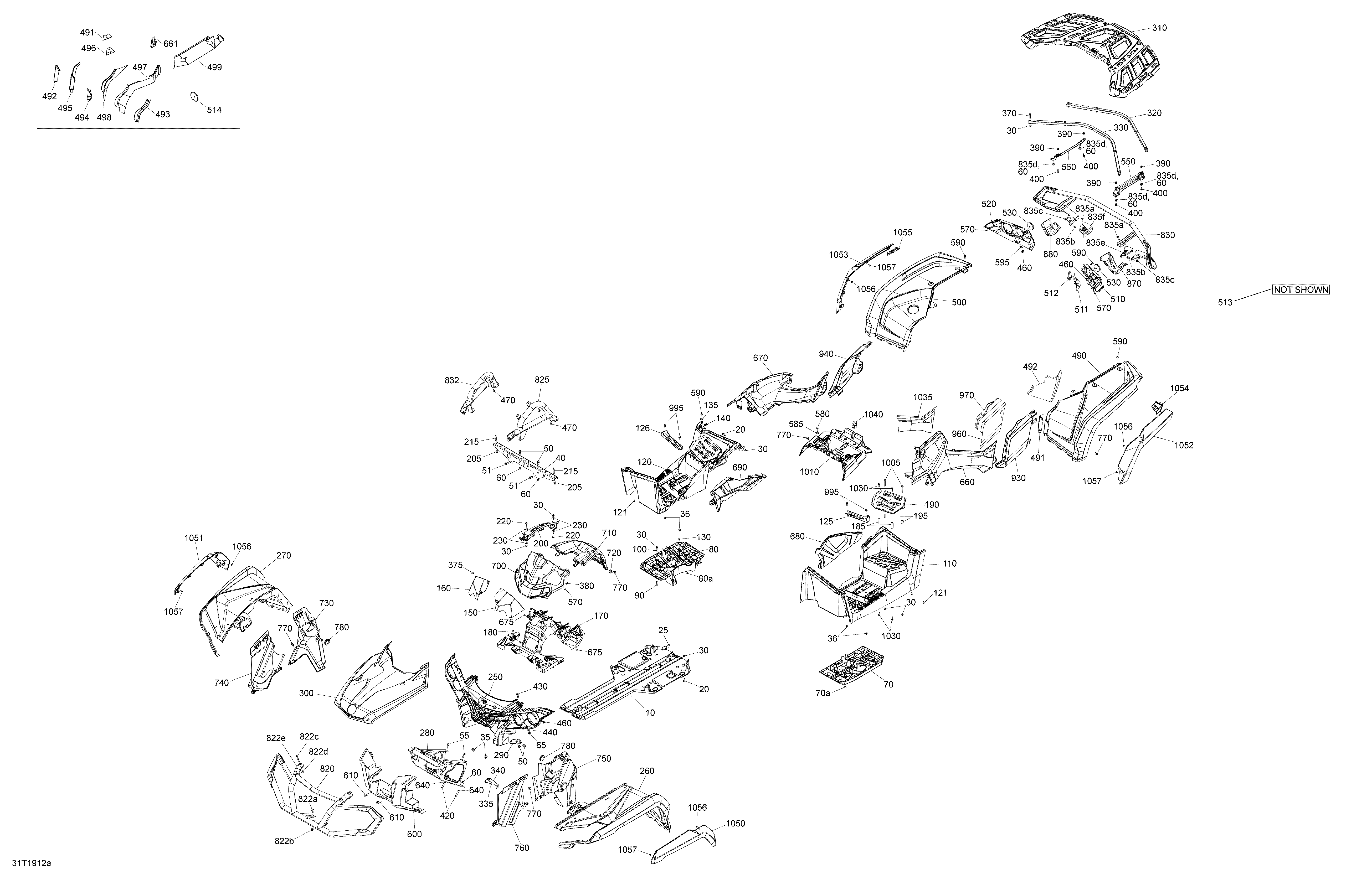

09- Body Package XMR для BRP 003 - Outlander 1000R EFI - International - European Communities - 2019
-
№АртикулНазвание
-
10715002374 Protective Plate KitProtective Plate Kit
-
20207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
20207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
25207762044 Carriage Bolt M6 X 20Carriage Bolt M6 X 20
-
30233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
35233201434 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
36233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
40705006220 Front Bumper Center SupportFront Bumper Center Support
-
50207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
51207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
55207582544 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
60233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
65233281464 Elastic Flange Nut M8Elastic Flange Nut M8
-
70705011540 LH Structural Footboard. Includes 70 to 70aLH Structural Footboard. Includes 70 to 70a
-
70a232862412 Square Nut M6Square Nut M6
-
80705011542 RH Structural FootboardRH Structural Footboard
-
80a232862412 Square Nut M6. Includes 80 to 80aSquare Nut M6. Includes 80 to 80a
-
90207763554 Carriage Bolt M6 X 35Carriage Bolt M6 X 35
-
100234062410 Flat Washer 6 mmFlat Washer 6 mm
-
110705005978 LH FootboardLH Footboard
-
120705005977 RH FootboardRH Footboard
-
121250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
125705004352 LH FootrestLH Footrest
-
126705005395 RH FootrestRH Footrest
-
130207661654 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
135224061201 Flat WasherFlat Washer
-
140250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
150705006134 LH Air DeflectorLH Air Deflector
-
160705006135 RH Air DeflectorRH Air Deflector
-
170715003984 Dash Support KitDash Support Kit
-
180293830005 Rubber BumperRubber Bumper
-
185705006819 Coupling Nut, LargeCoupling Nut, Large
-
190705011610 FootrestFootrest
-
195705006818 Coupling Nut, ShortCoupling Nut, Short
-
200715004085 IndicatorIndicator
-
205233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
215206285044 Socket Set Screw M8 x 50Socket Set Screw M8 x 50
-
220207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
230224061201 Flat WasherFlat Washer
-
250705012822 FasciaFascia
-
280705009253 Black Front Bumper SupportBlack Front Bumper Support
-
310705003559 Lugage RackLugage Rack
-
320705005469 TubeTube
-
330705005470 TubeTube
-
335210261040 Hex. Flanged Screw M6 X 10Hex. Flanged Screw M6 X 10
-
340705007140 LH Inner Fender BracketLH Inner Fender Bracket
-
370250000646 Torx Screw M6 X 35Torx Screw M6 X 35
-
375293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
380517124300 WasherWasher
-
390250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
400207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
420250000886 Torx Screw M8 X 30Torx Screw M8 X 30
-
430207183054 Hex. Cap Screw M8 X 30Hex. Cap Screw M8 X 30
-
440234081670 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
460517302785 Edge ClipEdge Clip
-
470207551634 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
-
491707002456 Heat ShieldHeat Shield
-
492707002457 Heat ShieldHeat Shield
-
493707002458 Heat ShieldHeat Shield
-
494707002459 Heat ShieldHeat Shield
-
495707002460 Heat ShieldHeat Shield
-
496707002461 Heat ShieldHeat Shield
-
497707002462 Heat ShieldHeat Shield
-
498707002463 Heat ShieldHeat Shield
-
499707002464 Heat ShieldHeat Shield
-
510705006643 LH Rear FaciaLH Rear Facia
-
511707002103 Heat ShieldHeat Shield
-
512707002107 Heat ShieldHeat Shield
-
513707002293 Heat ShieldHeat Shield
-
514707002465 Heat ShieldHeat Shield
-
520705006650 RH Rear FaciaRH Rear Facia
-
530705011221 Red ReflectorRed Reflector
-
550705007277 LH SupportLH Support
-
560705007278 RH SupportRH Support
-
570732610072 Push NutPush Nut
-
570732610072 Push NutPush Nut
-
580250000841 Screw Hex Flange M6 X 25Screw Hex Flange M6 X 25
-
585234062670 Flat Washer, StainlessFlat Washer, Stainless
-
590250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
595207661654 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
600705006299 Front Guard PlateFront Guard Plate
-
610205003044 Socket Screw M10 x 30Socket Screw M10 x 30
-
640705004497 RingRing
-
661707002467 Heat ShieldHeat Shield
-
675250000723 Phillips Screw K40 X 16Phillips Screw K40 X 16
-
680705004147 LH Extension PannelLH Extension Pannel
-
690705003444 Engine CoverEngine Cover
-
700705006373 Gage SupportGage Support
-
710715002783 Dash KitDash Kit
-
720705003264 GrommetGrommet
-
770293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
780293250242 Rubber CoverRubber Cover
-
820705012997 Sunburst Yellow, Front Bumber. Model YellowSunburst Yellow, Front Bumber. Model Yellow
-
820705012996 Can-Am Red, Front Bumper. Model Liquid GoldCan-Am Red, Front Bumper. Model Liquid Gold
-
822a207782044 Carriage Bolt, M8 X 20Carriage Bolt, M8 X 20
-
822b233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
822c250000535 Torx Screw M8 X 55Torx Screw M8 X 55
-
822d233281464 Elastic Flange Nut M8Elastic Flange Nut M8
-
822e705012126 Yellow, Upper Bracket. Model YellowYellow, Upper Bracket. Model Yellow
-
822e705009891 Red, Upper Bracket. Model Liquid GoldRed, Upper Bracket. Model Liquid Gold
-
825705013745 LH Radiator Support. Model YellowLH Radiator Support. Model Yellow
-
825705013741 LH Radiator Support. Model Liquid GoldLH Radiator Support. Model Liquid Gold
-
830705013001 Sunburst Yellow, Rear Bumper. Model YellowSunburst Yellow, Rear Bumper. Model Yellow
-
830705013000 Can-Am Red, Rear Bumper. Model Liquid GoldCan-Am Red, Rear Bumper. Model Liquid Gold
-
832705013746 RH Radiator Support. Model YellowRH Radiator Support. Model Yellow
-
832705013742 RH Radiator Support. Model Liquid GoldRH Radiator Support. Model Liquid Gold
-
835a250000842 Torx Screw M6 X 30 StainlessTorx Screw M6 X 30 Stainless
-
835b207762044 Carriage Bolt M6 X 20Carriage Bolt M6 X 20
-
835c233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
835d233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
835e705005094 LH BracketLH Bracket
-
835f705005095 RH BracketRH Bracket
-
870705008164 LH Rear BracketLH Rear Bracket
-
880705008165 RH Rear BracketRH Rear Bracket
-
930715001897 LH Extension PanelLH Extension Panel
-
940705004348 RH Extension PanelRH Extension Panel
-
960705006870 Heat ShieldHeat Shield
-
970705006871 Heat ShieldHeat Shield
-
995207662034 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
1005207664536 Hex. Flange Screw M6 X 45Hex. Flange Screw M6 X 45
-
1010705007948 Seat HolderSeat Holder
-
1030207562054 Flanged Hex. Screw S.GRIP M6 X 20Flanged Hex. Screw S.GRIP M6 X 20
-
1035705008438 Heat ShieldHeat Shield
-
1040708200462 Rod CapRod Cap
-
1050705006988 LH Mud Guard XmrLH Mud Guard Xmr
-
1051705006989 RH Mud Guard XmrRH Mud Guard Xmr
-
1052705003918 LH Rear MudguardLH Rear Mudguard
-
1053705003920 RH Rear MudguardRH Rear Mudguard
-
1054705004888 MudgardMudgard
-
1055705004889 MudgardMudgard
-
1056732610072 Push NutPush Nut
-
1057250000222 Slotted Hex. Screw #10Slotted Hex. Screw #10
