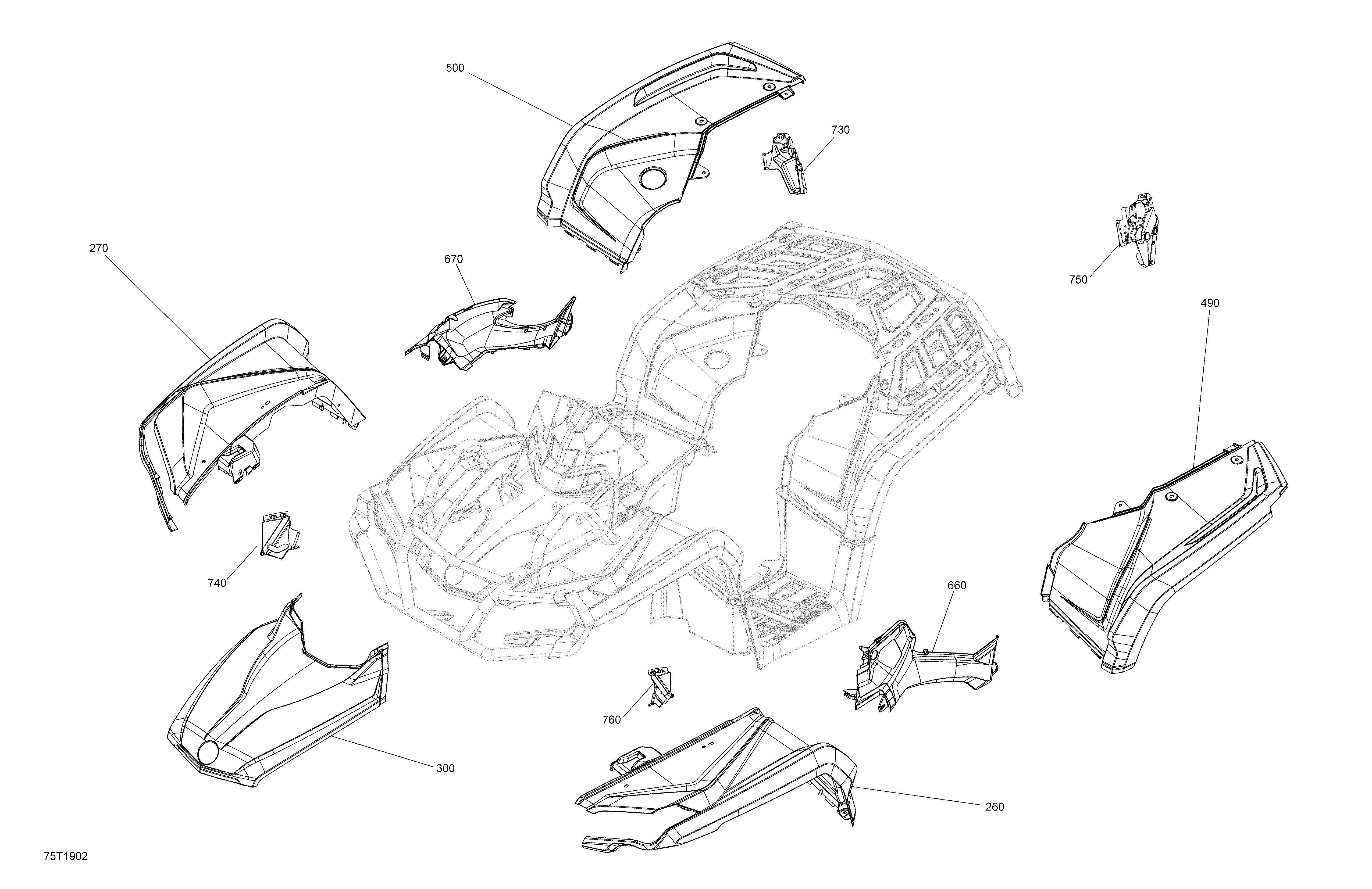

09- Fender And Central Panel Kit - Package XXC для BRP 003 - Outlander 1000R EFI - International - European Communities - 2019
-
№АртикулНазвание
-
260715005621 Timeless Black LH Front Fender. OUT&B-302&INTTimeless Black LH Front Fender. OUT&B-302&INT
-
270715005663 Timeless Black RH Front Fender. OUT&B-302&INTTimeless Black RH Front Fender. OUT&B-302&INT
-
290705004565 Lower Fender SupportLower Fender Support
-
300715005802 Black HoodBlack Hood
-
490715005732 Timeless Black LH Rear Fender. OUT&B-302&INTTimeless Black LH Rear Fender. OUT&B-302&INT
-
500715005787 Timeless Black RH Rear Fender. B-302&INTTimeless Black RH Rear Fender. B-302&INT
-
660705011920 Hyper Silver, LH PanelHyper Silver, LH Panel
-
670705011921 Hyper Silver, RH PanelHyper Silver, RH Panel
-
730705011462 RH Rear Inner FenderRH Rear Inner Fender
-
740705011463 RH Front Inner FenderRH Front Inner Fender
-
750705013111 LH Rear Inner FenderLH Rear Inner Fender
-
760705011465 LH Front Inner FenderLH Front Inner Fender
