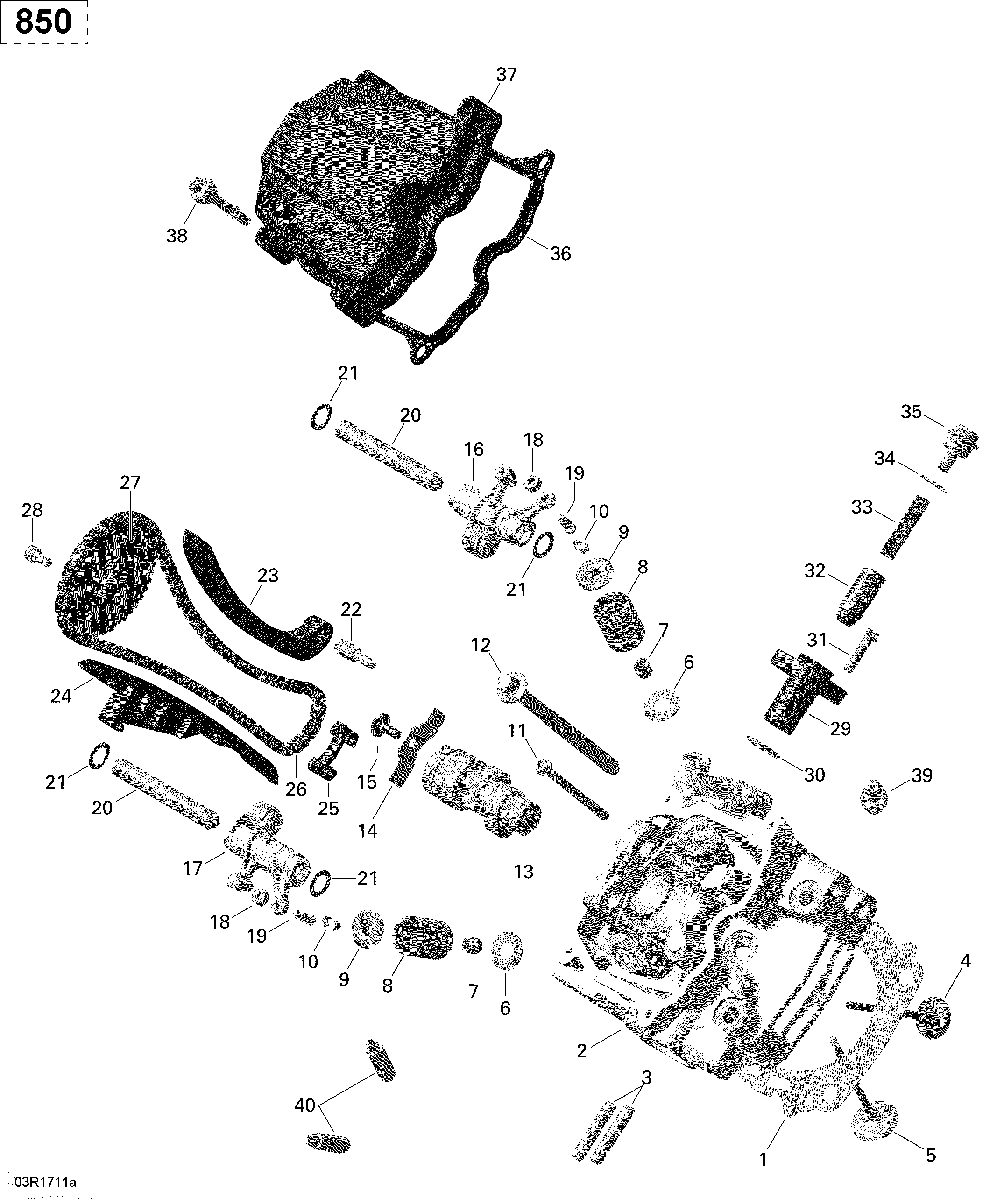

01- Cylinder Head, Front - 850 EFI для BRP 007 - Outlander MAX 850 EFI - International - 2019
-
№АртикулНазвание
-
1420450340 Cylinder Head GasketCylinder Head Gasket
-
2420413106 Cylinder Front Ass'y. Includes 2 to 3Cylinder Front Ass'y. Includes 2 to 3
-
3420941014 Stud M8 x 26Stud M8 x 26
-
4420855024 Exhaust Valve, 31 mmExhaust Valve, 31 mm
-
5420254356 Intake Valve, 36.5 mmIntake Valve, 36.5 mm
-
6420627521 Thrust WasherThrust Washer
-
7420430420 Valve Stem SealValve Stem Seal
-
8420239292 Valve SpringValve Spring
-
9420254137 Valve Spring RetainerValve Spring Retainer
-
10420254600 Cotter ValveCotter Valve
-
11420641228 Flanged Torx Screw M6 X 85Flanged Torx Screw M6 X 85
-
12420641550 Torx Screw M10 X 140Torx Screw M10 X 140
-
13420620866 CamshaftCamshaft
-
14420627743 Holding StripHolding Strip
-
15420241529 Torx Screw M6 X 16Torx Screw M6 X 16
-
16420653065 Rocker Arm InletRocker Arm Inlet
-
17420653075 Rocker Arm ExhaustRocker Arm Exhaust
-
18420242910 Hex. Nut M6Hex. Nut M6
-
19420241335 Adjustment Screw M6 X 0.75Adjustment Screw M6 X 0.75
-
20420229714 Pin #12, Small, M6 X 90Pin #12, Small, M6 X 90
-
21420944382 ShimShim
-
22420240943 Bearing Screw M6Bearing Screw M6
-
23420436255 Chain Tension GuideChain Tension Guide
-
24420236584 Chain GuideChain Guide
-
25420236351 Chain GuideChain Guide
-
26420297063 Silent ChainSilent Chain
-
27420254436 Camshaft Sprocket, 42 TeethCamshaft Sprocket, 42 Teeth
-
28420840031 Screw M6 X 12Screw M6 X 12
-
29420236510 Chain Tensioner HousingChain Tensioner Housing
-
30420430370 O-RingO-Ring
-
31420641234 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
32420236520 Chain Tensioner PlungerChain Tensioner Plunger
-
33420238120 SpringSpring
-
34420250890 O-RingO-Ring
-
35420641150 Plug ScrewPlug Screw
-
36420630260 GasketGasket
-
37420610393 Valve CoverValve Cover
-
38420440567 Hex. Distance Screw M6 X 30.5Hex. Distance Screw M6 X 30.5
-
39715900352 Spark Plug, NGK LMAR8D-JSpark Plug, NGK LMAR8D-J
-
40420254377 Valve GuideValve Guide
