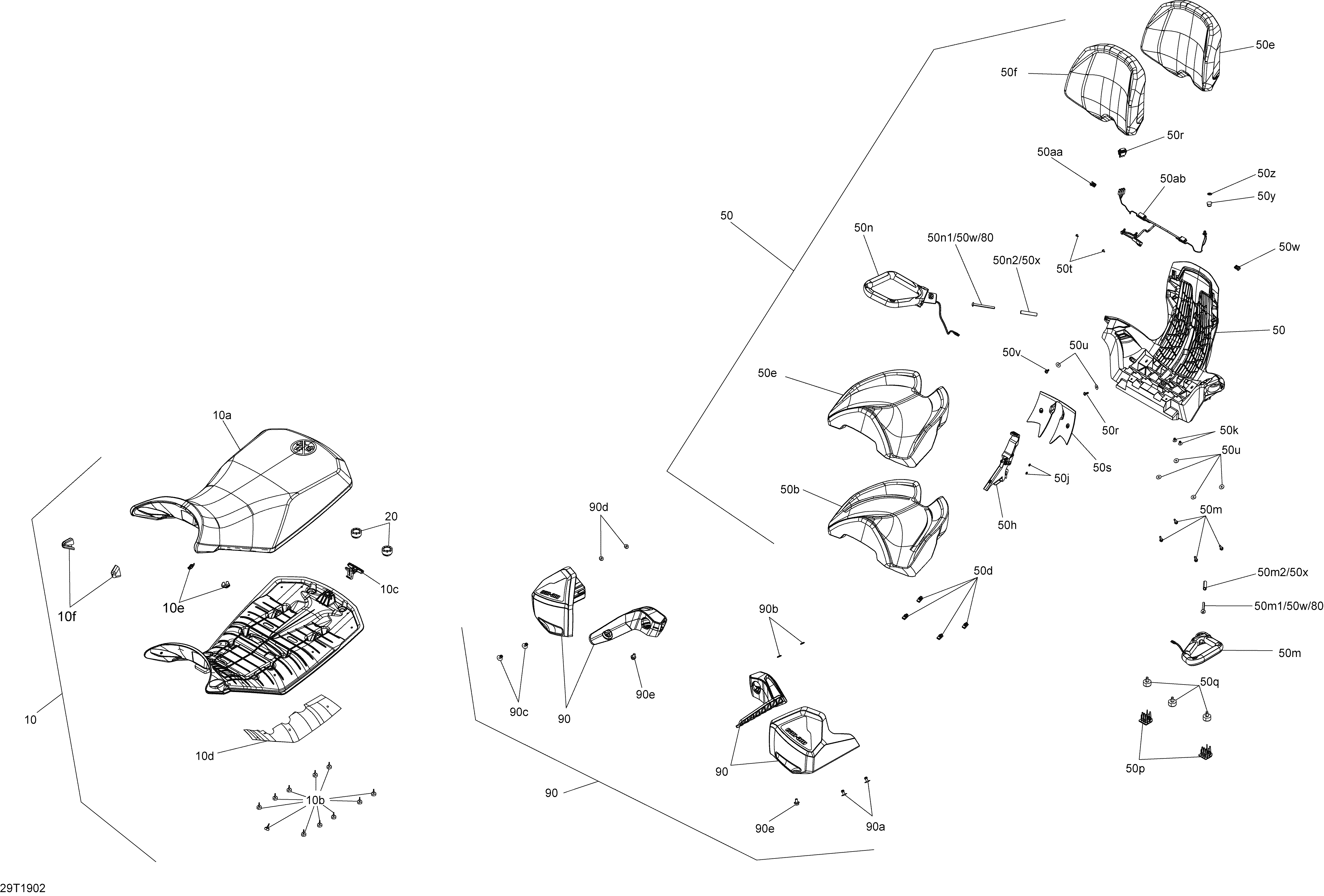

09- Seat для BRP 007 - Outlander MAX 850 EFI - International - 2019
-
№АртикулНазвание
-
10708002491 Seat Ass'y. Packages DPS, North Edition, XT & XTP. Includes 10 to 10dSeat Ass'y. Packages DPS, North Edition, XT & XTP. Includes 10 to 10d
-
10a708000724 Black Seat Cover. Packages DPS, North Edition, XT & XTPBlack Seat Cover. Packages DPS, North Edition, XT & XTP
-
10b708000759 Rubber Stopper. Packages DPS, North Edition, XT & XTPRubber Stopper. Packages DPS, North Edition, XT & XTP
-
10c708000909 Latch. Packages DPS, North Edition, XT & XTPLatch. Packages DPS, North Edition, XT & XTP
-
10d705005761 Heat Shield. Packages DPS, North Edition, XT & XTPHeat Shield. Packages DPS, North Edition, XT & XTP
-
20708000760 Bumper RubberBumper Rubber
-
50a708002574 Seat Base. Packages XTP, XT & North EditionSeat Base. Packages XTP, XT & North Edition
-
50b708002086 Seat. Packages XTP, XT & North Edition. Includes 50b to 50dSeat. Packages XTP, XT & North Edition. Includes 50b to 50d
-
50c708001581 Passenger Seat Cover. Packages XTP, XT & North EditionPassenger Seat Cover. Packages XTP, XT & North Edition
-
50d250000957 Extruded Panel Nut M6. Packages XTP, XT & North EditionExtruded Panel Nut M6. Packages XTP, XT & North Edition
-
50e708002081 Backrest. Packages XTP, XT & North Edition. Includes 50e to 50fBackrest. Packages XTP, XT & North Edition. Includes 50e to 50f
-
50f708001847 Back Rest Cover. Packages XTP, XT & North EditionBack Rest Cover. Packages XTP, XT & North Edition
-
50g207562034 Hex. Flanged Screw M6 X 20, Scotch Grip. Packages XTP, XT & North EditionHex. Flanged Screw M6 X 20, Scotch Grip. Packages XTP, XT & North Edition
-
50h708001532 Latch. Packages XTP, XT & North Edition. Includes 50h to 50jLatch. Packages XTP, XT & North Edition. Includes 50h to 50j
-
50j234051410 Flat Washer M5. Packages XTP, XT & North EditionFlat Washer M5. Packages XTP, XT & North Edition
-
50k293150108 Pop Rivet 3/16”. Packages XTP, XT & North EditionPop Rivet 3/16”. Packages XTP, XT & North Edition
-
50m703500806 LH Passenger Seat Handle Kit. Packages XTP & XT. Includes 50m to 50m2LH Passenger Seat Handle Kit. Packages XTP & XT. Includes 50m to 50m2
-
50m1250000617 Torx Screw M8 X 90. Packages XTP & XTTorx Screw M8 X 90. Packages XTP & XT
-
50m2705006129 Sleeve. Packages XTP & XTSleeve. Packages XTP & XT
-
50m715002493 RH Passenger Seat Handle. Package North Edition. Includes 50m to 50m2RH Passenger Seat Handle. Package North Edition. Includes 50m to 50m2
-
50m1250000617 Torx Screw M8 X 90. Package North EditionTorx Screw M8 X 90. Package North Edition
-
50m2705006129 Sleeve. Package North EditionSleeve. Package North Edition
-
50n703500807 RH Passenger Seat Handle Kit. Packages XTP & XT. Includes 50n to 50n2RH Passenger Seat Handle Kit. Packages XTP & XT. Includes 50n to 50n2
-
50n1250000617 Torx Screw M8 X 90. Packages XTP & XTTorx Screw M8 X 90. Packages XTP & XT
-
50n2705006129 Sleeve. Packages XTP & XTSleeve. Packages XTP & XT
-
50n715002493 RH Passenger Seat Handle. Package North Edition. Includes 50n to 50n2RH Passenger Seat Handle. Package North Edition. Includes 50n to 50n2
-
50n1250000617 Torx Screw M8 X 90. Package North EditionTorx Screw M8 X 90. Package North Edition
-
50n2705006129 Sleeve. Package North EditionSleeve. Package North Edition
-
50p708001483 Seat Support. Packages XTP, XT & North EditionSeat Support. Packages XTP, XT & North Edition
-
50q708000758 Rubber Stopper. Packages XTP, XT & North EditionRubber Stopper. Packages XTP, XT & North Edition
-
50r708001511 Insert. Packages XTP & XTInsert. Packages XTP & XT
-
50r710002900 Switch-Rocker. Package North EditionSwitch-Rocker. Package North Edition
-
50s708001512 Cap. Packages XTP, XT & North EditionCap. Packages XTP, XT & North Edition
-
50t250000577 Torx Truss K40 X 12. Packages XTP, XT & North EditionTorx Truss K40 X 12. Packages XTP, XT & North Edition
-
50u224060201 Flat Washer. Packages XTP, XT & North EditionFlat Washer. Packages XTP, XT & North Edition
-
50v250000546 Oval Head Torx Screw K60 X 16. Packages XTP, XT & North EditionOval Head Torx Screw K60 X 16. Packages XTP, XT & North Edition
-
50w250000806 Torx Truss M8 X 90. Packages XTP, XT & North EditionTorx Truss M8 X 90. Packages XTP, XT & North Edition
-
50x705009248 Sleeve. Packages XTP, XT & North EditionSleeve. Packages XTP, XT & North Edition
-
50y710003910 Pilot Lamp Cap. Packages XTP & XTPilot Lamp Cap. Packages XTP & XT
-
50y572103300 Cap. Package North EditionCap. Package North Edition
-
50z704902870 Decal. Visiere *Decal.-Visor. Package North EditionDecal. Visiere *Decal.-Visor. Package North Edition
-
50aa515175495 Female Housing, 3 Circuits. Package North EditionFemale Housing, 3 Circuits. Package North Edition
-
50ab710005933 Harness. Package North EditionHarness. Package North Edition
-
50ac710005037 Clip. Package North EditionClip. Package North Edition
-
80250000806 Torx Truss M8 X 90. Package North EditionTorx Truss M8 X 90. Package North Edition
-
90715001669 Wind Deflector. Package North Edition. Includes 90 to 90eWind Deflector. Package North Edition. Includes 90 to 90e
-
90A293150104 Pop Rivet 3/16''. Package North EditionPop Rivet 3/16''. Package North Edition
-
90b250200121 Flat Washer. Package North EditionFlat Washer. Package North Edition
-
90c293150104 Pop Rivet 3/16''. Package North EditionPop Rivet 3/16''. Package North Edition
-
90d250200121 Flat Washer. Package North EditionFlat Washer. Package North Edition
-
90e207561044 Flanged Screw M6 X 10, Scotch Grip. Package North EditionFlanged Screw M6 X 10, Scotch Grip. Package North Edition
