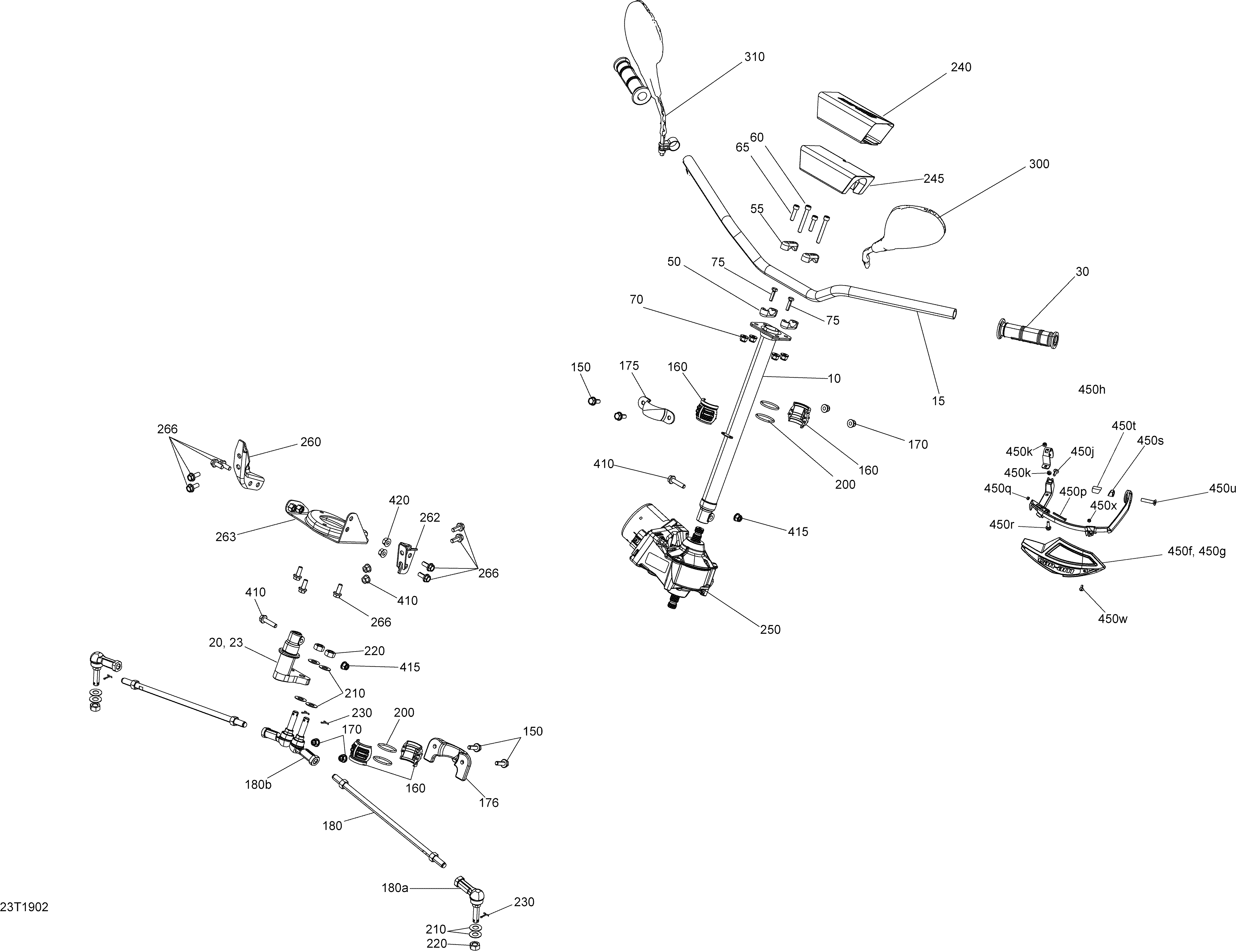

07- Steering для BRP 001 - Renegade 570 EFI - International - 2019
-
№АртикулНазвание
-
10709401008 Main Tube. Package STDMain Tube. Package STD
-
10709401750 Black Upper Main Tube. Package XMRBlack Upper Main Tube. Package XMR
-
15709401240 Black Handle Bar. Package STDBlack Handle Bar. Package STD
-
15709402063 Sunburst Yellow - Handle Bar. Package XMRSunburst Yellow - Handle Bar. Package XMR
-
23709401756 Pitman Arm. Package XMRPitman Arm. Package XMR
-
30709400493 Handle GripHandle Grip
-
37709400449 End Piece. Package STDEnd Piece. Package STD
-
50709400497 Steering Support. Package XMRSteering Support. Package XMR
-
50709401799 Steering Support. Package STDSteering Support. Package STD
-
51709400509 Stiffner. Package STDStiffner. Package STD
-
55709400496 Support. Package XMRSupport. Package XMR
-
60205086060 Socket Head Screw M8 X 60. Package STDSocket Head Screw M8 X 60. Package STD
-
60207086046 Hex. Screw M8 X 60. Package STDHex. Screw M8 X 60. Package STD
-
65205083060 Socket Screw M8 X 30. Package XMRSocket Screw M8 X 30. Package XMR
-
70233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
75207183060 Hex. Screw M8 X 30. Package XMRHex. Screw M8 X 30. Package XMR
-
150207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
160709400783 Spherical Half BushingSpherical Half Bushing
-
170233281414 Hex. Flanged Elastic Nut M8 X 1.25Hex. Flanged Elastic Nut M8 X 1.25
-
175709400827 Upper Column AttachmentUpper Column Attachment
-
176709401428 Column AttachmentColumn Attachment
-
180703501025 Tie-Rod Ass`y. Includes 180 to 180aTie-Rod Ass`y. Includes 180 to 180a
-
180a709401837 Ball Joint, LH ThreadBall Joint, LH Thread
-
185709401839 Ball Joint, RH ThreadBall Joint, RH Thread
-
200293300068 O-RingO-Ring
-
210250200086 Flat WasherFlat Washer
-
220250100099 Nut M12Nut M12
-
230211400013 Cotter PinCotter Pin
-
240709400939 Cover. Package STDCover. Package STD
-
240709402113 Cover. Package XMRCover. Package XMR
-
245709400422 Foam. Package XMRFoam. Package XMR
-
250709402230 Power Steering. Package XMRPower Steering. Package XMR
-
260709402184 Power Steering Module Bracket. Package STDPower Steering Module Bracket. Package STD
-
262709402185 Bracket Rh. Package XMRBracket Rh. Package XMR
-
263709401743 Power Steering Support. Package XMRPower Steering Support. Package XMR
-
266207582044 Hex. Flanged Screw M8 X 20, Scotch Grip. Package XMRHex. Flanged Screw M8 X 20, Scotch Grip. Package XMR
-
410250000986 Hex. Flanged Screw M8 X 35. Package XMRHex. Flanged Screw M8 X 35. Package XMR
-
415233281416 Hex. Elastic Flanged Nut M8. Package XMRHex. Elastic Flanged Nut M8. Package XMR
-
420233081416 Hex. Flanged Nut M8. Package XMRHex. Flanged Nut M8. Package XMR
-
441506152115 Strap Ass'y. Package XMR. Includes 441 to 441aStrap Ass'y. Package XMR. Includes 441 to 441a
-
442709401720 Collar Tube. Package XMRCollar Tube. Package XMR
-
443506152156 Bushing. Package XMRBushing. Package XMR
-
444207662054 Hex. Flanged Screw M6 X 20. Package XMRHex. Flanged Screw M6 X 20. Package XMR
-
445233261466 Hex. Flanged Elastic Nut M6. Package XMRHex. Flanged Elastic Nut M6. Package XMR
-
450f709402053 RH Air Deflector. Package XMRRH Air Deflector. Package XMR
-
450g709402054 LH Air Deflector. Package XMRLH Air Deflector. Package XMR
-
450h205444056 Socket Head Screw M4 X 40. Package XMRSocket Head Screw M4 X 40. Package XMR
-
450j232541414 Elastic Stop Nut M4. Package XMRElastic Stop Nut M4. Package XMR
-
450k715001378 Air Deflector Support Kit. Package XMRAir Deflector Support Kit. Package XMR
-
450m715001378 Air Deflector Support Kit. Package XMRAir Deflector Support Kit. Package XMR
-
450n715001378 Air Deflector Support Kit. Package XMRAir Deflector Support Kit. Package XMR
-
450p207662044 Hex. Flanged Screw M6 X 20. Package XMRHex. Flanged Screw M6 X 20. Package XMR
-
450q250000717 Torx Head Screw M6 X 1.0 X 16. Package XMRTorx Head Screw M6 X 1.0 X 16. Package XMR
-
450r232561600 Hex. Elastic Stop Nut M6. Package XMRHex. Elastic Stop Nut M6. Package XMR
-
450s709400161 Bracket, Small. Package XMRBracket, Small. Package XMR
-
450t709400162 Bracket, Large. Package XMRBracket, Large. Package XMR
-
450u205384034 Socket Head Screw. Package XMRSocket Head Screw. Package XMR
-
450w250000742 Torx Screw M5 X 14. Package XMRTorx Screw M5 X 14. Package XMR
-
450x232551600 Hex. Elastic Nut M5. Package XMRHex. Elastic Nut M5. Package XMR
