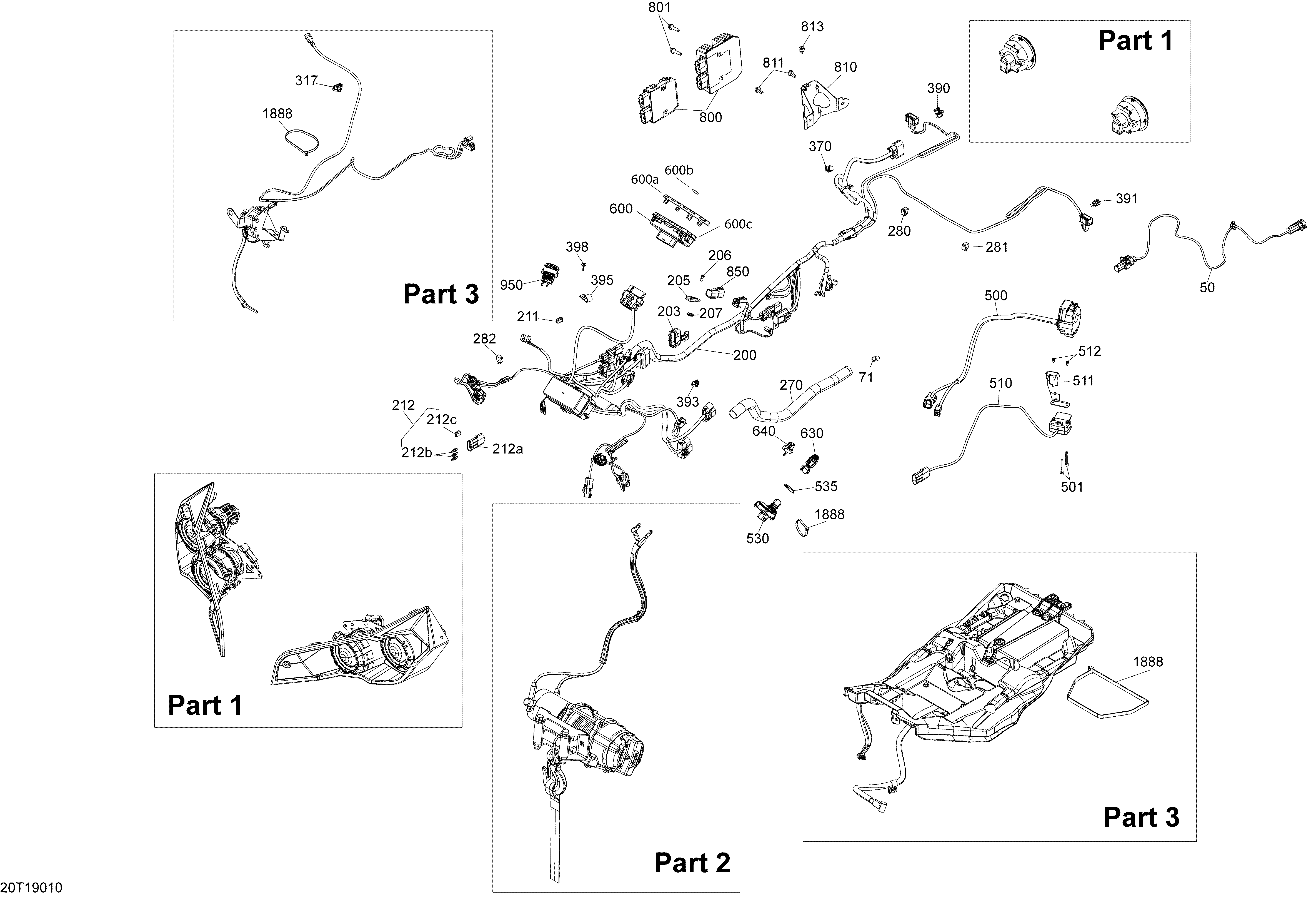

10- Electrical - 570 EFI - Main для BRP 001 - Renegade 570 EFI - International - 2019
-
№АртикулНазвание
-
200710006171 HarnessHarness
-
203710005760 DPS Connector Cap. Package STDDPS Connector Cap. Package STD
-
205270000141 ClipClip
-
206390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
207391301600 WasherWasher
-
212710000917 Connector Ass'y. Includes 212 to 212cConnector Ass'y. Includes 212 to 212c
-
212a278000281 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
212b278000216 Wire SealWire Seal
-
212c710000992 ClipClip
-
270710003260 Protective Tubing. Package XMRProtective Tubing. Package XMR
-
280414227300 ClipClip
-
281414227300 ClipClip
-
282414227300 ClipClip
-
370710002896 Tie-Rap ClipTie-Rap Clip
-
390710002896 Tie-Rap ClipTie-Rap Clip
-
391710002896 Tie-Rap ClipTie-Rap Clip
-
393710002896 Tie-Rap Clip. Package XMRTie-Rap Clip. Package XMR
-
395518321570 Open Clamp. Package XMROpen Clamp. Package XMR
-
398250000720 Torx Screw K50 X 16. Package XMRTorx Screw K50 X 16. Package XMR
-
500710005070 Multi-Function Handle. Package XMRMulti-Function Handle. Package XMR
-
500710005072 Multi-Function Handle. Package STDMulti-Function Handle. Package STD
-
501205053588 Socket Head Screw M5 X 35Socket Head Screw M5 X 35
-
530515178225 DESS Switch, RFIDDESS Switch, RFID
-
535278002963 Safety Nut (DESS Switch)Safety Nut (DESS Switch)
-
600710005553 Speedometer. Includes 600 to 600cSpeedometer. Includes 600 to 600c
-
600a710001183 Trim Ring Ass'y. Includes 600a to 600bTrim Ring Ass'y. Includes 600a to 600b
-
600b704901270 BRP Logo, 13 mmBRP Logo, 13 mm
-
600c715900265 ButtonButton
-
630710005232 Green Key RFIDGreen Key RFID
-
640710004964 Grey Key RFIDGrey Key RFID
-
800710001103 Voltage Regulator. Package STDVoltage Regulator. Package STD
-
800710005842 Voltage Regulator. Package XMRVoltage Regulator. Package XMR
-
801210262550 Hex. Flanged Forming Screw M6 X 25Hex. Flanged Forming Screw M6 X 25
-
810710002587 Rectifier SupportRectifier Support
-
811207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
813293830005 Rubber BumperRubber Bumper
-
850710004904 Connector PlugConnector Plug
-
950710001248 Outlet DCOutlet DC
