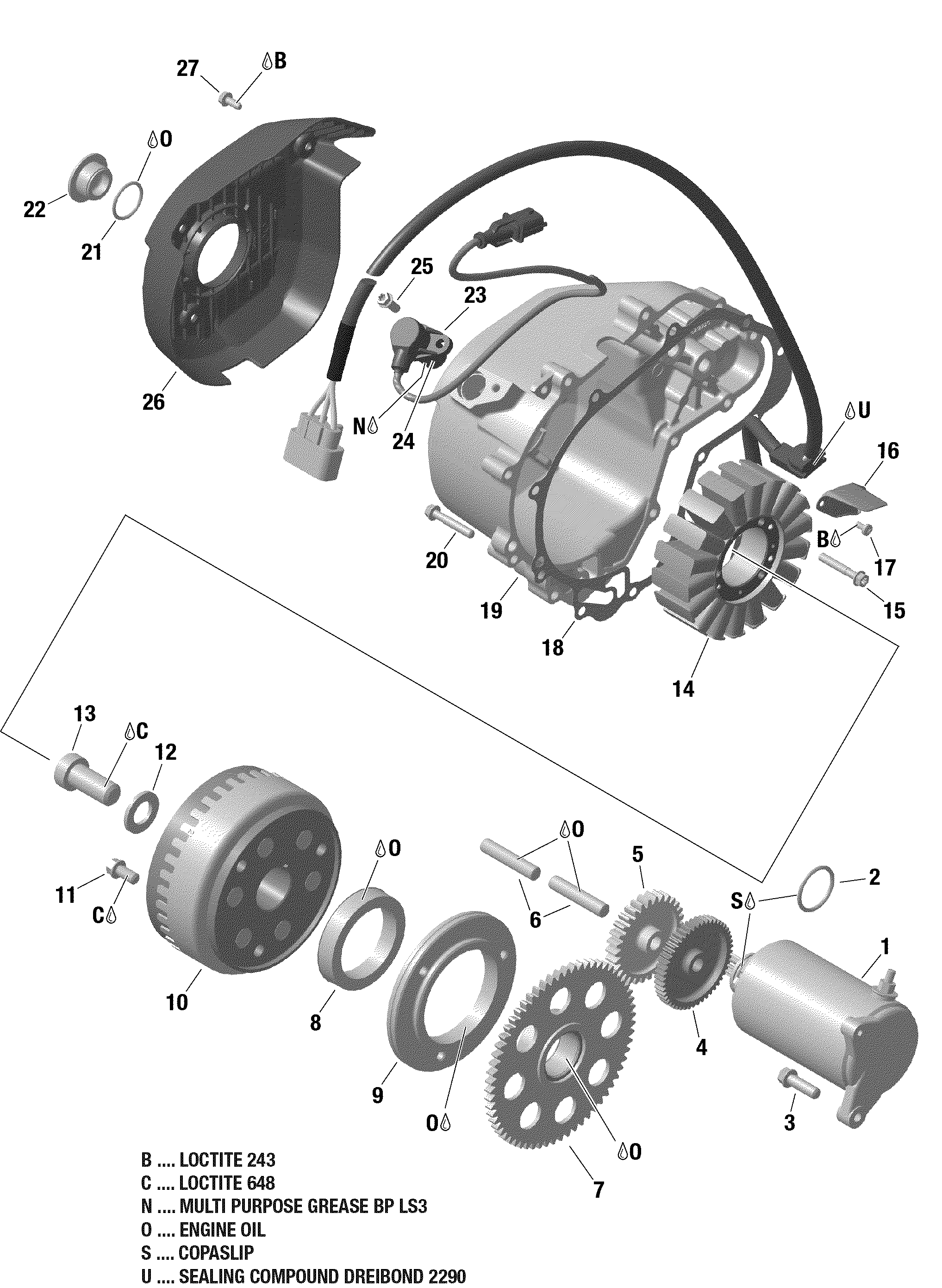

03- Magneto And Electric Starter Renegade для BRP 003 - Renegade 1000R EFI - International - European Communities - 2019
-
№АртикулНазвание
-
1>2420684562 Starter Ass'yStarter Ass'y
-
2420250140 O-RingO-Ring
-
3420440372 Flanged Torx Screw M8 X 25Flanged Torx Screw M8 X 25
-
4420634743 Double Gear 11/49Double Gear 11/49
-
5420634607 Gear 30TGear 30T
-
6420229302 Location PinLocation Pin
-
7420434235 Free Wheel Gear, 64 TeethFree Wheel Gear, 64 Teeth
-
8420659111 Sprag ClutchSprag Clutch
-
9420659261 Sprag Clutch HousingSprag Clutch Housing
-
10420296906 Flywheel, 420W. Package STDFlywheel, 420W. Package STD
-
10420685647 Flywheel, 650W. Package XXC, XMRFlywheel, 650W. Package XXC, XMR
-
11420440852 Flanged Torx Screw M8 X 16Flanged Torx Screw M8 X 16
-
12420627270 ShimShim
-
13420241549 Socket Head Screw M16 X 35Socket Head Screw M16 X 35
-
14420685920 Stator Plate, 420W. Package STDStator Plate, 420W. Package STD
-
14420685632 Stator Plate, 650W. Package XXC, XMRStator Plate, 650W. Package XXC, XMR
-
15420440274 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
16420251880 Cable Inner CoverCable Inner Cover
-
17420240195 Tapping Screw M4 X 8Tapping Screw M4 X 8
-
18420651201 GasketGasket
-
19420212223 Ignition CoverIgnition Cover
-
20420440274 Flanged Torx Screw M6 X 35Flanged Torx Screw M6 X 35
-
21420430781 O-RingO-Ring
-
22420241633 Plug Screw M24X 1.5Plug Screw M24X 1.5
-
23>24420966570 Crankshaft Position Sensor Ass'yCrankshaft Position Sensor Ass'y
-
24420431580 O-RingO-Ring
-
25420440162 Flanged Torx Screw M6 X 16Flanged Torx Screw M6 X 16
-
26420201390 CoverCover
-
27420941935 Taptite Screw M5 x 12Taptite Screw M5 x 12
