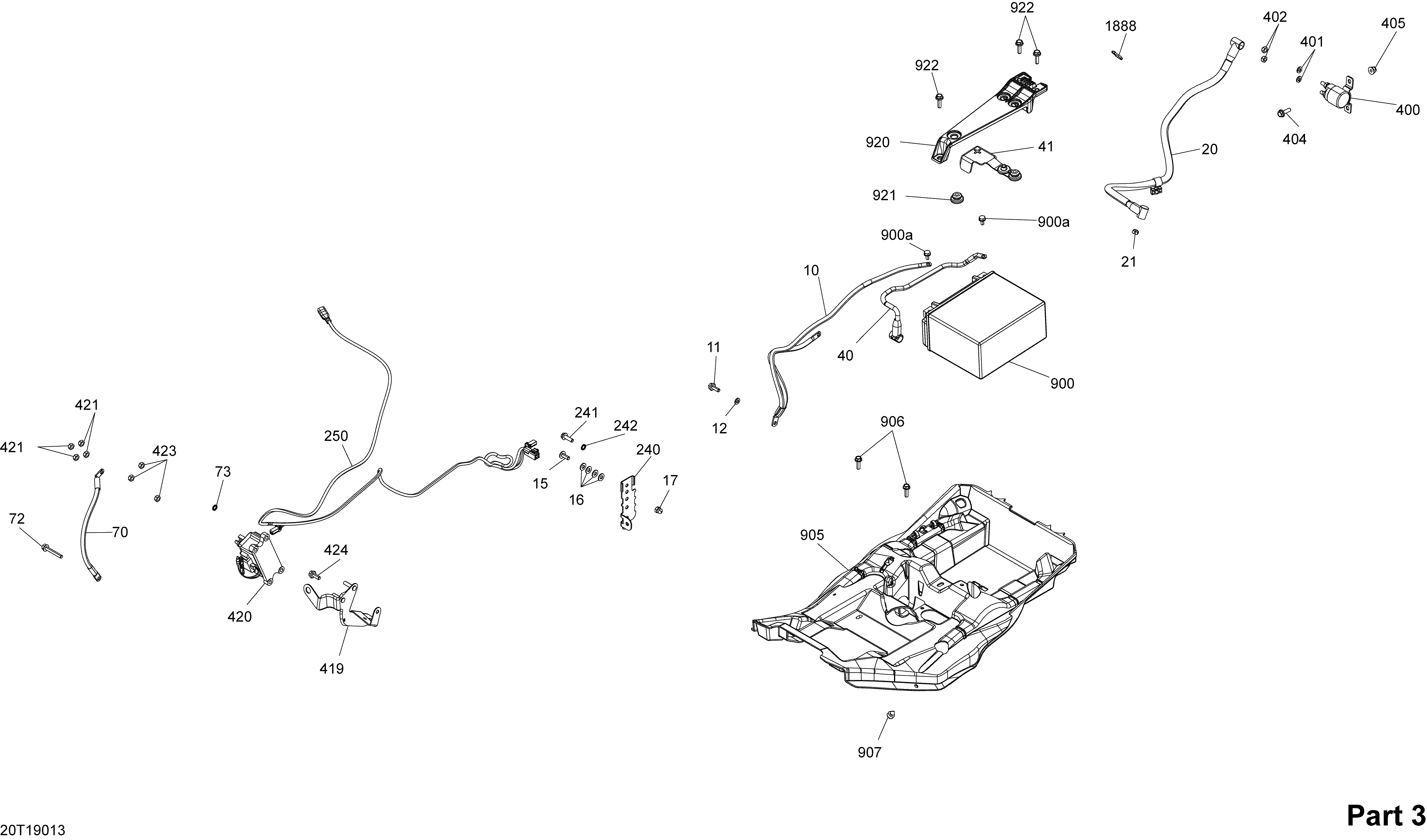

10- Electrical - 1000R EFI - Part 3 для BRP 003 - Renegade 1000R EFI - International - European Communities - 2019
-
№АртикулНазвание
-
10710004382 Ground CableGround Cable
-
11207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
12234161601 Lock Washer Helical M6Lock Washer Helical M6
-
15250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
16224061121 Flat WasherFlat Washer
-
17232361493 Domed Nut M6Domed Nut M6
-
20710004377 Positive CablePositive Cable
-
21232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
40710004375 Connector Ass'y. Package XMRConnector Ass'y. Package XMR
-
40710004376 Positive Cable. Package XXCPositive Cable. Package XXC
-
41710002569 CapCap
-
70710005163 Negative Cable. Package XMRNegative Cable. Package XMR
-
72210261640 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
73234461608 External Serrated Lock Washer 6 mm. Package XMRExternal Serrated Lock Washer 6 mm. Package XMR
-
240710004118 Connector BracketConnector Bracket
-
241210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
242234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
250710004324 Brake HarnessBrake Harness
-
400710001364 Starter RelayStarter Relay
-
401234161601 Lock Washer Helical M6Lock Washer Helical M6
-
402232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
404207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
405233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
419710004935 Module Support. Package XMRModule Support. Package XMR
-
420710001000 Winch Solenoid. Package XMRWinch Solenoid. Package XMR
-
421232561414 Elastic Stop Nut M6. Package XMRElastic Stop Nut M6. Package XMR
-
423232561414 Elastic Stop Nut M6. Package XMRElastic Stop Nut M6. Package XMR
-
424207561644 Hex.Fla. Screw M6 X 16, Scotch Grip. Package XMRHex.Fla. Screw M6 X 16, Scotch Grip. Package XMR
-
900410301203 Battery Ass'y, 18 Amperes. Includes 900 to 900aBattery Ass'y, 18 Amperes. Includes 900 to 900a
-
900a250000282 Battery Bolt KitBattery Bolt Kit
-
905710005528 Battery SupportBattery Support
-
906210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
907293830005 Rubber BumperRubber Bumper
-
920710002404 Fixation PlateFixation Plate
-
921705003666 Rubber GrommetRubber Grommet
-
922207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
