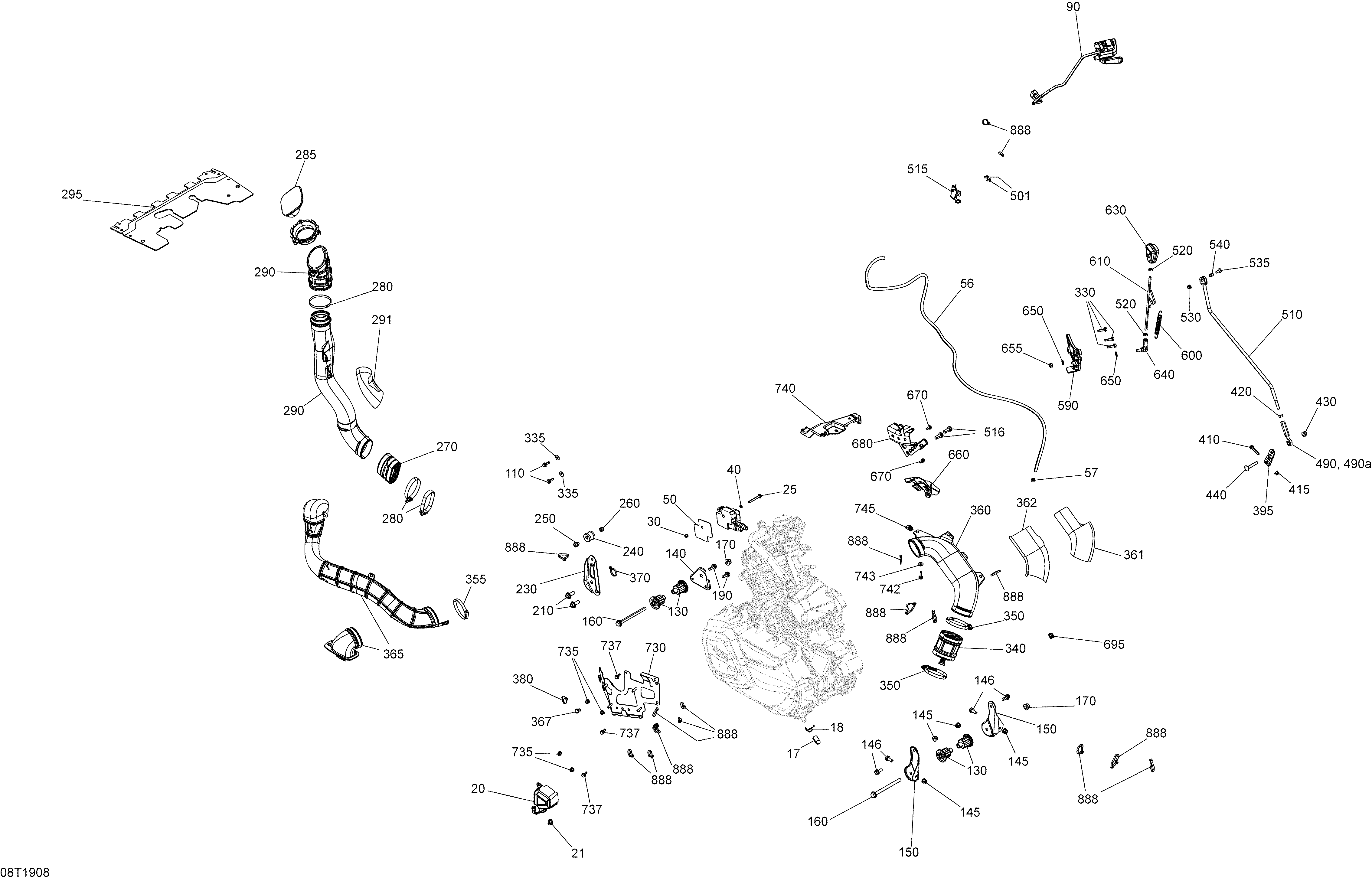

01- Engine - 1000R EFI - Except XMR для BRP 004 - Renegade 1000R EFI - International - Non European Communities - 2019
-
№АртикулНазвание
-
17707001185 PlugPlug
-
18707800506 Retainer ClipRetainer Clip
-
25207665044 Hex. Flanged Screw M6 X 50Hex. Flanged Screw M6 X 50
-
27a409902200 Tubing 25 mmTubing 25 mm
-
40234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
50710000073 Insulator PadInsulator Pad
-
56a293830193 Polyurethane HosePolyurethane Hose
-
57293650195 Clamp, OetikerClamp, Oetiker
-
90707002272 Throttle HandleThrottle Handle
-
110207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
130707001169 DamperDamper
-
140707000761 RH Front Engine BracketRH Front Engine Bracket
-
145233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
146207682046 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
150707001193 LH Rear Engine BracketLH Rear Engine Bracket
-
155707001194 RH Rear Engine BracketRH Rear Engine Bracket
-
160230602546 Hex. Flanged Screw M10 X 125Hex. Flanged Screw M10 X 125
-
170233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
190207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
210207602544 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
230707000781 Upper Engine Bracket, BlackUpper Engine Bracket, Black
-
240707000949 Rubber IsolatorRubber Isolator
-
250207581046 Flanged Screw M8 x 10, Scotch GripFlanged Screw M8 x 10, Scotch Grip
-
260232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
270707001467 Flexible AdaptorFlexible Adaptor
-
280293650091 Norma ClampNorma Clamp
-
285707001786 CVT FilterCVT Filter
-
290707002073 CVT Air InletCVT Air Inlet
-
291707001654 Heat ShieldHeat Shield
-
295707001041 Upper Water DeflectorUpper Water Deflector
-
310293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
330250000949 Screw PT K60 X 30Screw PT K60 X 30
-
331207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
332293900128 BushingBushing
-
335234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
340707001168 CVT Air Outlet AdaptorCVT Air Outlet Adaptor
-
350293650118 Norma Gear ClampNorma Gear Clamp
-
360706600019 Air OutletAir Outlet
-
361707001205 Heat ShieldHeat Shield
-
362707001206 Heat ShieldHeat Shield
-
365706600024 Air OutletAir Outlet
-
370414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
395707000911 LeverLever
-
410207663544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
415233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
420250100144 Hex. Nut M8, Filets GAHex. Nut M8, Filets GA
-
430233281414 Hex. Flanged Elastic Nut M8 X 1.25Hex. Flanged Elastic Nut M8 X 1.25
-
440207783044 Carriage Bolt M8 X 30Carriage Bolt M8 X 30
-
490707000966 Ball Joint Ass'y. Includes 490 to 490aBall Joint Ass'y. Includes 490 to 490a
-
490a232180600 Hex. Jam Nut M8Hex. Jam Nut M8
-
501205951046 Socket Head Screw M5 X 10Socket Head Screw M5 X 10
-
505707000667 Cover LockCover Lock
-
510707002246 Shifter RodShifter Rod
-
515707002247 Fixing PlateFixing Plate
-
516205402556 Screw Socket M10 X 25Screw Socket M10 X 25
-
517250000750 Torx Screw M4 X 16Torx Screw M4 X 16
-
518250100143 Extruded Panel Nut M4 X 0.7Extruded Panel Nut M4 X 0.7
-
520232180600 Hex. Jam Nut M8Hex. Jam Nut M8
-
530233161414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
535250000446 Torx Screw M6 X 20, Scotch GripTorx Screw M6 X 20, Scotch Grip
-
540293900019 BushingBushing
-
590707000971 Shift Arm BaseShift Arm Base
-
600707000577 SpringSpring
-
610707000840 Shift ArmShift Arm
-
630707000965 Lever ButtonLever Button
-
640707001959 RH Ball JointRH Ball Joint
-
650506151252 WasherWasher
-
655232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
660707000410 Cover OPSCover OPS
-
670210261250 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
680707001955 Upper Cable SupportUpper Cable Support
-
695710002896 Tie-Rap ClipTie-Rap Clip
-
740707001262 Air Outlet SupportAir Outlet Support
-
742207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
743234062410 Flat Washer 6 mmFlat Washer 6 mm
-
745250000957 Extruded Panel Nut M6Extruded Panel Nut M6
