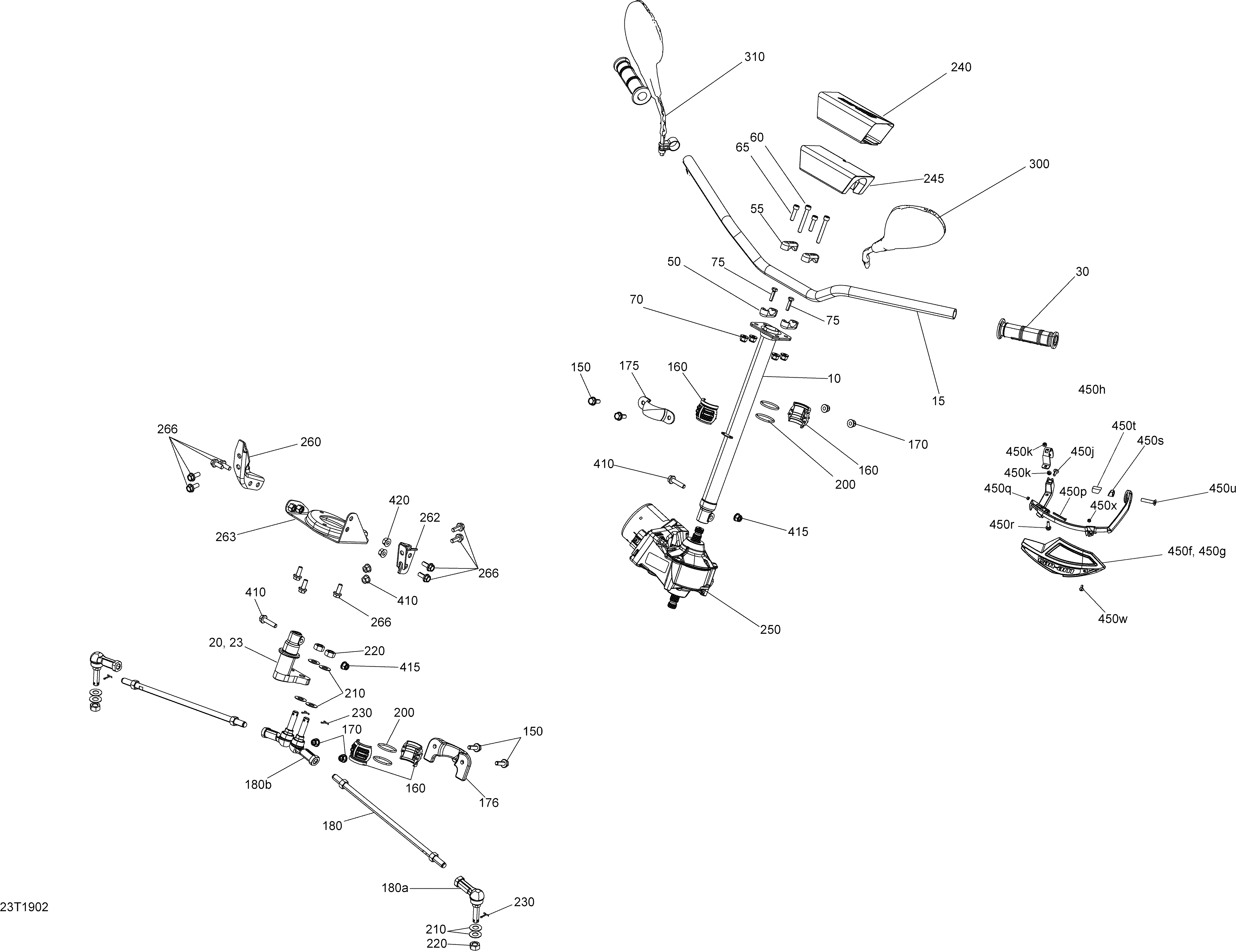

07- Steering для BRP 004 - Renegade 1000R EFI - International - Non European Communities - 2019
-
№АртикулНазвание
-
10709401008 Main Tube. Package STDMain Tube. Package STD
-
10709401750 Black Upper Main Tube. Except Package STDBlack Upper Main Tube. Except Package STD
-
15709400513 Aluminum Handle Bar. Package XXC Timeless BlackAluminum Handle Bar. Package XXC Timeless Black
-
15709402063 Sunburst Yellow - Handle Bar. Package XXC Deep BlackSunburst Yellow - Handle Bar. Package XXC Deep Black
-
15709401240 Black Handle Bar. Package STDBlack Handle Bar. Package STD
-
15709401643 Red Handle Bar. Package XMR Liquid Gold. Includes 15 to 15aRed Handle Bar. Package XMR Liquid Gold. Includes 15 to 15a
-
15a709400513 Aluminum Handle Bar. Package XMR Liquid GoldAluminum Handle Bar. Package XMR Liquid Gold
-
15709402063 Sunburst Yellow - Handle Bar. Package XMR Carbon BlackSunburst Yellow - Handle Bar. Package XMR Carbon Black
-
20709401748 Pitman Arm. Package XXCPitman Arm. Package XXC
-
23709401756 Pitman Arm. Package XMRPitman Arm. Package XMR
-
30709400493 Handle GripHandle Grip
-
37709400449 End Piece. Package STDEnd Piece. Package STD
-
50709400497 Steering Support. Except Package STDSteering Support. Except Package STD
-
50709401799 Steering Support. Package STDSteering Support. Package STD
-
51709400509 Stiffner. Package STDStiffner. Package STD
-
55709400496 Support. Except Package STDSupport. Except Package STD
-
60205086060 Socket Head Screw M8 X 60. Except Package STDSocket Head Screw M8 X 60. Except Package STD
-
60207086046 Hex. Screw M8 X 60. Package STDHex. Screw M8 X 60. Package STD
-
65205083060 Socket Screw M8 X 30. Except Package STDSocket Screw M8 X 30. Except Package STD
-
70233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
75207183060 Hex. Screw M8 X 30. Except Package STDHex. Screw M8 X 30. Except Package STD
-
150207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
160709400783 Spherical Half BushingSpherical Half Bushing
-
170233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
175709400827 Upper Column AttachmentUpper Column Attachment
-
176709401428 Column AttachmentColumn Attachment
-
180703501025 Tie-Rod Ass`y. Includes 180 to 180aTie-Rod Ass`y. Includes 180 to 180a
-
180a709401837 Ball Joint, LH ThreadBall Joint, LH Thread
-
185709401839 Ball Joint, RH ThreadBall Joint, RH Thread
-
200293300068 O-RingO-Ring
-
210250200086 Flat WasherFlat Washer
-
220250100099 Nut M12Nut M12
-
230211400013 Cotter PinCotter Pin
-
240709400939 Cover. Package STDCover. Package STD
-
240709402111 Cover. Package XXC Timeless BlackCover. Package XXC Timeless Black
-
240709402112 Cover. Package XMR Liquid GoldCover. Package XMR Liquid Gold
-
240709402113 Cover. Package XMR Black/YellowCover. Package XMR Black/Yellow
-
240709402113 Cover. Deep BlackCover. Deep Black
-
245709400422 Foam. Except Package STDFoam. Except Package STD
-
250709402230 Power Steering. Except Package STDPower Steering. Except Package STD
-
260709402184 LH Power Steering Bracket. Package STDLH Power Steering Bracket. Package STD
-
262709402185 Bracket Rh. Except Package STDBracket Rh. Except Package STD
-
263709401743 Power Steering Support. Except Package STDPower Steering Support. Except Package STD
-
266207582044 Hex. Flanged Screw M8 X 20, Scotch Grip. Except Package STDHex. Flanged Screw M8 X 20, Scotch Grip. Except Package STD
-
410250000986 Hex. Flanged Screw M8 X 35. Except Package STDHex. Flanged Screw M8 X 35. Except Package STD
-
415233281416 Hex. Elastic Flanged Nut M8. Except Package STDHex. Elastic Flanged Nut M8. Except Package STD
-
420233081416 Hex. Flanged Nut M8. Except Package STDHex. Flanged Nut M8. Except Package STD
-
441506152115 Strap Ass'y. Package XMR. Includes 441 to 441aStrap Ass'y. Package XMR. Includes 441 to 441a
-
442709401720 Collar Tube. Package XMRCollar Tube. Package XMR
-
443506152156 Bushing. Package XMRBushing. Package XMR
-
444207662054 Hex. Flanged Screw M6 X 20. Package XMRHex. Flanged Screw M6 X 20. Package XMR
-
445233261466 Hex. Flanged Elastic Nut M6. Package XMRHex. Flanged Elastic Nut M6. Package XMR
-
450715003811 Deflector Kit. Package XMR Liquid Gold. Includes 450 to 450rDeflector Kit. Package XMR Liquid Gold. Includes 450 to 450r
-
450f709401303 RH Air Deflector. Package XXC Timeless BlackRH Air Deflector. Package XXC Timeless Black
-
450f709401667 Red RH Deflector. Package XMR Liquid GoldRed RH Deflector. Package XMR Liquid Gold
-
450f709402053 RH Air Deflector. Package XXC Deep BlackRH Air Deflector. Package XXC Deep Black
-
450f709402053 RH Air Deflector. Package XMR Black/YellowRH Air Deflector. Package XMR Black/Yellow
-
450g709401304 LH Air Deflector. Package XXC Timeless BlackLH Air Deflector. Package XXC Timeless Black
-
450g709401668 Red LH Deflector. Package XMR Liquid GoldRed LH Deflector. Package XMR Liquid Gold
-
450g709402054 LH Air Deflector. Package XXC Deep BlackLH Air Deflector. Package XXC Deep Black
-
450g709402054 LH Air Deflector. Package XMR Black/YellowLH Air Deflector. Package XMR Black/Yellow
-
450h205444056 Socket Head Screw M4 X 40. Packages XXC & XMRSocket Head Screw M4 X 40. Packages XXC & XMR
-
450j232541414 Elastic Stop Nut M4. Packages XXC & XMRElastic Stop Nut M4. Packages XXC & XMR
-
450k715001378 Air Deflector Support Kit. Packages XXC & XMRAir Deflector Support Kit. Packages XXC & XMR
-
450m715001378 Air Deflector Support Kit. Packages XXC & XMRAir Deflector Support Kit. Packages XXC & XMR
-
450n715001378 Air Deflector Support Kit. Packages XXC & XMRAir Deflector Support Kit. Packages XXC & XMR
-
450p207662044 Hex. Flanged Screw M6 X 20. Packages XXC & XMRHex. Flanged Screw M6 X 20. Packages XXC & XMR
-
450q250000717 Torx Head Screw M6 X 16. Packages XXC & XMRTorx Head Screw M6 X 16. Packages XXC & XMR
-
450r232561600 Hex. Elastic Stop Nut M6. Packages XXC & XMRHex. Elastic Stop Nut M6. Packages XXC & XMR
-
450s709400161 Bracket, Small. Packages XXC & XMRBracket, Small. Packages XXC & XMR
-
450t709400162 Bracket, Large. Packages XXC & XMRBracket, Large. Packages XXC & XMR
-
450u205384034 Socket Head Screw. Packages XXC & XMRSocket Head Screw. Packages XXC & XMR
-
450w250000742 Torx Screw M5 X 14. Packages XXC & XMRTorx Screw M5 X 14. Packages XXC & XMR
-
450x232551600 Hex. Elastic Nut M5. Packages XXC & XMRHex. Elastic Nut M5. Packages XXC & XMR
