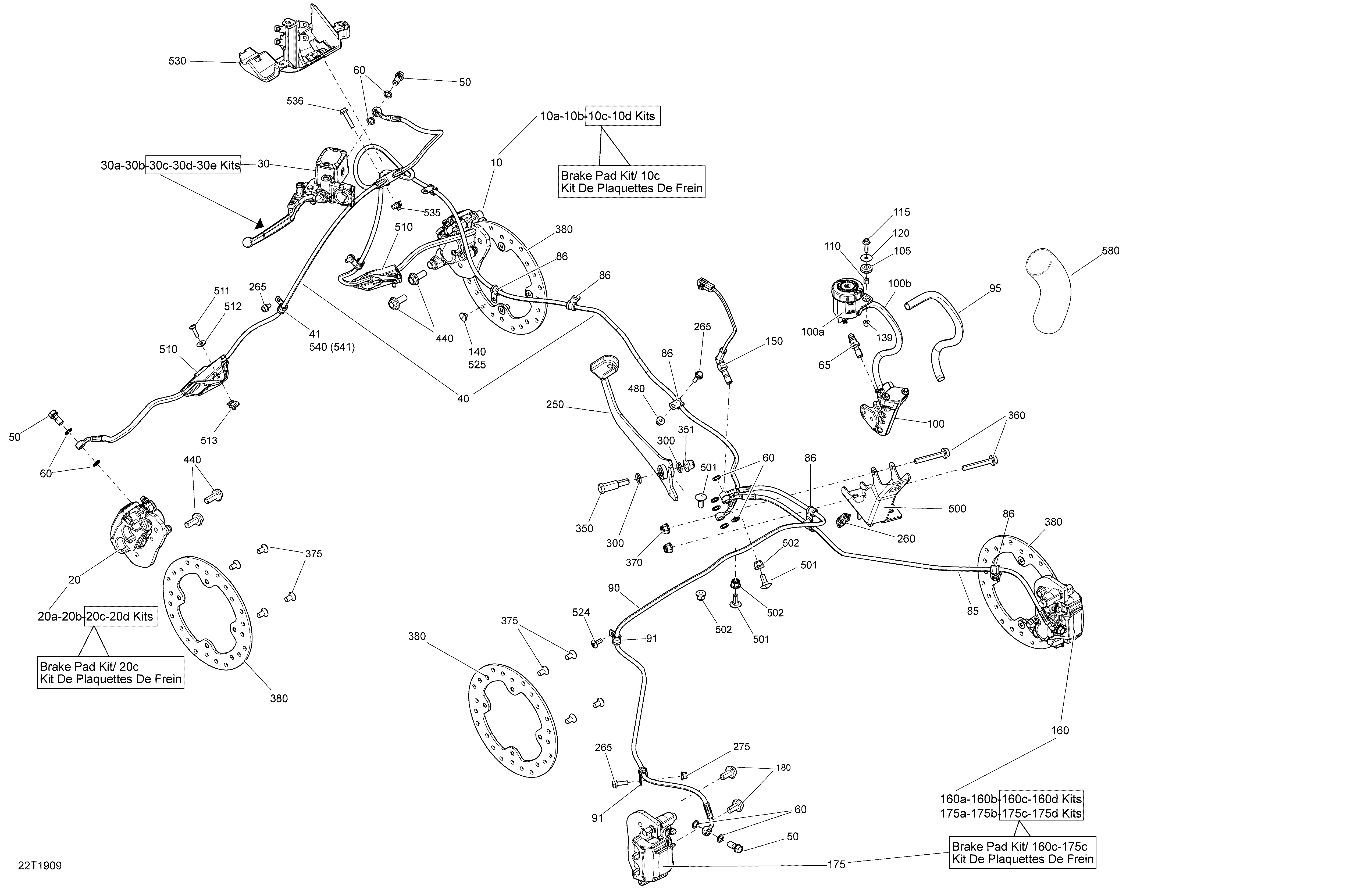

06- Brakes 6X6 - 450 EFI для BRP 004 - Outlander MAX 6X6 - 450 EFI - T3 - 2019
-
№АртикулНазвание
-
10705600861 RH Front Caliper Ass'y. Includes 10 to 10dRH Front Caliper Ass'y. Includes 10 to 10d
-
10a705601014 RH Brake Pad KitRH Brake Pad Kit
-
10b705601016 Pin SetPin Set
-
10c705601017 Bleeding ScrewBleeding Screw
-
10d705601018 SpringSpring
-
20705600862 LH Front Caliper Ass'y. Includes 20 to 20eLH Front Caliper Ass'y. Includes 20 to 20e
-
20b705601016 Pin SetPin Set
-
20c705601017 Bleeding ScrewBleeding Screw
-
20d705601018 SpringSpring
-
20e705601015 LH Brake Pad KitLH Brake Pad Kit
-
30705601430 LH Front Master Cylinder. Includes 30 to 30eLH Front Master Cylinder. Includes 30 to 30e
-
30a705601013 Lever SetLever Set
-
30b507032477 Clamp And Screw Kit. Includes 30b to 30cClamp And Screw Kit. Includes 30b to 30c
-
30c250000447 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
30d219800096 Cap Set. Includes 30d to 30eCap Set. Includes 30d to 30e
-
30e415129356 Screw M4 X 20Screw M4 X 20
-
40705601524 Front Hose. Includes 40 to 40aFront Hose. Includes 40 to 40a
-
40a715900250 Hose ClipHose Clip
-
50705600609 Banjo Bolt (M10 x 1.25 thread)Banjo Bolt (M10 x 1.25 thread)
-
60705601628 Copper WasherCopper Washer
-
65705601051 Bleeding ScrewBleeding Screw
-
85705601324 RH Rear Hose. Includes 85 to 85aRH Rear Hose. Includes 85 to 85a
-
85a715900250 Hose ClipHose Clip
-
90705601556 LH Rear Brake Line. Includes 90 to 90aLH Rear Brake Line. Includes 90 to 90a
-
90A705600459 ClampClamp
-
95a415079900 Tubing 10 mmTubing 10 mm
-
100705601274 Rear Master Cylinder Ass'y. Includes 100 to 100bRear Master Cylinder Ass'y. Includes 100 to 100b
-
100a705601020 Oil TankOil Tank
-
100b705601019 Housing Oil HoseHousing Oil Hose
-
105414036300 GrommetGrommet
-
110293900112 BushingBushing
-
115207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
120224060201 Flat WasherFlat Washer
-
139210261640 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
140390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
150705601251 Brake SwitchBrake Switch
-
160705600859 RH Rear Caliper Ass'y. Includes 160 to 160dRH Rear Caliper Ass'y. Includes 160 to 160d
-
160a705601016 Pin SetPin Set
-
160b705601017 Bleeding ScrewBleeding Screw
-
160c705601018 SpringSpring
-
160d705601014 RH Brake Pad KitRH Brake Pad Kit
-
175705600860 LH Rear Caliper Ass'y. Includes 175 to 175dLH Rear Caliper Ass'y. Includes 175 to 175d
-
175a705601016 Pin SetPin Set
-
175b705601017 Bleeding ScrewBleeding Screw
-
175c705601018 SpringSpring
-
175d705601015 LH Brake Pad KitLH Brake Pad Kit
-
180207502046 Hex. Flanged Screw M10 X 20Hex. Flanged Screw M10 X 20
-
250705601155 Brake PedalBrake Pedal
-
260705600792 Brake Pedal SpringBrake Pedal Spring
-
265207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
275233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
300293300144 O-RingO-Ring
-
350250000513 Shoulder Screw M10Shoulder Screw M10
-
351233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
360207685544 Hex. Flanged Screw M8 X 55Hex. Flanged Screw M8 X 55
-
370233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
375235381646 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
380705600999 Disc BrakeDisc Brake
-
440207502546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
480233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
500705202000 Bracket Brake PedalBracket Brake Pedal
-
501207782044 Carriage Bolt, M8 X 20Carriage Bolt, M8 X 20
-
502233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
510705600962 Front Hose ProtectorFront Hose Protector
-
511250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
512250200025 Washer M5Washer M5
-
513250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
524250000755 Torx Screw M6 X 16Torx Screw M6 X 16
-
525390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
530705600983 Front Hose BracketFront Hose Bracket
-
535250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
536207563044 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
540518321570 Open ClampOpen Clamp
-
541390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
580409902200 Tubing 25 mmTubing 25 mm
