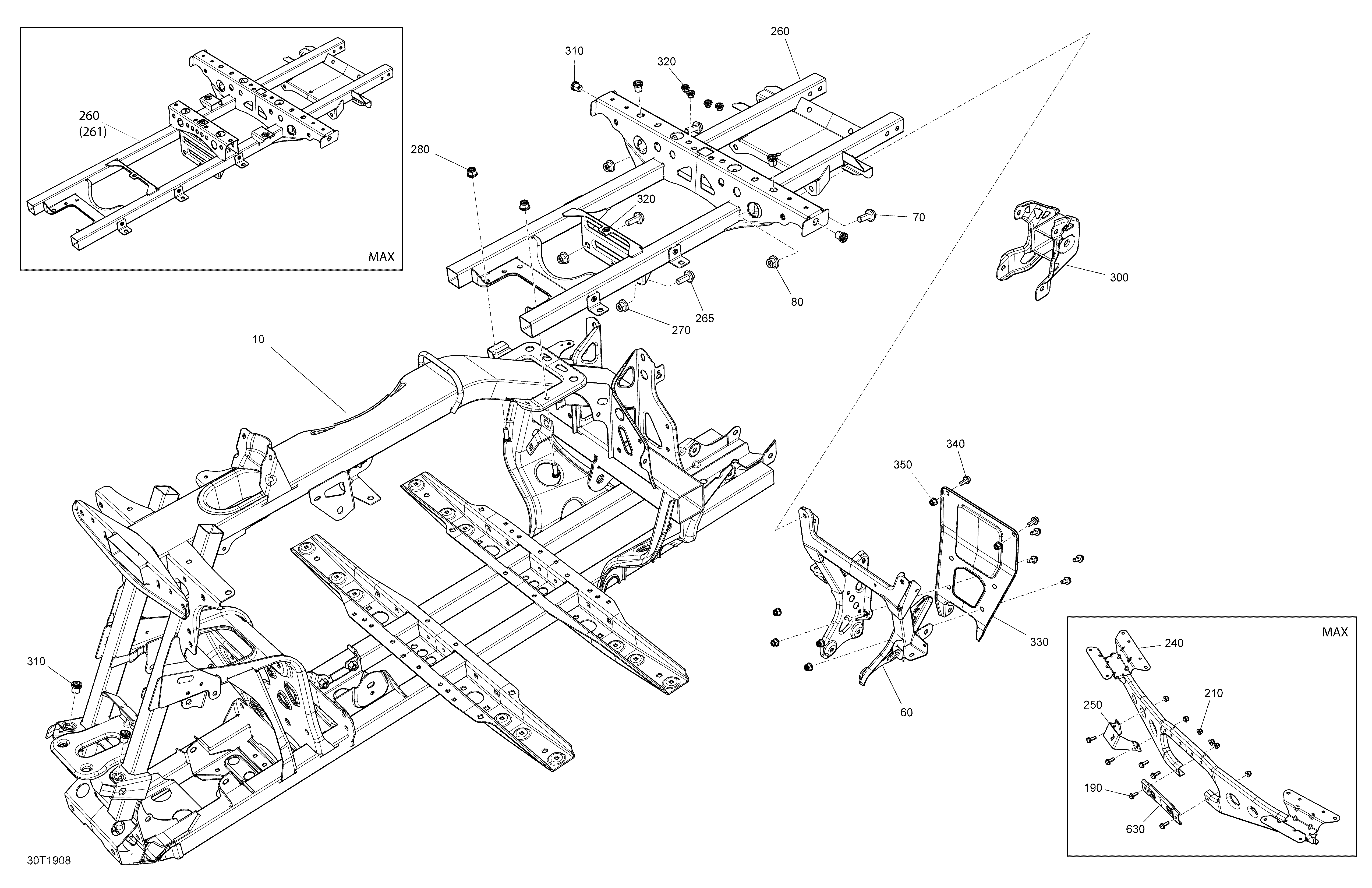

09- Frame Outlander MAX 6X6 - 450 EFI - Front Parts для BRP 004 - Outlander MAX 6X6 - 450 EFI - T3 - 2019
-
№АртикулНазвание
-
10705207328 Black, FrameBlack, Frame
-
60705203387 Black Rear SupportBlack Rear Support
-
70207602546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
80233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
190207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
210233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
240705202947 Footrest SupportFootrest Support
-
250705203874 Master Cylinder BracketMaster Cylinder Bracket
-
260705203427 Black Frame ExtensionBlack Frame Extension
-
261293450232 Insert M6 X 1.0Insert M6 X 1.0
-
265207602546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
270233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
280233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
300705207080 Trailer HitchTrailer Hitch
-
310293450307 Insert, Half Hex Body M8 x 1.25Insert, Half Hex Body M8 x 1.25
-
320250100199 Insert, Half Hex Body M6 x 1.0Insert, Half Hex Body M6 x 1.0
-
330705203541 Rear SupportRear Support
-
340207682046 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
350233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
630705202645 Attach SupportAttach Support
