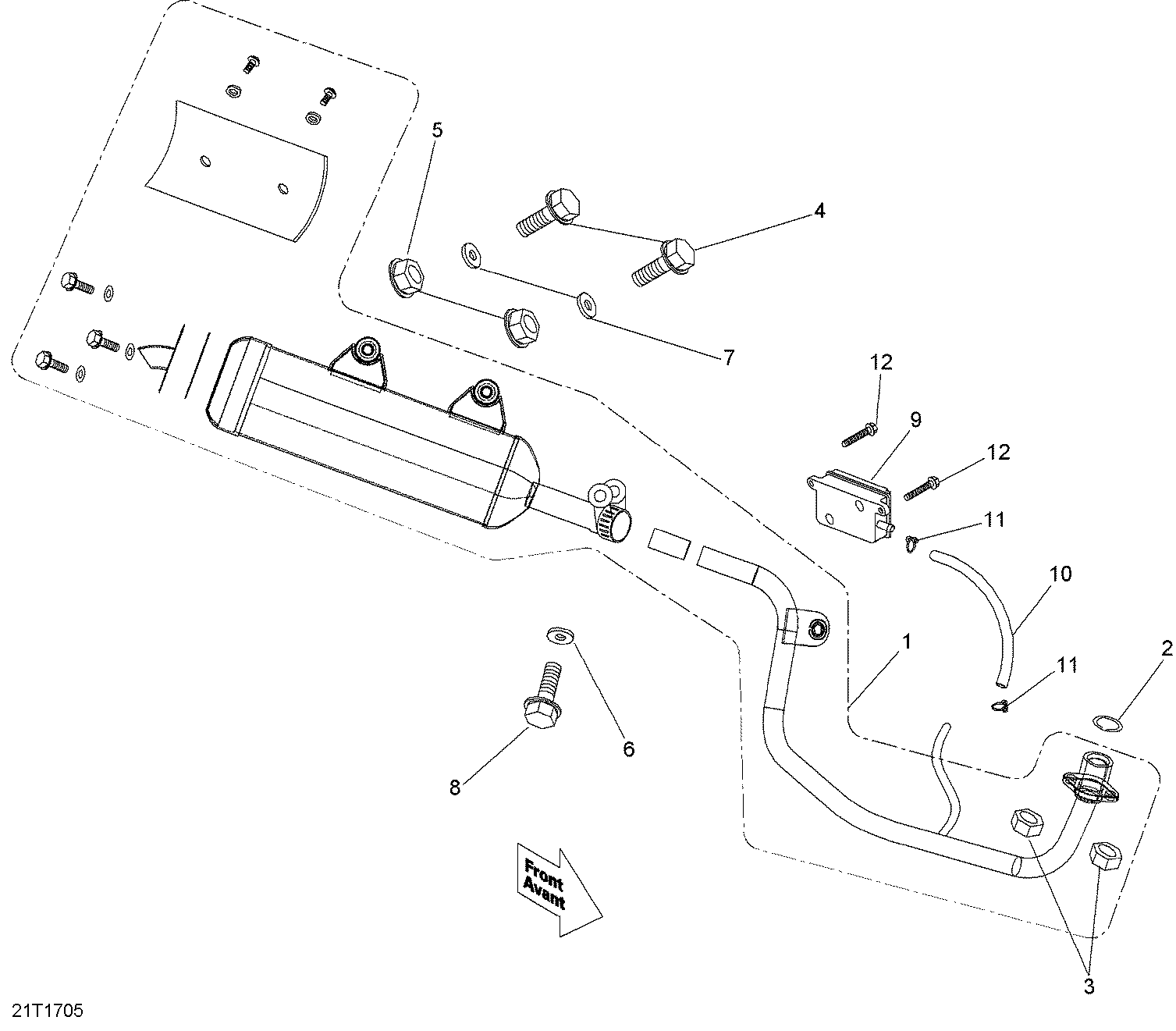

01- Exhaust System для BRP 2- DS 90 - 2019
-
№АртикулНазвание
-
1V18301DGF110LL MufflerMuffler
-
2V18291MAD000 Exhaust Pipe GasketExhaust Pipe Gasket
-
3V9400106000LL Nut M6Nut M6
-
4207683544 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
5232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
6234181601 Lock Washer 8 mm, StainlessLock Washer 8 mm, Stainless
-
7V941010816015L WasherWasher
-
8207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
9V18350DGF02H Air Cleaner BoxAir Cleaner Box
-
10V18401DGF02H Air HoseAir Hose
-
11V0940115101 ClipClip
-
12207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
