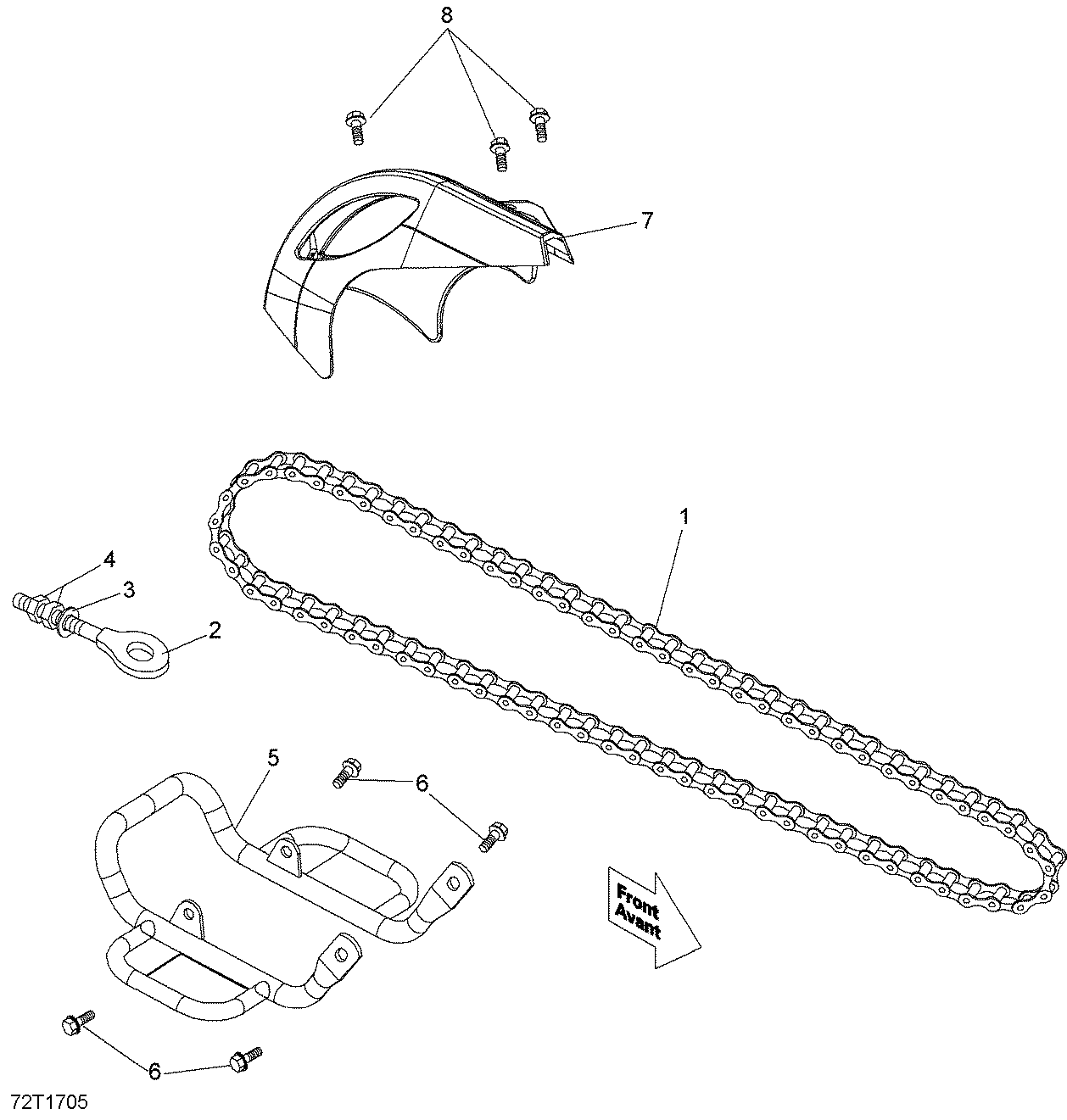

08- Chain для BRP 2- DS 90 - 2019
-
№АртикулНазвание
-
1V14428MAA020LL ChaineChaine
-
2V50205DGF010LL Chain AdjusterChain Adjuster
-
3V941010816015L WasherWasher
-
4V940010800001L Hexagonal Nut M8Hexagonal Nut M8
-
5V50240DGF030BK Chain ProtectChain Protect
-
6V9600008016 Hex. Flanged ScrewHex. Flanged Screw
-
7V83750DGF020 Chain CoverChain Cover
-
8V930000601201LL Round Head ScrewRound Head Screw
