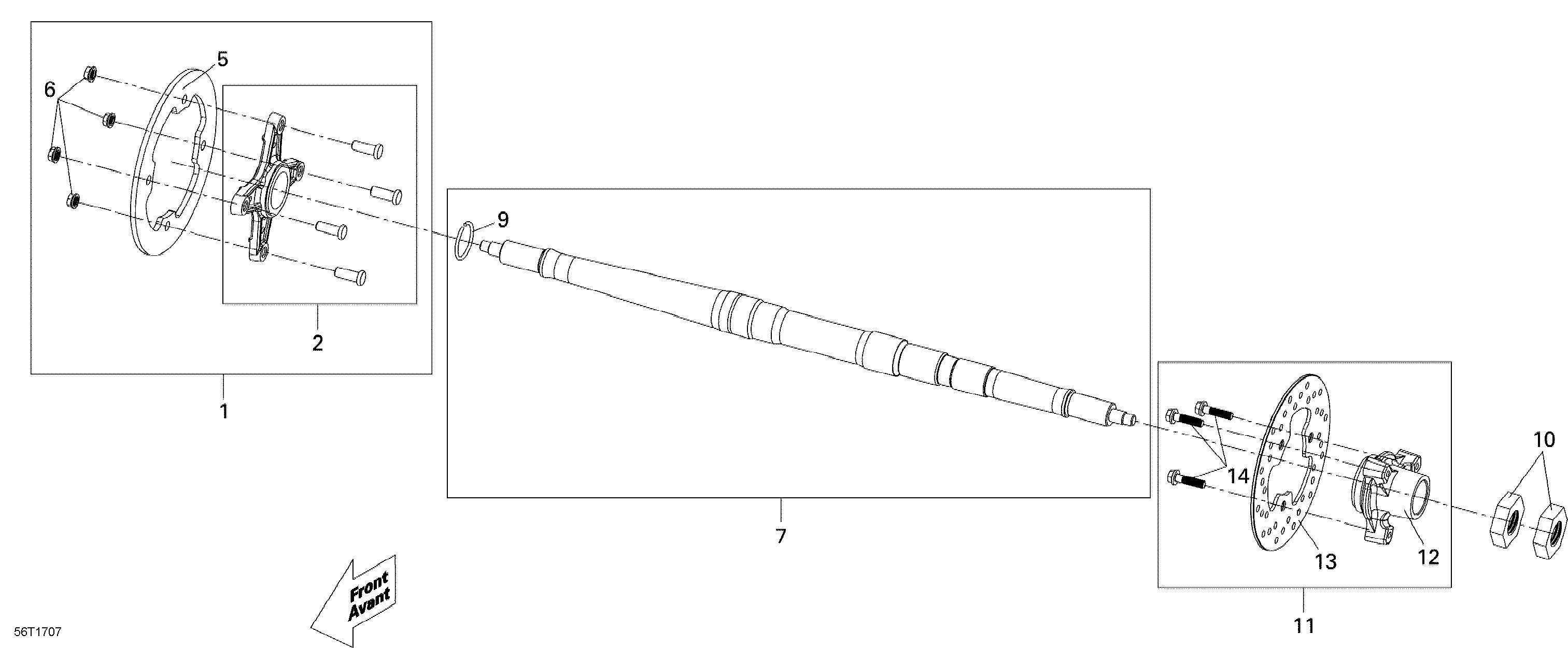

08- Drive Shaft для BRP 4- DS 250 - 2019
-
№АртикулНазвание
-
2S40112RCA000 Rear Sprocket Holder Ass'yRear Sprocket Holder Ass'y
-
5S41201RCA000 SprocketSprocket
-
6S90304M9Q800 Hex. Flanged Nut 10 mmHex. Flanged Nut 10 mm
-
7S4230ARCA000 Rear Axle Ass'y. Includes Item 9Rear Axle Ass'y. Includes Item 9
-
9S42303RCA000 C-clipC-clip
-
10S42302RCA000 Rear Axle NutRear Axle Nut
-
12S43251RCA000 Rear Brake Disc HolderRear Brake Disc Holder
-
13S43520RCA000 Rear Brake DiscRear Brake Disc
-
14S90105KR3000 Bolt M8 X 24Bolt M8 X 24
