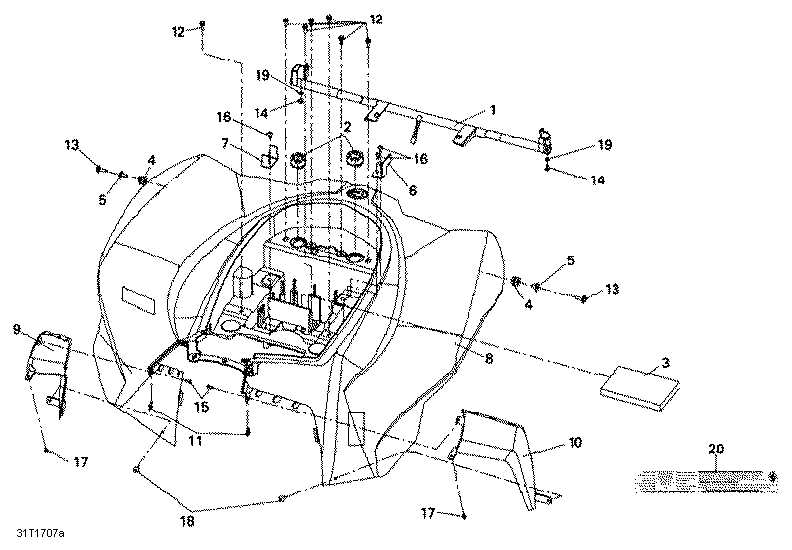

09- Body And Accessories, Front View North America для BRP 4- DS 250 - 2019
-
№АртикулНазвание
-
1S50530RCB000 Rear Fender Support. North AmericaRear Fender Support. North America
-
2S77212RCA000 Rubber Cushion. North AmericaRubber Cushion. North America
-
3S80108RCA000 Sponge Rubber. North AmericaSponge Rubber. North America
-
4S80103X01000 Rubber Washer. North AmericaRubber Washer. North America
-
5S80104X01000 Fender Collar. North AmericaFender Collar. North America
-
6S80107RCA000 CDI Stay. North AmericaCDI Stay. North America
-
7S80109RB1000 Stay. North AmericaStay. North America
-
8S8010GRCB910Q Rear Fender , White. North AmericaRear Fender , White. North America
-
8aS80111RCA000 Reflective Sheet A. North AmericaReflective Sheet A. North America
-
8bS80112RCA000 Reflective Sheet B. North AmericaReflective Sheet B. North America
-
8cS80113RCA000 Reflective Sheet C. North AmericaReflective Sheet C. North America
-
8dS80114RCA000 Reflective Sheet D. North AmericaReflective Sheet D. North America
-
8eS80115RCA000 Reflective Sheet E. North AmericaReflective Sheet E. North America
-
8fS87132RCA900 RH Rear Fender Decal. North AmericaRH Rear Fender Decal. North America
-
8gS87133RCA900 LH Rear Fender Decal. North AmericaLH Rear Fender Decal. North America
-
8hS8750BRCA000 Warning Decal B. North AmericaWarning Decal B. North America
-
8kS87514RCA800 EPA Label. North AmericaEPA Label. North America
-
8S8010GRCB910ZY Rear Fender , Yellow. North AmericaRear Fender , Yellow. North America
-
8aS80111RCA000 Reflective Sheet A. North AmericaReflective Sheet A. North America
-
8bS80112RCA000 Reflective Sheet B. North AmericaReflective Sheet B. North America
-
8cS80113RCA000 Reflective Sheet C. North AmericaReflective Sheet C. North America
-
8dS80114RCA000 Reflective Sheet D. North AmericaReflective Sheet D. North America
-
8eS80115RCA000 Reflective Sheet E. North AmericaReflective Sheet E. North America
-
8fS87132RCAA00 Rear Fender Decal. North AmericaRear Fender Decal. North America
-
8gS87133RCAA00 Rear Fender Decal. North AmericaRear Fender Decal. North America
-
8hS8750BRCA000 Warning Decal B. North AmericaWarning Decal B. North America
-
8kS87514RCA900 EPA Label. North AmericaEPA Label. North America
-
8S8010GRCB910QX Rear Fender , White. North AmericaRear Fender , White. North America
-
8S8010GRCBA00ZY Rear Fender , Yellow. North AmericaRear Fender , Yellow. North America
-
8aS80111RCA000 Reflective Sheet A. North AmericaReflective Sheet A. North America
-
8bS80112RCA000 Reflective Sheet B. North AmericaReflective Sheet B. North America
-
8cS80113RCA000 Reflective Sheet C. North AmericaReflective Sheet C. North America
-
8dS80114RCA000 Reflective Sheet D. North AmericaReflective Sheet D. North America
-
8eS80115RCA000 Reflective Sheet E. North AmericaReflective Sheet E. North America
-
8fS87132RCAA00 Rear Fender Decal. North AmericaRear Fender Decal. North America
-
8gS87133RCAA00 Rear Fender Decal. North AmericaRear Fender Decal. North America
-
8hS8750BRCA000 Warning Decal B. North AmericaWarning Decal B. North America
-
8aS80111RCA000 Reflective Sheet A. North AmericaReflective Sheet A. North America
-
8bS80112RCA000 Reflective Sheet B. North AmericaReflective Sheet B. North America
-
8cS80113RCA000 Reflective Sheet C. North AmericaReflective Sheet C. North America
-
8dS80114RCA000 Reflective Sheet D. North AmericaReflective Sheet D. North America
-
8eS80115RCA000 Reflective Sheet E. North AmericaReflective Sheet E. North America
-
8fS87132RCAA00 Rear Fender Decal. North AmericaRear Fender Decal. North America
-
8gS87133RCAA00 Rear Fender Decal. North AmericaRear Fender Decal. North America
-
8hS8750BRCA000 Warning Decal B. North AmericaWarning Decal B. North America
-
9S83525RCA000JF RH Side Cover. North AmericaRH Side Cover. North America
-
10S83625RCA000 LH Side Cover. North AmericaLH Side Cover. North America
-
11S90302V02000 Clip Nut. North AmericaClip Nut. North America
-
12S9390335280 Tapping Screw M5 X 12. North AmericaTapping Screw M5 X 12. North America
-
13S934040602507 Washer Bolt. North AmericaWasher Bolt. North America
-
14S938910501207 Flanged Bolt M5 X 12. North AmericaFlanged Bolt M5 X 12. North America
-
15S9390334380 Tapping Screw M4 X 12. North AmericaTapping Screw M4 X 12. North America
-
16S9390335280 Tapping Screw M5 X 12. North AmericaTapping Screw M5 X 12. North America
-
17S9390344380 Tapping Screw. North AmericaTapping Screw. North America
-
18S90119G03900 Screw Washer. North AmericaScrew Washer. North America
-
19S9411105800 Spring Washer 5 mm. North AmericaSpring Washer 5 mm. North America
