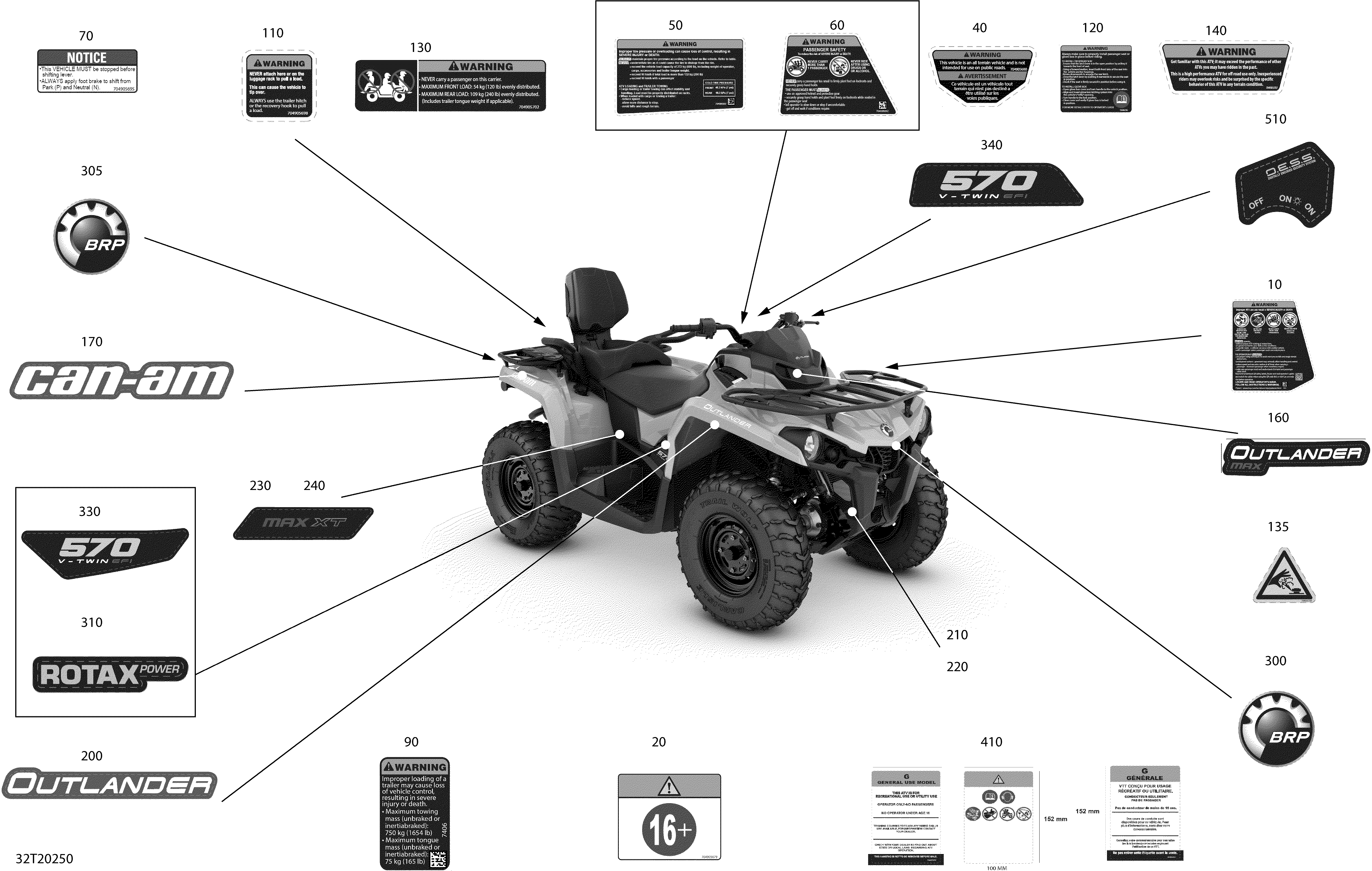

09- Decals - XT для BRP 005 - Outlander MAX 570 EFI - North America - 2020
-
№АртикулНазвание
-
10704908014 Warning Decal, Death And InjuriesWarning Decal, Death And Injuries
-
20704905678 Warning Decal, Death And InjuriesWarning Decal, Death And Injuries
-
40704905680 Transport Canada LabelTransport Canada Label
-
50704906307 Warning Decal, Tire PressureWarning Decal, Tire Pressure
-
60704906852 Warning Decal, PassengerWarning Decal, Passenger
-
70704905695 Warning Decal, Shifting LeverWarning Decal, Shifting Lever
-
90704907406 Cargo Warning DecalCargo Warning Decal
-
110704905698 Warning DecalWarning Decal
-
120704905700 Warning Decal, Seat PassengerWarning Decal, Seat Passenger
-
130704905702 Warning Decal, Luggage RackWarning Decal, Luggage Rack
-
135704905706 Warning Decal, Hot LiquidWarning Decal, Hot Liquid
-
140704905707 Warning Decal, PerformanceWarning Decal, Performance
-
160704905723 Console Decal ''Outlander Max''Console Decal ''Outlander Max''
-
170704907253 Decal ''Can-Am''. Hyper SilverDecal ''Can-Am''. Hyper Silver
-
170704907902 Decal ''Can-Am''. Mineral Gray SatinDecal ''Can-Am''. Mineral Gray Satin
-
200704907903 Decal ''Outlander''. Mineral Gray SatinDecal ''Outlander''. Mineral Gray Satin
-
200704907254 Decal ''Outlander''. Hyper SilverDecal ''Outlander''. Hyper Silver
-
210704903972 LH Side Front ReflectorLH Side Front Reflector
-
220704903973 RH Side Front ReflectorRH Side Front Reflector
-
230704905973 LH Decal ''Max XT''LH Decal ''Max XT''
-
240704905974 RH Decal ''Max XT''RH Decal ''Max XT''
-
300516008739 Logo 68mm ''BRP''Logo 68mm ''BRP''
-
305516008738 Logo 48mm ''BRP''Logo 48mm ''BRP''
-
310704905746 Decal ''Rotax Power''Decal ''Rotax Power''
-
330704905749 LH Engine Decal ''570 V-Twin EFI''LH Engine Decal ''570 V-Twin EFI''
-
340704905753 RH Engine Decal ''570 V-Twin EFI''RH Engine Decal ''570 V-Twin EFI''
-
410704903314 Warning Decal, General Use ModelWarning Decal, General Use Model
-
510704905664 Decal Key ''Off On''Decal Key ''Off On''
