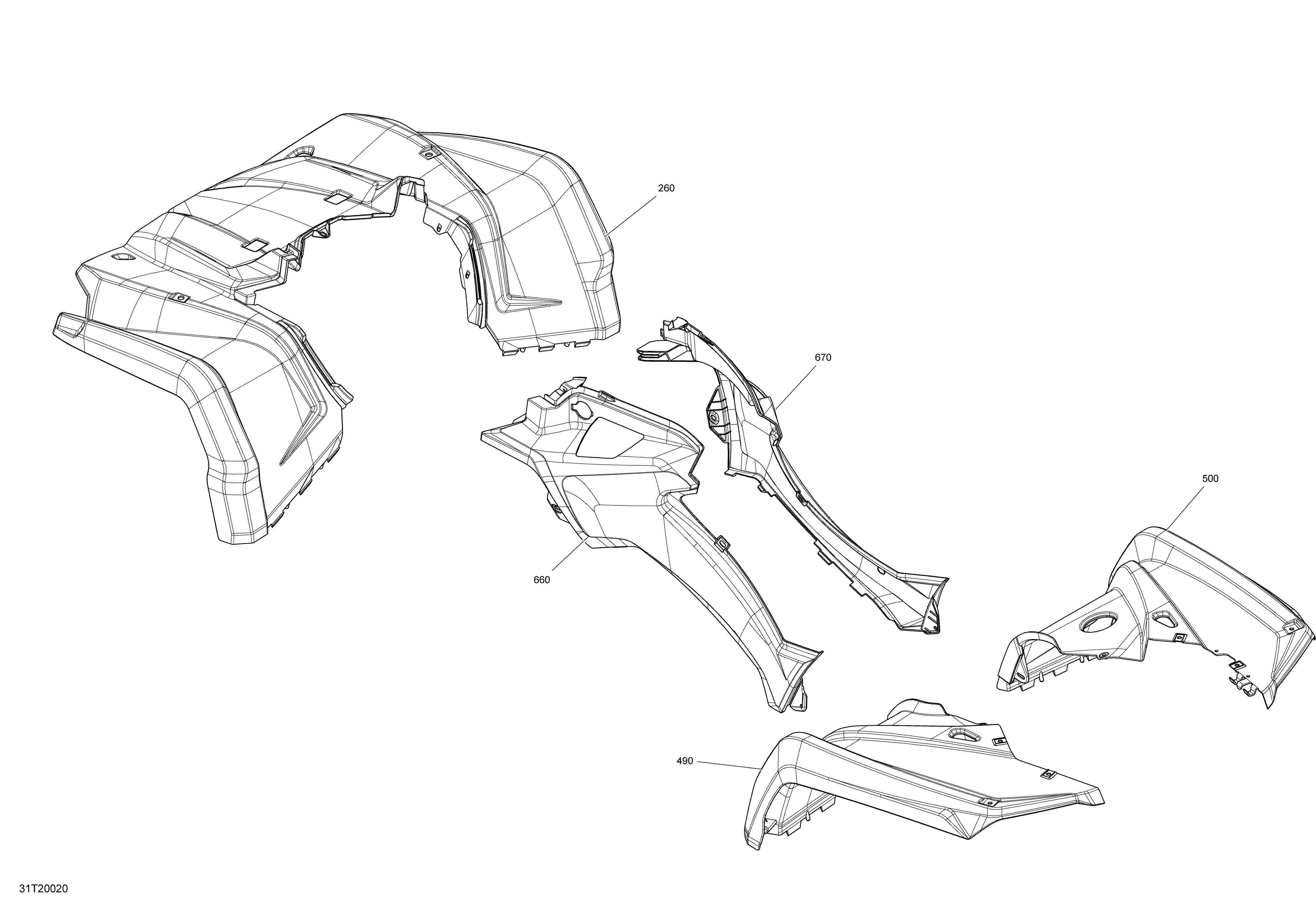

09- Fender Kit - Hyper Silver для BRP 005 - Outlander MAX 570 EFI - North America - 2020
-
№АртикулНазвание
-
260715005915 Hyper Silver, Front FenderHyper Silver, Front Fender
-
490715005948 Hyper Silver, LH Rear FenderHyper Silver, LH Rear Fender
-
500705013247 Hyper Silver, RH Rear FenderHyper Silver, RH Rear Fender
-
660705011920 Hyper Silver, LH PanelHyper Silver, LH Panel
-
670705011921 Hyper Silver, RH PanelHyper Silver, RH Panel
