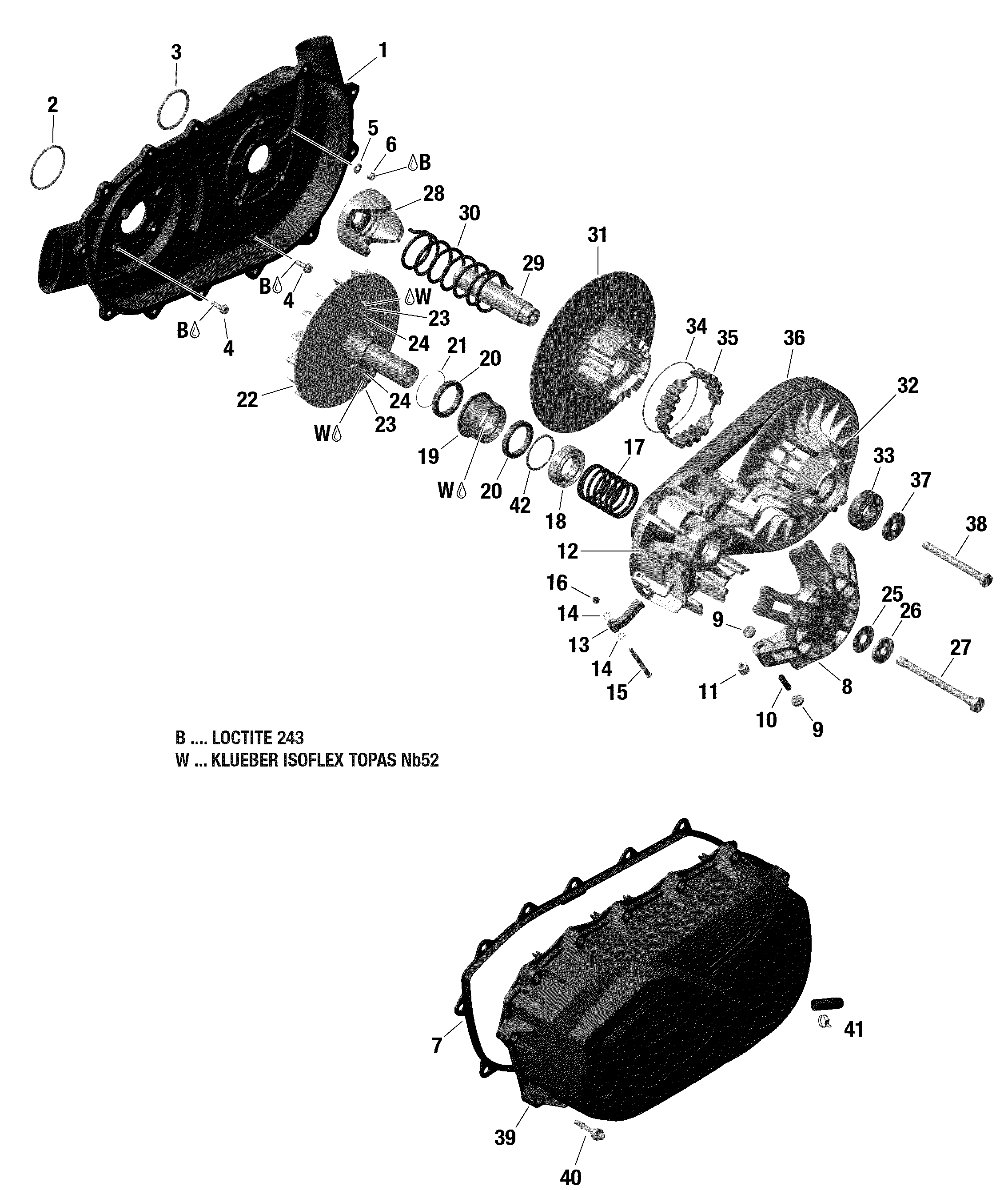

05- Transmission 211 для BRP 003 - Outlander MAX 6X6 - 1000 EFI - North America - 2020

-
№АртикулНазвание
-
1420612304 CVT Air GuideCVT Air Guide
-
2420430408 O-RingO-Ring
-
3420631088 O-RingO-Ring
-
4420441311 Hex.Screw M6 X 20Hex.Screw M6 X 20
-
5224061121 Flat WasherFlat Washer
-
6420842041 WasherWasher
-
7420430127 GasketGasket
-
8>11420280522 Governor Cup Ass'yGovernor Cup Ass'y
-
9420281296 Slider Shoe SetSlider Shoe Set
-
10417223257 Roller AxleRoller Axle
-
11417223767 RollerRoller
-
12420280467 Outher HaftOuther Haft
-
13>16420248609 Centrifugal Lever KitCentrifugal Lever Kit
-
17420238610 Compression Spring, Drive PulleyCompression Spring, Drive Pulley
-
19420257195 Drive Pulley ClutchDrive Pulley Clutch
-
21420245951 Retaining RingRetaining Ring
-
22420280374 Inner HalfInner Half
-
23420229577 Spring SleeveSpring Sleeve
-
24420239134 SpringSpring
-
25420627920 Thrust WasherThrust Washer
-
26420627765 Spring WasherSpring Washer
-
27420641859 Hex. Screw M12 X 140Hex. Screw M12 X 140
-
28420280473 CamCam
-
29420220914 Driven Pulley ShaftDriven Pulley Shaft
-
30420638040 Compression SpringCompression Spring
-
31420280499 Inner Half Ass'yInner Half Ass'y
-
32>35420280178 Outer Half Pulley Ass'yOuter Half Pulley Ass'y
-
33420932421 Ball BearingBall Bearing
-
34420245911 Retaining RingRetaining Ring
-
35420660124 Torque GearTorque Gear
-
36422280360 V-BeltV-Belt
-
37420627590 Thrust WasherThrust Washer
-
38420441485 Hex. Screw M10 X 110Hex. Screw M10 X 110
-
39420611397 Variator CoverVariator Cover
-
40420440568 Hex Screw M6 X 30Hex Screw M6 X 30
-
41707001179 Drain Plug KitDrain Plug Kit
