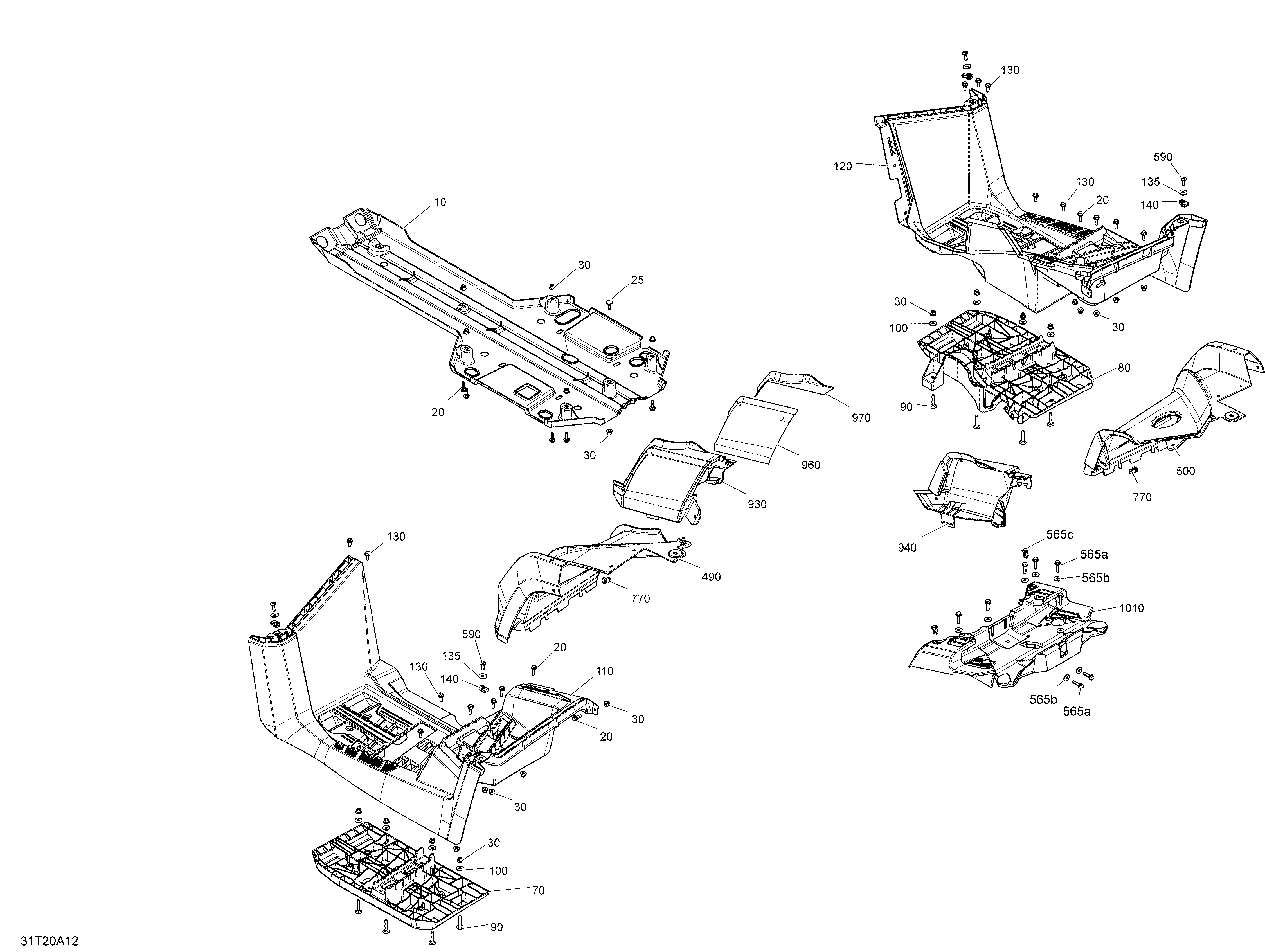

09- Body - Rear Section - Pure Magnesium для BRP 003 - Outlander MAX 6X6 - 1000 EFI - North America - 2020
-
№АртикулНазвание
-
10715002374 Protective Plate KitProtective Plate Kit
-
20207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
25207762044 Carriage Bolt M6 X 20Carriage Bolt M6 X 20
-
30233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
70705011540 LH Structural Footboard. Includes 70 to 70aLH Structural Footboard. Includes 70 to 70a
-
80705011542 RH Structural Footboard. Includes 80 to 80aRH Structural Footboard. Includes 80 to 80a
-
90207763554 Carriage Bolt M6 X 35Carriage Bolt M6 X 35
-
100234062410 Flat Washer 6 mmFlat Washer 6 mm
-
110705003525 LH Footrest MaxLH Footrest Max
-
120705003521 RH Footrest MaxRH Footrest Max
-
130207661654 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
135224061201 Flat WasherFlat Washer
-
140250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
490715006078 Pure Magnesium Rear LH FenderPure Magnesium Rear LH Fender
-
500715006090 Pure Magnesium Rear RH FenderPure Magnesium Rear RH Fender
-
565a250000841 Screw Hex Flange M6 X 25Screw Hex Flange M6 X 25
-
565b234062670 Flat Washer, StainlessFlat Washer, Stainless
-
565c293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
590250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
930715001897 LH Extension PanelLH Extension Panel
-
940705004348 RH Extension PanelRH Extension Panel
-
960705006870 Heat ShieldHeat Shield
-
970705006871 Heat ShieldHeat Shield
-
1010705007948 Seat HolderSeat Holder
