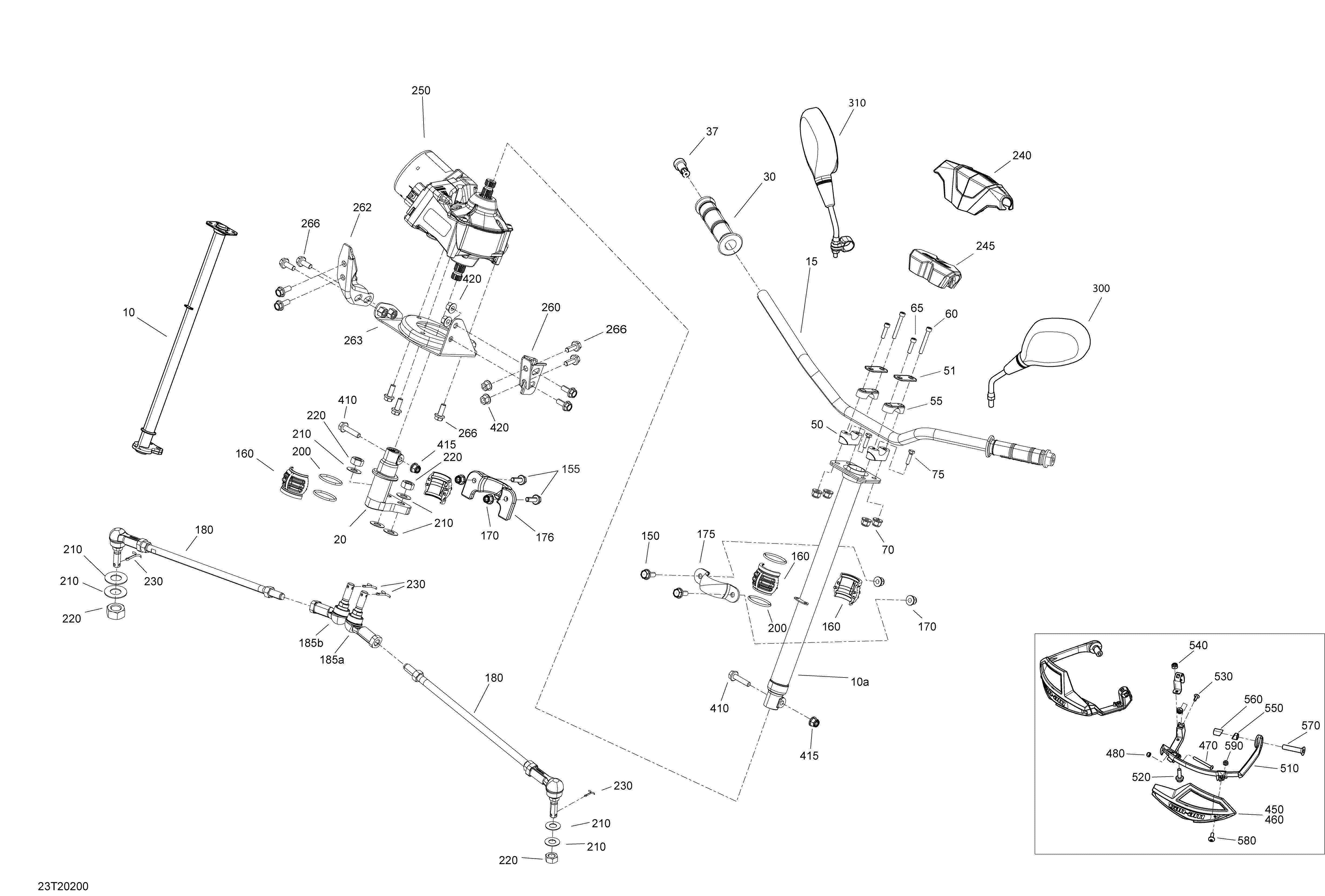

07- Steering для BRP 003 - Renegade 850 EFI - North America - 2020
-
№АртикулНазвание
-
10709401008 Main TubeMain Tube
-
10a709401750 Black, Upper Main Tube. XXCBlack, Upper Main Tube. XXC
-
15709401240 Black, Handle Bar. STDBlack, Handle Bar. STD
-
15709402063 Sunburst Yellow, Handle Bar. XXCSunburst Yellow, Handle Bar. XXC
-
20709401748 Pitman Arm. XXCPitman Arm. XXC
-
30709400493 Handle Grip. STDHandle Grip. STD
-
30709400493 Handle Grip. XXCHandle Grip. XXC
-
37709400449 End Piece. STDEnd Piece. STD
-
50709400497 Steering Support. XXCSteering Support. XXC
-
50709401799 Steering Support. STDSteering Support. STD
-
51709400509 Stiffner. STDStiffner. STD
-
55709400496 Support. XXCSupport. XXC
-
60205086060 Socket Head Screw M8 X 60. XXCSocket Head Screw M8 X 60. XXC
-
60207086046 Hex. Screw M8 X 60. STDHex. Screw M8 X 60. STD
-
65205083060 Socket Screw M8 X 30. XXCSocket Screw M8 X 30. XXC
-
70233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
75207183060 Hex. Screw M8 X 30. XXCHex. Screw M8 X 30. XXC
-
150207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
155207682544 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
160709400783 Spherical Half BushingSpherical Half Bushing
-
170233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
175709400827 Upper Column AttachmentUpper Column Attachment
-
176709401428 Column AttachmentColumn Attachment
-
180703501039 Tie-Rod Ass`y. Includes 180 to 180aTie-Rod Ass`y. Includes 180 to 180a
-
185a709402303 LH Ball JointLH Ball Joint
-
185b709402302 RH Ball JointRH Ball Joint
-
180703501039 Tie-Rod Ass`y. Includes 180 to 180bTie-Rod Ass`y. Includes 180 to 180b
-
185a709402303 LH Ball JointLH Ball Joint
-
185b709402302 RH Ball JointRH Ball Joint
-
200293300068 O-RingO-Ring
-
210250200086 Flat WasherFlat Washer
-
220250100099 Nut M12Nut M12
-
230211400013 Cotter PinCotter Pin
-
240709400939 Cover. STDCover. STD
-
245709402328 Steering Cover. XXCSteering Cover. XXC
-
250709402230 Power Steering. XXCPower Steering. XXC
-
260709402184 LH Power Steering Bracket. XXCLH Power Steering Bracket. XXC
-
262709402185 RH Bracket. XXCRH Bracket. XXC
-
263709401743 Power Steering Support. XXCPower Steering Support. XXC
-
266207582044 Hex. Flanged Screw M8 X 20, Scotch Grip. XXCHex. Flanged Screw M8 X 20, Scotch Grip. XXC
-
300709400406 LH MirrorLH Mirror
-
310709400407 RH MirrorRH Mirror
-
410250000986 Hex. Flanged Screw M8 X 35. XXCHex. Flanged Screw M8 X 35. XXC
-
415233281416 Hex. Elastic Flanged Nut M8. XXCHex. Elastic Flanged Nut M8. XXC
-
420233081416 Hex. Flanged Nut M8. XXCHex. Flanged Nut M8. XXC
-
450709402053 RH Air Deflector. XXCRH Air Deflector. XXC
-
460709402054 LH Air Deflector. XXCLH Air Deflector. XXC
-
470205444056 Socket Head Screw M4 X 40. XXCSocket Head Screw M4 X 40. XXC
-
480232541414 Elastic Stop Nut M4. XXCElastic Stop Nut M4. XXC
-
510715001378 Air Deflector Support Kit. XXCAir Deflector Support Kit. XXC
-
510715001378 Air Deflector Support Kit. XXCAir Deflector Support Kit. XXC
-
510715001378 Air Deflector Support Kit. XXCAir Deflector Support Kit. XXC
-
520207662044 Hex. Flanged Screw M6 X 20. XXCHex. Flanged Screw M6 X 20. XXC
-
530250000717 Torx Head Screw M6 X 16. XXCTorx Head Screw M6 X 16. XXC
-
540232561600 Hex. Elastic Stop Nut M6. XXCHex. Elastic Stop Nut M6. XXC
-
550709400161 Bracket Small. XXCBracket Small. XXC
-
560709400162 Bracket Large. XXCBracket Large. XXC
-
570205384034 Socket Head Screw. XXCSocket Head Screw. XXC
-
580250000742 Torx Screw M5 X 14. XXCTorx Screw M5 X 14. XXC
-
590232551600 Hex. Elastic Nut M5. XXCHex. Elastic Nut M5. XXC
