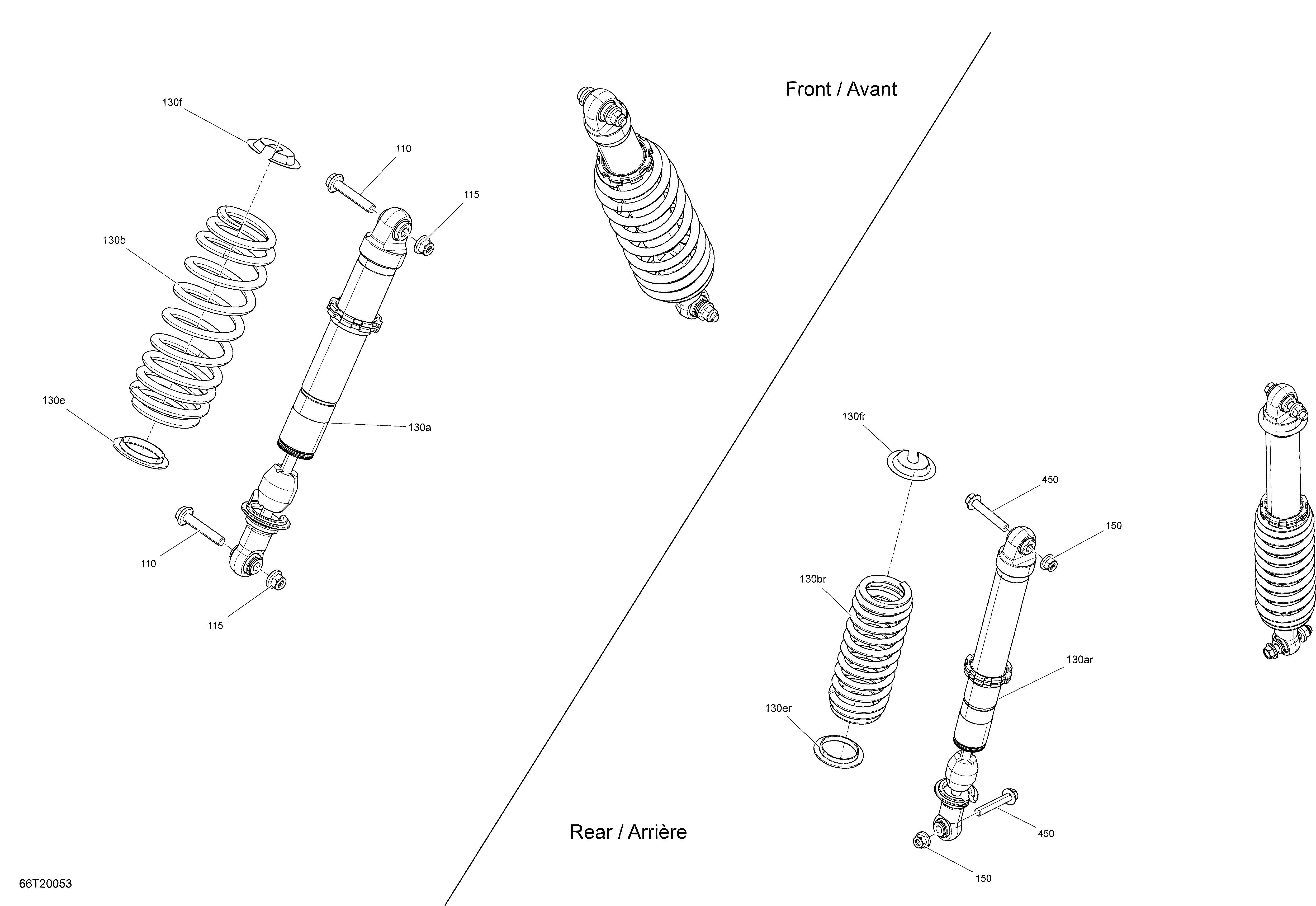

08- Shocks - STD для BRP 003 - Renegade 850 EFI - North America - 2020
-
№АртикулНазвание
-
110207605546 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
115233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
130a706203979 Front Shock AbsorberFront Shock Absorber
-
130b706203418 Yellow SpringYellow Spring
-
130e503187500 Spring GuideSpring Guide
-
130f706200785 CapCap
-
130ar706003833 Rear Shock AbsorberRear Shock Absorber
-
130br706003054 Yellow SpringYellow Spring
-
130er503187500 Spring GuideSpring Guide
-
130fr706200785 CapCap
-
150233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
450207606046 Hex. Flanged Screw M10 X 60Hex. Flanged Screw M10 X 60
