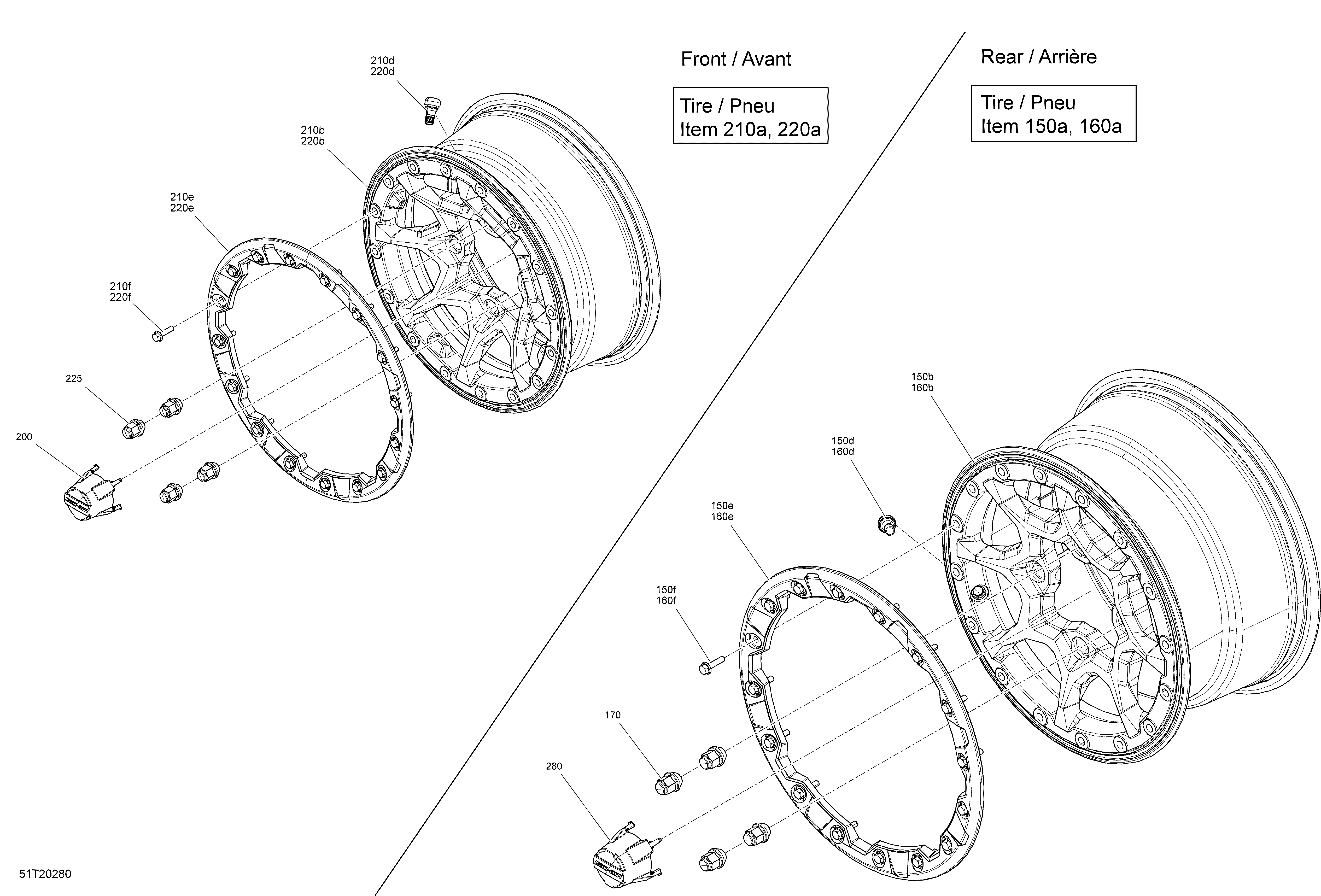

07- Wheels - XMR для BRP 005 - Renegade 1000R EFI - XMR - North America - 2020
-
№АртикулНазвание
-
200705400928 Wheel CapWheel Cap
-
150a705402178 TireTire
-
150b705502715 Black, RimBlack, Rim
-
150c293450317 Insert. Not ShownInsert. Not Shown
-
150d705402595 Valve Tire AssyValve Tire Assy
-
150e705402584 Disc Plate. Model Timeless BlackDisc Plate. Model Timeless Black
-
150e705401586 Manta Green, Reinforcement Disk. Model Mineral Gray SatinManta Green, Reinforcement Disk. Model Mineral Gray Satin
-
150f250000787 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
160a705402178 TireTire
-
160b705502715 Black, RimBlack, Rim
-
160c293450317 Insert. Not ShownInsert. Not Shown
-
160d705402595 Valve Tire AssyValve Tire Assy
-
160e705402584 Disc Plate. Model Timeless BlackDisc Plate. Model Timeless Black
-
160e705401586 Manta Green, Reinforcement Disk. Model Mineral Gray SatinManta Green, Reinforcement Disk. Model Mineral Gray Satin
-
160f250000787 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
170250100184 Black Wheel Nut M10 X 1.25Black Wheel Nut M10 X 1.25
-
210a705402178 TireTire
-
210b705502715 Black, RimBlack, Rim
-
210c293450317 Insert. Not ShownInsert. Not Shown
-
210d705400193 Rim Valve With CapRim Valve With Cap
-
210e705401586 Manta Green, Reinforcement Disk. Model Mineral Gray SatinManta Green, Reinforcement Disk. Model Mineral Gray Satin
-
210e705402584 Disc Plate. Model Timeless BlackDisc Plate. Model Timeless Black
-
210f250000787 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
220a705402178 TireTire
-
220b705502715 Black, RimBlack, Rim
-
220c293450317 Insert. Not ShownInsert. Not Shown
-
220d705400193 Rim Valve With CapRim Valve With Cap
-
220e705401586 Manta Green, Reinforcement Disk. Model Mineral Gray SatinManta Green, Reinforcement Disk. Model Mineral Gray Satin
-
220e705402584 Disc Plate. Model Timeless BlackDisc Plate. Model Timeless Black
-
220f250000787 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
225250100184 Black Wheel Nut M10 X 1.25Black Wheel Nut M10 X 1.25
-
280705400928 Wheel CapWheel Cap
