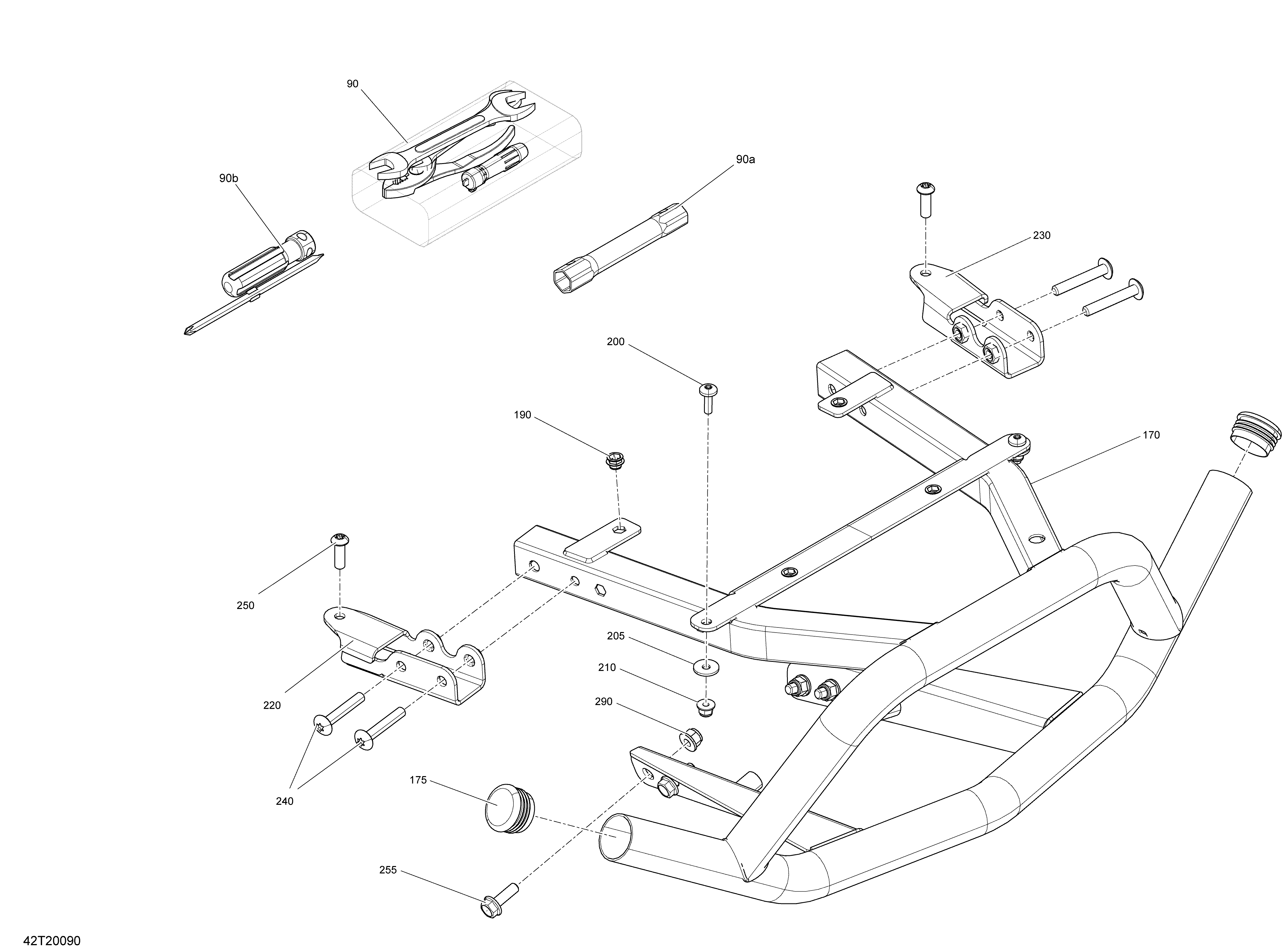

09- Front Storage Compartment для BRP 005 - Renegade 1000R EFI - XMR - North America - 2020
-
№АртикулНазвание
-
90704700168 Tool Kit. Includes 90 to 90bTool Kit. Includes 90 to 90b
-
90A529000085 Socket Wrench 14/16MMSocket Wrench 14/16MM
-
90b529000021 Screw DriverScrew Driver
-
170715006835 Platinum Silver, Rear Bumper Kit. Model Timeless BlackPlatinum Silver, Rear Bumper Kit. Model Timeless Black
-
170715006838 Manta Green, Rear Bumper Kit. Model Mineral Gray SatinManta Green, Rear Bumper Kit. Model Mineral Gray Satin
-
175705202455 CapCap
-
190250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
200250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
205224061201 Flat WasherFlat Washer
-
210233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
220705004977 LH Front BracketLH Front Bracket
-
230705004978 RH Front BracketRH Front Bracket
-
240250000844 Torx Screw M8 X 50 S.GRIPTorx Screw M8 X 50 S.GRIP
-
250250000757 Screw-Torx Button Head M8 X 25 S.GrScrew-Torx Button Head M8 X 25 S.Gr
-
255207682534 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
290233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
