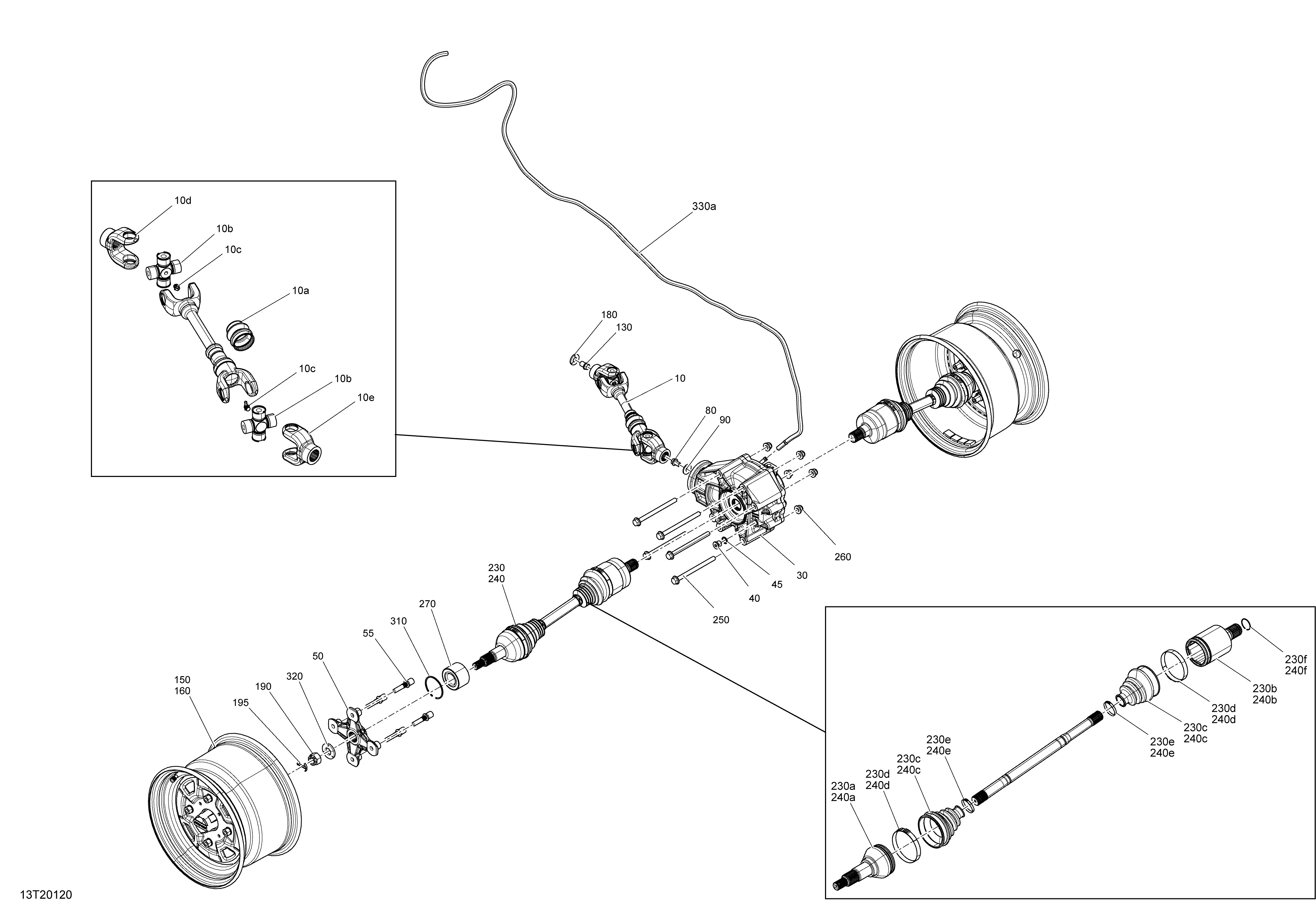

08- Rear Drive - Common Parts для BRP 001 - Outlander T 450 EFI - T Regulation - 2020
-
№АртикулНазвание
-
10705502725 Axle DriveAxle Drive
-
10a715900118 Rubber BootRubber Boot
-
10b703500846 Universal Joint Ass'y. Includes toUniversal Joint Ass'y. Includes to
-
10c715900295 Grease FittingGrease Fitting
-
10d715900500 YokeYoke
-
10e715900499 JointJoint
-
30705502546 Final Drive Unit. Includes 30 to 30mFinal Drive Unit. Includes 30 to 30m
-
40705500504 Fill Level PlugFill Level Plug
-
45705500506 Copper WasherCopper Washer
-
50705501716 Wheel Hub Ass'yWheel Hub Ass'y
-
55250300642 Wheel StudWheel Stud
-
80250001044 Screw-Hex.Flange M10 X 16 S.GRIPScrew-Hex.Flange M10 X 16 S.GRIP
-
90250200014 Flat Washer M10Flat Washer M10
-
130250001039 Hex Flanged Screw M12 X 16Hex Flanged Screw M12 X 16
-
180250200005 Conical Spring Washer M12Conical Spring Washer M12
-
190232291413 Hex. Flanged Castellated Nut M18Hex. Flanged Castellated Nut M18
-
195250400071 Cotter PinCotter Pin
-
230705501897 RH Half Shaft Ass'y. Packages STD & PRORH Half Shaft Ass'y. Packages STD & PRO
-
230a705401344 CV Joint. Packages STD & PROCV Joint. Packages STD & PRO
-
230b715900304 Plunging Joint. Packages STD & PROPlunging Joint. Packages STD & PRO
-
230c705401345 Boot Kit, Wheel Side. Packages STD & PRO. Includes toBoot Kit, Wheel Side. Packages STD & PRO. Includes to
-
230d715900282 Oetiker Clamp, Large. Packages STD & PROOetiker Clamp, Large. Packages STD & PRO
-
230e715900283 Oetiker Clamp, Small. Packages STD & PROOetiker Clamp, Small. Packages STD & PRO
-
230c705401346 Boot Kit, Différential Side. Packages STD & PRO. Includes toBoot Kit, Différential Side. Packages STD & PRO. Includes to
-
230d715900384 Pin Kit. Packages STD & PROPin Kit. Packages STD & PRO
-
230e715900261 Oetiker Clamp, Small. Packages STD & PROOetiker Clamp, Small. Packages STD & PRO
-
230f705501781 Circlip. Packages STD & PROCirclip. Packages STD & PRO
-
230705502577 RH Homocinetic Joint. Package DPSRH Homocinetic Joint. Package DPS
-
230a705501776 CV Joint. Package DPSCV Joint. Package DPS
-
230b715900604 Plunging Joint. Package DPSPlunging Joint. Package DPS
-
230d705501864 Boot Kit. Package DPS. Includes toBoot Kit. Package DPS. Includes to
-
230e715900241 Oetiker Clamp, 82.1 mm. Package DPSOetiker Clamp, 82.1 mm. Package DPS
-
230f715900242 Oetiker Clamp, 27.3 mm. Package DPSOetiker Clamp, 27.3 mm. Package DPS
-
230c705501781 Circlip. Package DPSCirclip. Package DPS
-
240705501485 LH Homocinetic Joint. Package DPSLH Homocinetic Joint. Package DPS
-
240a705501776 CV Joint. Package DPSCV Joint. Package DPS
-
240b705501780 Plunging Joint. Package DPSPlunging Joint. Package DPS
-
240c705501864 Boot Kit. Package DPS. Includes toBoot Kit. Package DPS. Includes to
-
240d715900241 Oetiker Clamp, 82.1 mm. Package DPSOetiker Clamp, 82.1 mm. Package DPS
-
240e715900242 Oetiker Clamp, 27.3 mm. Package DPSOetiker Clamp, 27.3 mm. Package DPS
-
240f705501781 Circlip. Package DPSCirclip. Package DPS
-
240705501898 LH Half Shaft Ass'y. Packages STD & PROLH Half Shaft Ass'y. Packages STD & PRO
-
240a705401344 CV Joint. Packages STD & PROCV Joint. Packages STD & PRO
-
240b715900304 Plunging Joint. Packages STD & PROPlunging Joint. Packages STD & PRO
-
240c705401345 Boot Kit, Wheel Side. Packages STD & PRO. Includes toBoot Kit, Wheel Side. Packages STD & PRO. Includes to
-
240d715900282 Oetiker Clamp, Large. Packages STD & PROOetiker Clamp, Large. Packages STD & PRO
-
240e715900283 Oetiker Clamp, Small. Packages STD & PROOetiker Clamp, Small. Packages STD & PRO
-
240c705401346 Boot Kit, Différential Side. Packages STD & PRO. Includes toBoot Kit, Différential Side. Packages STD & PRO. Includes to
-
240d715900284 Oetiker Clamp, Large. Packages STD & PROOetiker Clamp, Large. Packages STD & PRO
-
240e715900261 Oetiker Clamp, Small. Packages STD & PROOetiker Clamp, Small. Packages STD & PRO
-
240f705501781 Circlip. Packages STD & PROCirclip. Packages STD & PRO
-
250250001041 Hex. Flanged Screw M10 X 135Hex. Flanged Screw M10 X 135
-
260233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
270293350118 Cone BearingCone Bearing
-
310293370019 CirclipCirclip
-
320250200171 Conical Spring Washer M18Conical Spring Washer M18
-
330a293830193 Polyurethane HosePolyurethane Hose
