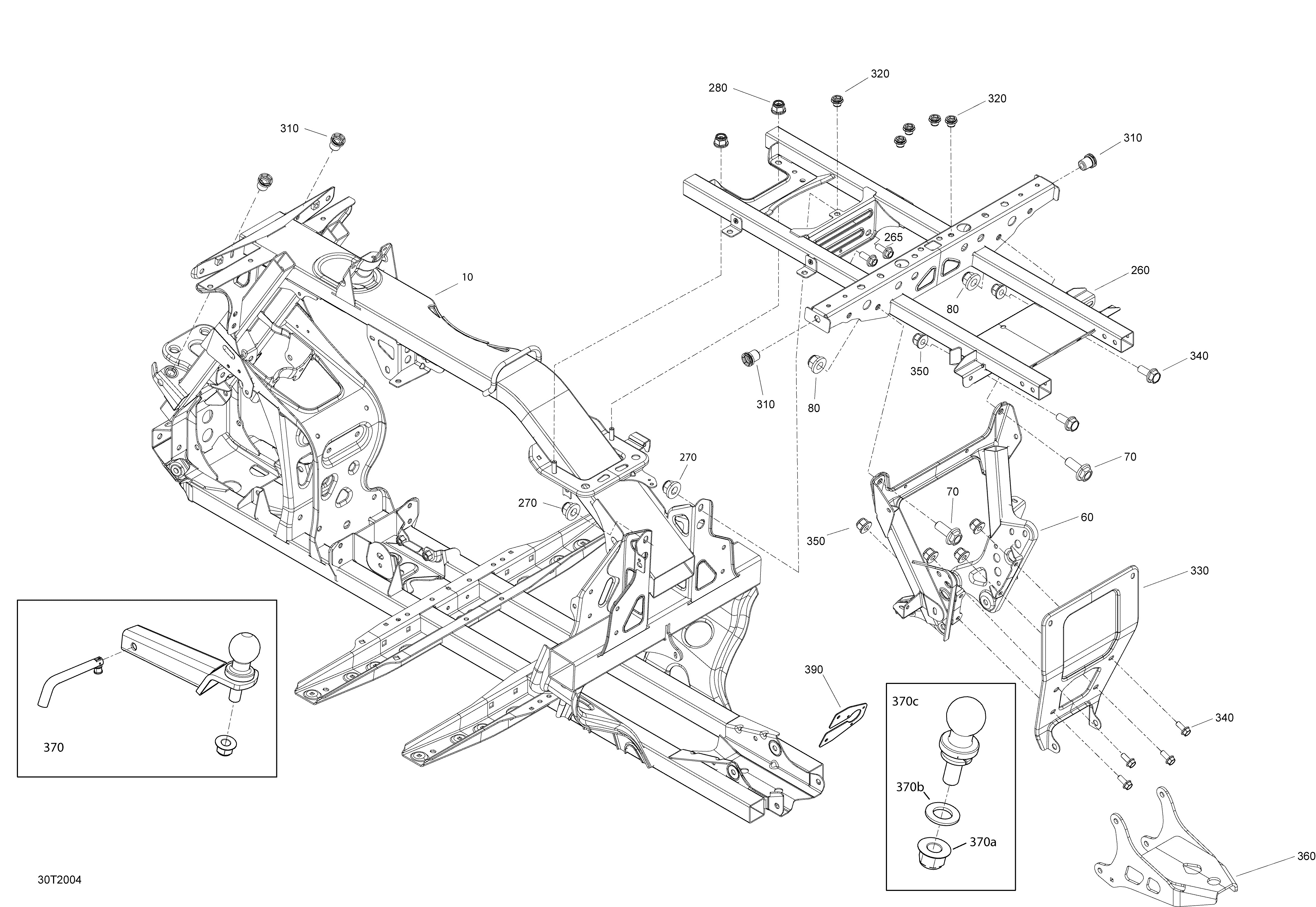

09- Frame для BRP 001 - Outlander T 450 EFI - T Regulation - 2020
-
№АртикулНазвание
-
10705208138 Deep Black, FrameDeep Black, Frame
-
60705203387 Black, Rear SupportBlack, Rear Support
-
70207602546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
80233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
260705203362 Black, Frame ExtensionBlack, Frame Extension
-
265207602546 Hex. Flanged Screw M10 X 25Hex. Flanged Screw M10 X 25
-
270233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
280233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
310293450307 Insert Half Hex Body M8 x 1.25Insert Half Hex Body M8 x 1.25
-
320250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
330705203541 Rear SupportRear Support
-
340207682046 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
350233281416 Hex. Elastic Flanged Nut M8Hex. Elastic Flanged Nut M8
-
360705206592 Black, Trailer HitchBlack, Trailer Hitch
-
370705208131 Trailer Hitch KIT. Includes 370 to 370bTrailer Hitch KIT. Includes 370 to 370b
-
370a250100104 Elastic Flanged Nut M20Elastic Flanged Nut M20
-
370b250200094 Flat WasherFlat Washer
-
370c705208129 Ball Coupling 50 MM Ass'y. Includes 370 to 370bBall Coupling 50 MM Ass'y. Includes 370 to 370b
-
390705206416 Trailer connector SupportTrailer connector Support
