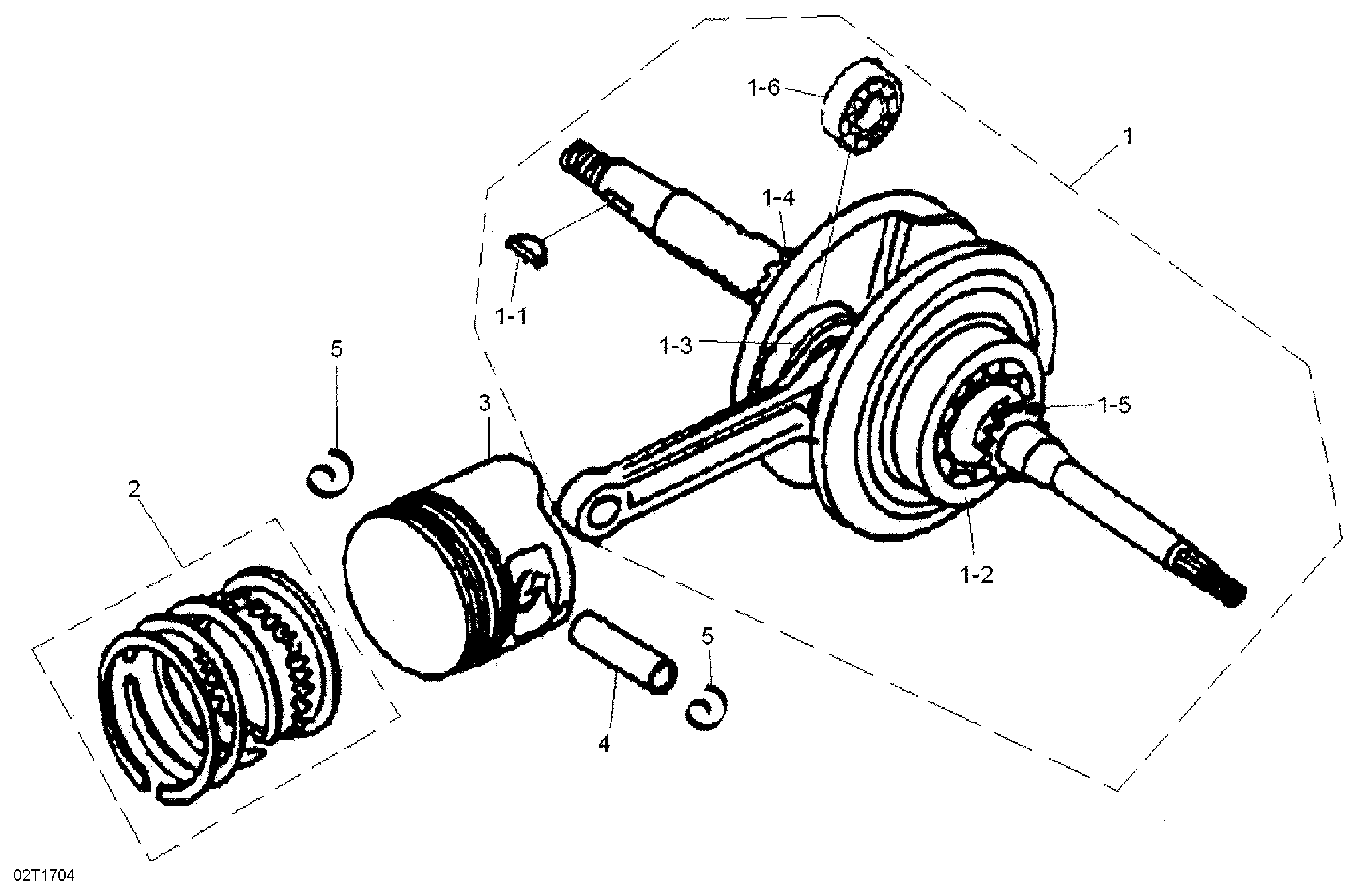

01- Crankshaft and Pistons для BRP 001 - DS 70 - 2020
-
№АртикулНазвание
-
1V13000CJF020 Crankshaft Ass'y,Crankshaft Ass'y,
-
2V13011CJF010 Piston Ring Set,Piston Ring Set,
-
3V13100CJF020 Piston,Piston,
-
4V13111CJF020 Piston Pin,Piston Pin,
-
5V13115CJF000 Clip Piston PinClip Piston Pin
