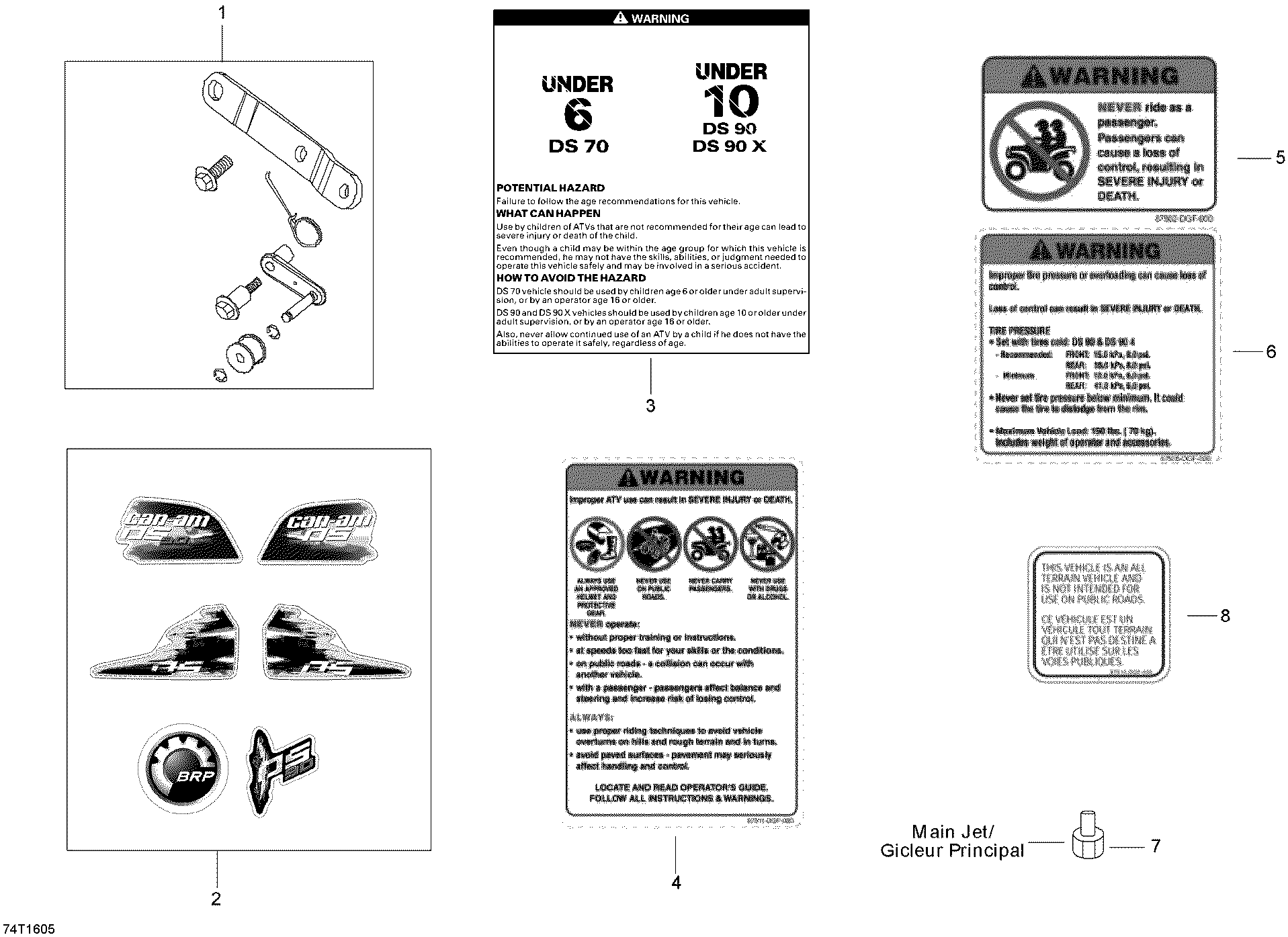

09- Accessories And Decals для BRP 001 - DS 70 - 2020
-
№АртикулНазвание
-
1V72301DGF000 Chain TensionerChain Tensioner
-
2V87702DGE010 DS70 Decal Set. Red ModelDS70 Decal Set. Red Model
-
2V87702DGE000OR DS70 Decal Set Boy Version. White ModelDS70 Decal Set Boy Version. White Model
-
2V87702DGE000PU DS70 Decal Set Girl Version. White ModelDS70 Decal Set Girl Version. White Model
-
3V87213DGF000LL Warning LabelWarning Label
-
4V87212DGF010 Warning LabelWarning Label
-
5V87215DGF000LL Warning LabelWarning Label
-
6V87216DGF000LL Warning LabelWarning Label
-
7V16104DGF000 Main Jet 68Main Jet 68
-
7V16105DGF000 Main Jet 70Main Jet 70
-
7V16106DGF000 Main Jet 72Main Jet 72
-
7V16103DGE010 Main Jet 75Main Jet 75
-
7V16107DGF000 Main Jet 78Main Jet 78
-
7V16109DGF000 Main Jet 82Main Jet 82
-
7V16110DGF000 Main Jet 85Main Jet 85
-
8V87218DGF000LL Warning Label. North America ModelWarning Label. North America Model
-
8704901394 International Decal, Multilingual. InternationalInternational Decal, Multilingual. International
-
8V87216DGF020 Warning label Tire PressureWarning label Tire Pressure
