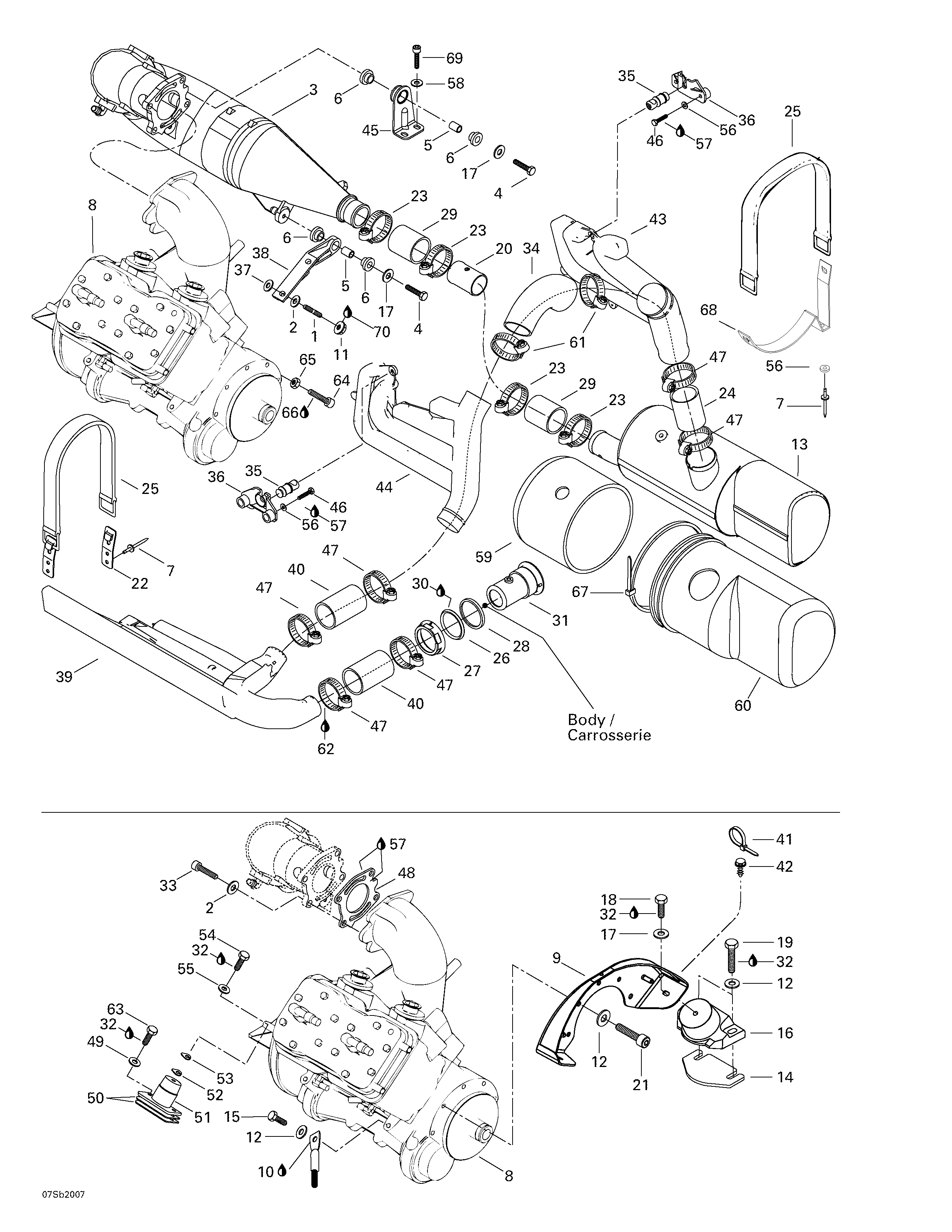

01- Engine Support And Muffler для BRP GTX RFI, 5648/5658/5515/5516 - 2000
-
№АртикулНазвание
-
1250300007 Stud M10 x 60 (Scotch Grip)Stud M10 x 60 (Scotch Grip)
-
2234001600 Flat Washer 10 mmFlat Washer 10 mm
-
3274000395 Head Pipe Ass'yHead Pipe Ass'y
-
4207284060 Hex. Screw M8 x 40 (Scotch Grip)Hex. Screw M8 x 40 (Scotch Grip)
-
5274000254 BushingBushing
-
6293830036 Bushing RubberBushing Rubber
-
7293150037 Rivet 3/16Rivet 3/16
-
8270000466 Rotax Engine 787 SDI (Silver)Rotax Engine 787 SDI (Silver)
-
9270000359 Engine SupportEngine Support
-
10293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
11233101600 Hexagonal Nut M10Hexagonal Nut M10
-
12234081600 Washer 8 mmWasher 8 mm
-
13274000737 MufflerMuffler
-
14270000122 Shim 0.3 mmShim 0.3 mm
-
270000123 Shim 1.3 mmShim 1.3 mm
-
15207382560 Hex. Screw M8 x 25 (Scotch Grip)Hex. Screw M8 x 25 (Scotch Grip)
-
16270000427 Rubber MountRubber Mount
-
17234082600 Washer 8 mmWasher 8 mm
-
18207181660 Hex. Screw M8 x 16Hex. Screw M8 x 16
-
19207184060 Hex. Screw M8 x 40Hex. Screw M8 x 40
-
20274000776 Curved TubeCurved Tube
-
21205582560 Socket Head Screw M8 x 25 (Scotch Grip)Socket Head Screw M8 x 25 (Scotch Grip)
-
22293850030 Strap ClipStrap Clip
-
23293650023 Tridon ClampTridon Clamp
-
24274000530 Exhaust HoseExhaust Hose
-
25293850021 StrapStrap
-
26274000225 WasherWasher
-
27274000224 Nut M72Nut M72
-
28293250041 GasketGasket
-
29274000170 Exhaust HoseExhaust Hose
-
30296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
31274000222 Outlet ExhaustOutlet Exhaust
-
32293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
33205503560 Screw M10 x 35 (Scotch Grip)Screw M10 x 35 (Scotch Grip)
-
34274000563 Exhaust HoseExhaust Hose
-
35293830062 Rubber PadRubber Pad
-
36291001204 Pad SupportPad Support
-
37234002600 Flat Washer 10 mmFlat Washer 10 mm
-
38274000759 Support PipeSupport Pipe
-
39295500683 ResonatorResonator
-
40274000616 Exhaust HoseExhaust Hose
-
41414115200 Tie Rap 180 mmTie Rap 180 mm
-
42293730018 DartDart
-
43274000604 Resonator RHResonator RH
-
44274000655 Resonator LHResonator LH
-
45274000779 Pipe SupportPipe Support
-
46207152060 Hex. Screw M5x20Hex. Screw M5x20
-
47293650064 Tridon ClampTridon Clamp
-
48290931503 GasketGasket
-
49234081600 Washer 8 mmWasher 8 mm
-
50270000122 Shim 0.3 mmShim 0.3 mm
-
270000123 Shim 1.3 mmShim 1.3 mm
-
51270000426 Rubber MountRubber Mount
-
52270000024 Shim 0.4 mmShim 0.4 mm
-
53270000025 Shim 1.3 mmShim 1.3 mm
-
54207182060 Screw Hex. M8 x 20Screw Hex. M8 x 20
-
55234082600 Washer 8 mmWasher 8 mm
-
56234052600 Flat Washer 5 mmFlat Washer 5 mm
-
57293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
58293050001 WasherWasher
-
59274000790 Cover Muffler - FrontCover Muffler - Front
-
60274000793 Cover Muffler - RearCover Muffler - Rear
-
61293650107 Tridon ClampTridon Clamp
-
62413710300 Sealant, Loctite 17914, 80 mlSealant, Loctite 17914, 80 ml
-
63207184060 Hex. Screw M8 x 40Hex. Screw M8 x 40
-
64205003060 Allen Screw M10 x 30Allen Screw M10 x 30
-
65232001600 Hex. Nut M10Hex. Nut M10
-
66293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
67293750020 Tie Rap 838 mmTie Rap 838 mm
-
68274000400 Muffler SupportMuffler Support
-
69205582560 Socket Screw M8 x 25 (Scotch Grip)Socket Screw M8 x 25 (Scotch Grip)
-
70413705200 Loctite 262, 50 mlLoctite 262, 50 ml
