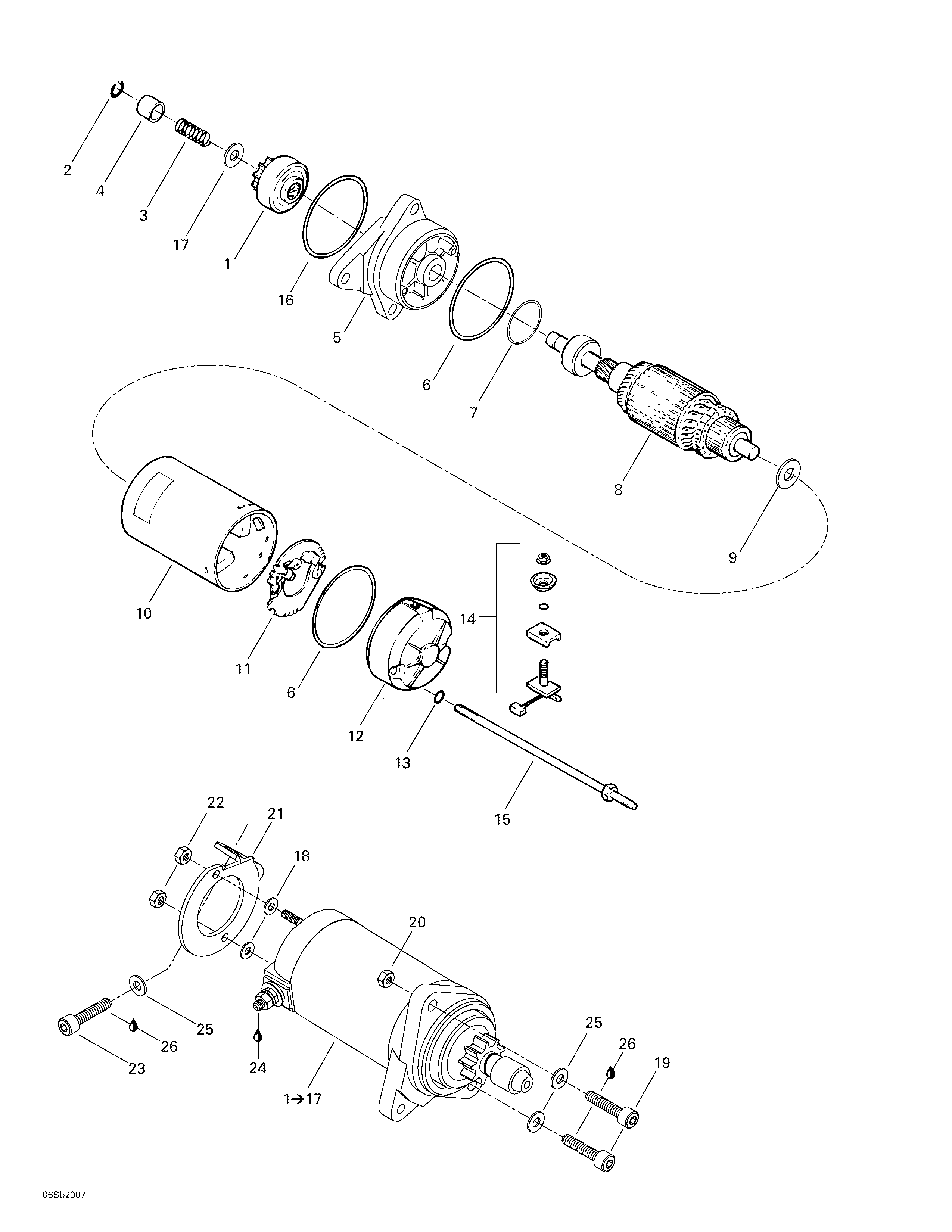

04- Starter для BRP GTX RFI, 5648/5658/5515/5516 - 2000
-
№АртикулНазвание
-
1278001497 Starter Ass'y. Includes 1 - 17.Starter Ass'y. Includes 1 - 17.
-
1278001106 Starter Clutch Ass'yStarter Clutch Ass'y
-
2410207700 CirclipCirclip
-
4278000254 Stopper BushingStopper Bushing
-
5278001520 Housing Ass'yHousing Ass'y
-
6278000695 O-RingO-Ring
-
7278000696 O-RingO-Ring
-
8278001108 ArmatureArmature
-
9278000056 Thrust WasherThrust Washer
-
10278001109 Yoke Ass'yYoke Ass'y
-
11278001296 Brush HolderBrush Holder
-
12278001111 Rear CoverRear Cover
-
13278000060 O-RingO-Ring
-
14278001298 Brush Starter KitBrush Starter Kit
-
15278000170 Retainer StudRetainer Stud
-
16278000694 O-RingO-Ring
-
17278001105 WasherWasher
-
18234051600 Washer 5 mmWasher 5 mm
-
19205084560 Socket Head Screw M8 x 45Socket Head Screw M8 x 45
-
20232581650 Elastic Stop Nut M8Elastic Stop Nut M8
-
21270000467 Starter SupportStarter Support
-
22232551600 Nut M5Nut M5
-
23205081660 Socket Head Screw M8 x 16Socket Head Screw M8 x 16
-
24293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
25234081600 Washer 8 mmWasher 8 mm
-
26413705200 Loctite 262, 50 mlLoctite 262, 50 ml
