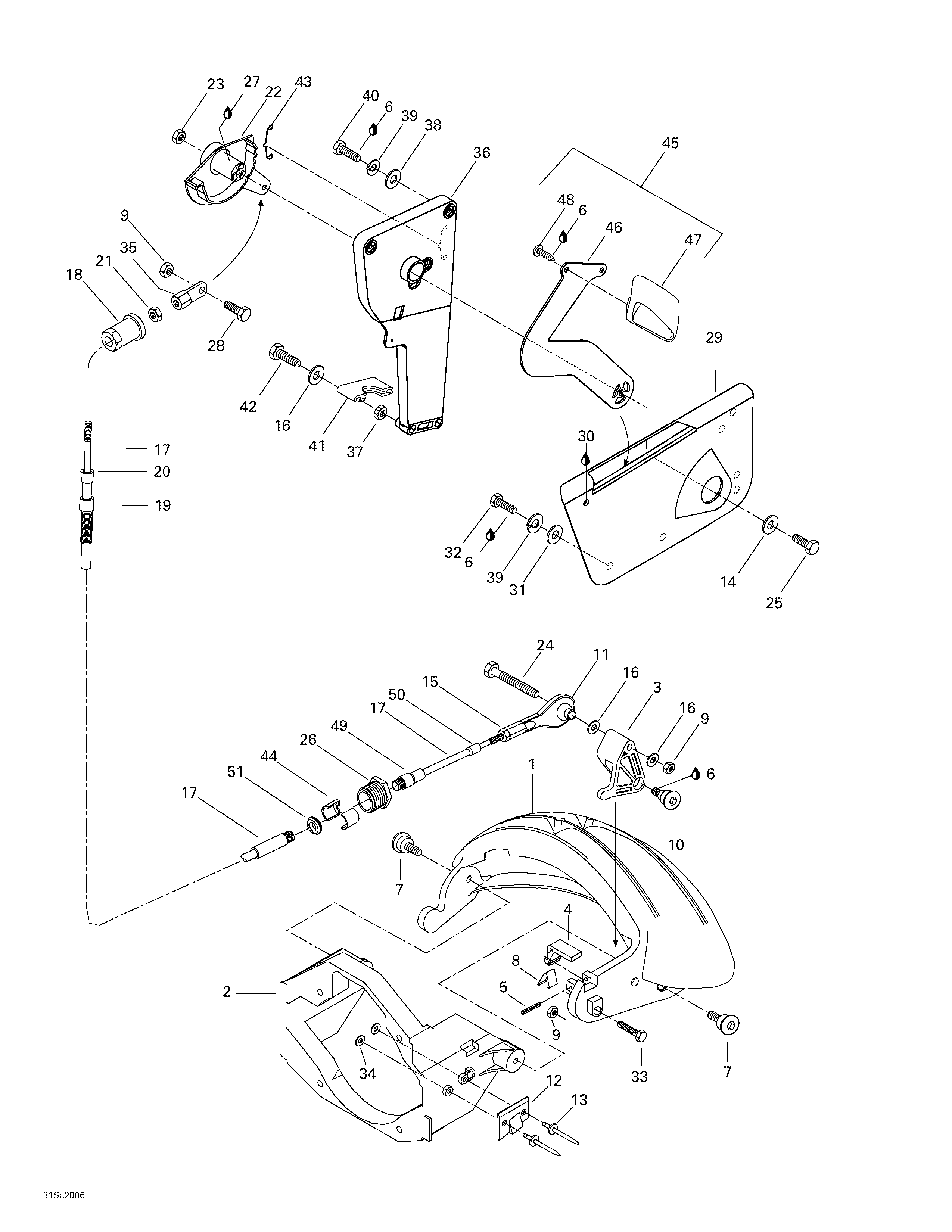

05- Reverse для BRP GTX, 5653/5669/5544/5545 - 2000
-
№АртикулНазвание
-
1271000947 Gate - ReverseGate - Reverse
-
2271000778 Gate SupportGate Support
-
3271000583 Cable LeverCable Lever
-
4271000430 Lever HookLever Hook
-
5211400009 Roll Pin 1/8Roll Pin 1/8
-
6293800060 Loctite 243, 10mlLoctite 243, 10ml
-
7211000007 ScrewScrew
-
8271000431 SpringSpring
-
9232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
10211000077 ScrewScrew
-
11277000153 Ball JointBall Joint
-
12271000485 Pawl-stopPawl-stop
-
13293150043 Pop Rivet 3/16Pop Rivet 3/16
-
14234061600 Flat Washer 6 mmFlat Washer 6 mm
-
15212100005 Nut 10-32 UNFNut 10-32 UNF
-
16234061600 Washer M6Washer M6
-
17277000757 Reverse cable Ass'y. Includes 17 - 21.Reverse cable Ass'y. Includes 17 - 21.
-
18277000167 Knob AdjusterKnob Adjuster
-
19277000473 Large BootLarge Boot
-
20277000466 Small BootSmall Boot
-
21212100005 Nut 10-32 UNFNut 10-32 UNF
-
22271000585 Lever Interior. Includes 22 - 23.Lever Interior. Includes 22 - 23.
-
23232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
24207066060 Screw M6 x 60Screw M6 x 60
-
25207161660 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
26277000052 Cable LockCable Lock
-
27293550010 Synthetic Grease, 400 grSynthetic Grease, 400 gr
-
28211000022 Screw Hex. M6 x 25Screw Hex. M6 x 25
-
29271001055 Housing Reverse HandleHousing Reverse Handle
-
30296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
31211200033 WasherWasher
-
32207151260 Screw Hex. M5 x 12Screw Hex. M5 x 12
-
33207162560 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
34211200035 WasherWasher
-
35277000646 JointJoint
-
36271000584 Reverse Cable Support. Includes 36 - 37.Reverse Cable Support. Includes 36 - 37.
-
37232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
38234052600 Washer 5 mmWasher 5 mm
-
39234151601 Lock Washer 5 mmLock Washer 5 mm
-
40207151660 Hex. Screw M5 x 16Hex. Screw M5 x 16
-
41277000162 Thrust SupportThrust Support
-
42207065060 Hex. Screw M6 x 50Hex. Screw M6 x 50
-
43271000612 SpringSpring
-
44277000055 Half RingHalf Ring
-
45271000586 Handle Reverse Ass'y. Includes 45 - 48.Handle Reverse Ass'y. Includes 45 - 48.
-
46271000613 LeverLever
-
47271000614 Reverse HandleReverse Handle
-
48208451260 Screw M5 x 12Screw M5 x 12
-
49277000473 Large BootLarge Boot
-
50277000466 Small BootSmall Boot
-
51211100009 Rubber WasherRubber Washer
