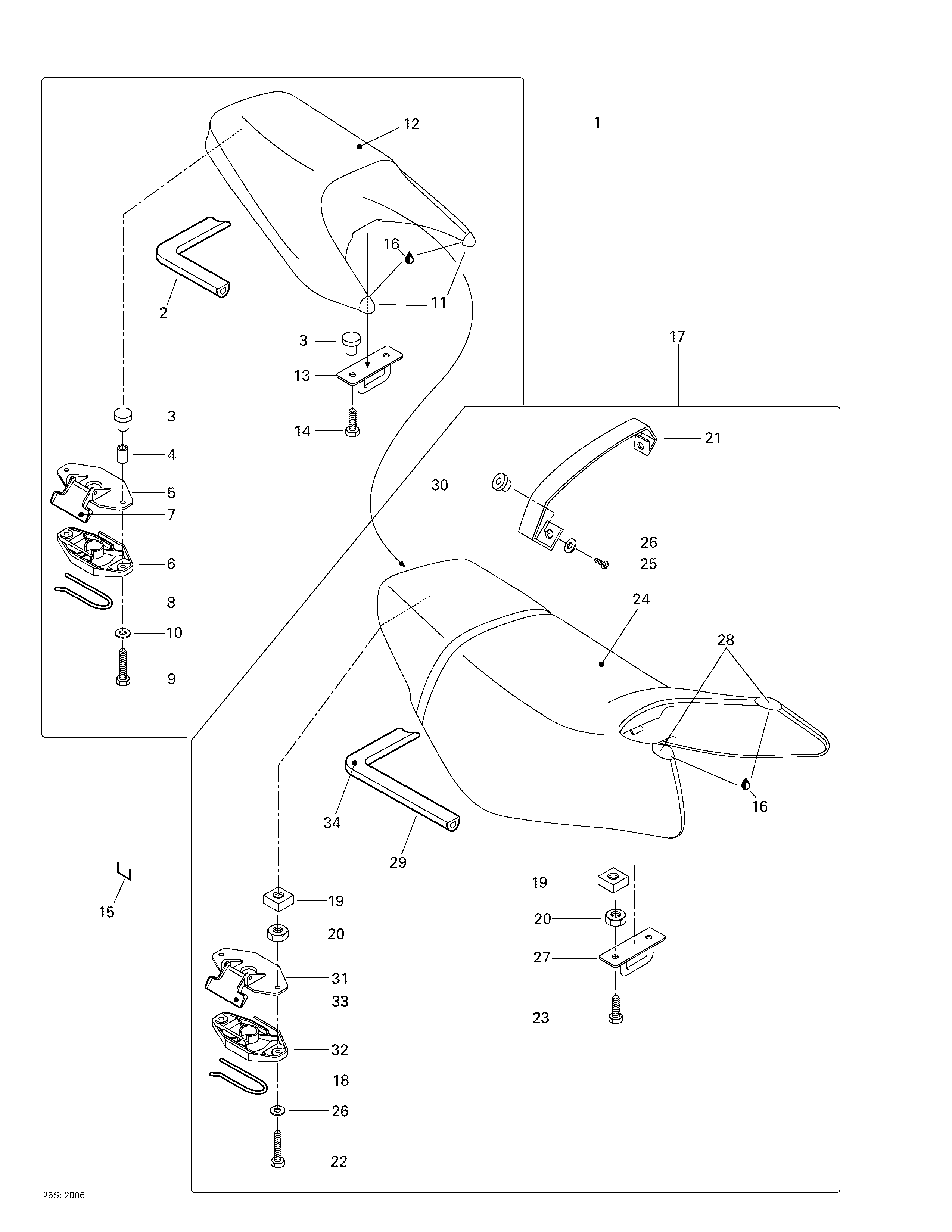

09- Seat And Engine Cover для BRP GTX, 5653/5669/5544/5545 - 2000
-
№АртикулНазвание
-
1269000620 Rear Seat Ass'y (Red). Includes 1 - 14. GTX 5653/5669 (RED).Rear Seat Ass'y (Red). Includes 1 - 14. GTX 5653/5669 (RED).
-
269000630 Rear Seat Ass'y (Blue). GTX 5544/5545 (BLUE).Rear Seat Ass'y (Blue). GTX 5544/5545 (BLUE).
-
2293200017 Neoprene SealNeoprene Seal
-
3293100003 Nut M6Nut M6
-
4291000532 SpacerSpacer
-
5269700020 Latch CoverLatch Cover
-
6269000015 Latch BaseLatch Base
-
7269000016 Latch LeverLatch Lever
-
8269700017 SpringSpring
-
9207363560 Hex. Screw M6 x 35 (Scotch Grip)Hex. Screw M6 x 35 (Scotch Grip)
-
10234061600 Washer 6 mmWasher 6 mm
-
11269000632 Rear Seat Corner RH. GTX 5653/5669 (RED).Rear Seat Corner RH. GTX 5653/5669 (RED).
-
269000633 Rear Seat Corner LH. GTX 5653/5669 (RED).Rear Seat Corner LH. GTX 5653/5669 (RED).
-
269000636 Rear Seat Corner RH. GTX 5544/5545 (BLUE).Rear Seat Corner RH. GTX 5544/5545 (BLUE).
-
269000637 Rear Seat Corner LH. GTX 5544/5545 (BLUE).Rear Seat Corner LH. GTX 5544/5545 (BLUE).
-
12269000612 Rear Seat Cover (Red). GTX 5653/5669 (RED).Rear Seat Cover (Red). GTX 5653/5669 (RED).
-
269000635 Rear Seat Cover (Blue). GTX 5544/5545 (BLUE).Rear Seat Cover (Blue). GTX 5544/5545 (BLUE).
-
13291001357 Keeper BaseKeeper Base
-
14205561660 Hex. Screw M6 x 16 (Scotch Grip)Hex. Screw M6 x 16 (Scotch Grip)
-
15293730005 StapleStaple
-
16413705800 Loctite 414, 29.5 c.cLoctite 414, 29.5 c.c
-
17269000615 Front Seat Ass'y (Silver). Includes 17 - 33.Front Seat Ass'y (Silver). Includes 17 - 33.
-
18269700017 SpringSpring
-
19269500252 Nut Housing Ass'y. Includes 19 - 20.Nut Housing Ass'y. Includes 19 - 20.
-
20232061600 Elastic Stop Nut M6Elastic Stop Nut M6
-
21269000629 StrapStrap
-
22207363060 Hex. Screw M6 x 30 (Scotch Grip)Hex. Screw M6 x 30 (Scotch Grip)
-
23205562060 Hex. Screw M6 x 20 (Scotch Grip)Hex. Screw M6 x 20 (Scotch Grip)
-
24269000616 Front Seat Cover (Silver)Front Seat Cover (Silver)
-
25205961660 Socket Head Screw M6 x 16 (Scotch Grip)Socket Head Screw M6 x 16 (Scotch Grip)
-
26234061600 Washer 6 mmWasher 6 mm
-
27291001357 Keeper BaseKeeper Base
-
28269000617 Seat CornerSeat Corner
-
29293200017 Neoprene SealNeoprene Seal
-
30293100003 Nut M6Nut M6
-
31269700020 Latch CoverLatch Cover
-
32269000015 Latch BaseLatch Base
-
33269000016 Latch LeverLatch Lever
-
34293800048 Loctite 401, 1ozLoctite 401, 1oz
