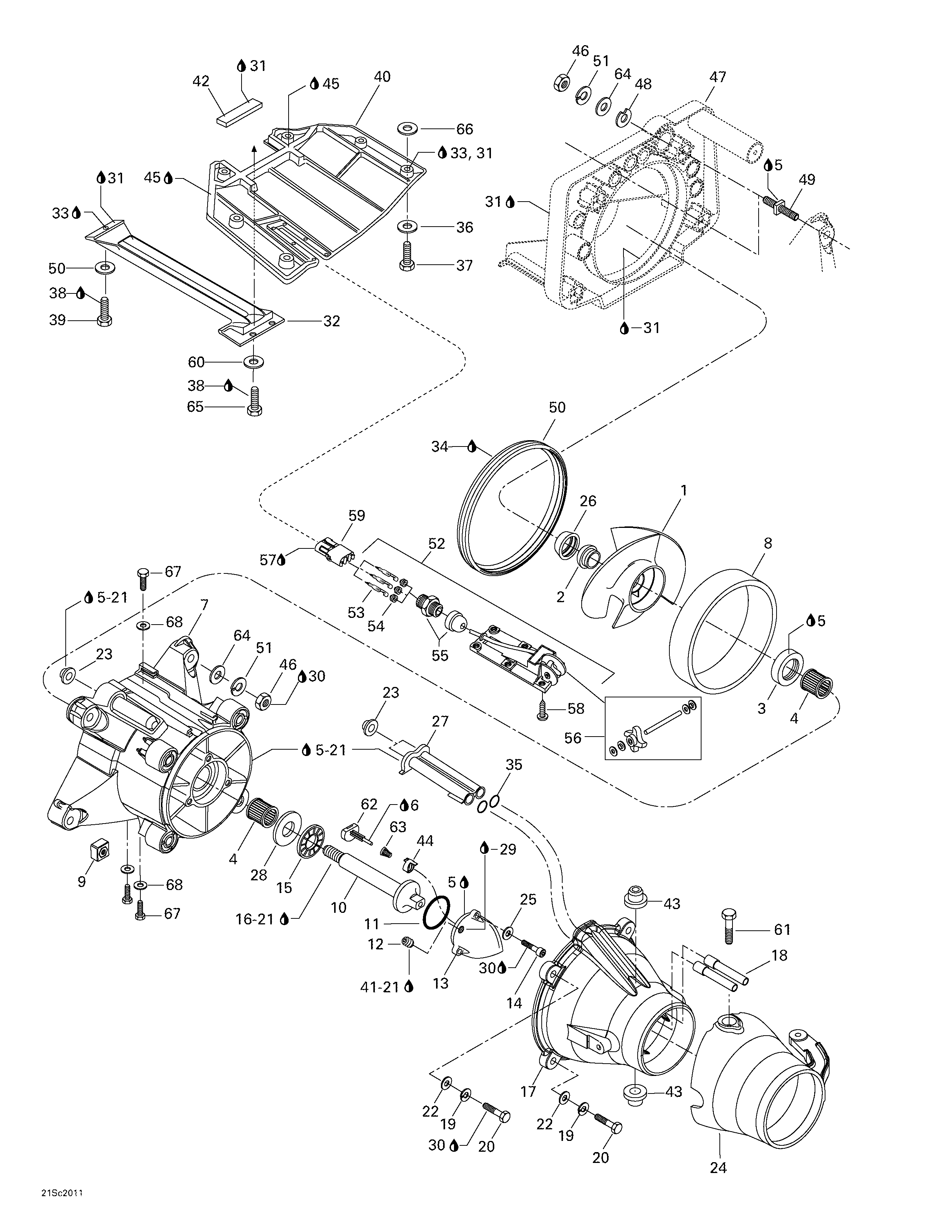

05- Propulsion System для BRP RX, 5513/5514 - 2000
-
№АртикулНазвание
-
1271000920 Stainless Steel Impeller Ass'yStainless Steel Impeller Ass'y
-
2271000516 Impeller BootImpeller Boot
-
3293200065 Double Lip SealDouble Lip Seal
-
4293350017 Needle BearingNeedle Bearing
-
5293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
6293550025 Synthetic GreaseSynthetic Grease
-
7271001143 Impeller Housing Ass'y. Includes 7 - 9.Impeller Housing Ass'y. Includes 7 - 9.
-
8271000653 Wear-RingWear-Ring
-
9211100033 Square NutSquare Nut
-
10271000965 Impeller ShaftImpeller Shaft
-
11293300011 O-RingO-Ring
-
12211500001 Pipe Plug Socket 1/8-27 NPTPipe Plug Socket 1/8-27 NPT
-
13271000971 Impeller CoverImpeller Cover
-
14205062560 Socket Head Screw M5 x 25Socket Head Screw M5 x 25
-
15293350022 Thrust BearingThrust Bearing
-
16413705200 Loctite 262, 50 mlLoctite 262, 50 ml
-
17271001079 Venturi Ass'y. Includes 17 - 18.Venturi Ass'y. Includes 17 - 18.
-
18271001133 Siphon TubeSiphon Tube
-
19234181601 Lock-Washer 8 mmLock-Washer 8 mm
-
20207084560 Hex. Screw M8 x 75Hex. Screw M8 x 75
-
21293800041 Primer LoctitePrimer Loctite
-
22293050001 Flat Washer 8 mmFlat Washer 8 mm
-
23293250084 O-RingO-Ring
-
24271001007 Steering NozzleSteering Nozzle
-
25234061600 Flat Washer 6 mmFlat Washer 6 mm
-
26271000517 RingRing
-
27271000785 Water OutletWater Outlet
-
28293350020 Thrust WasherThrust Washer
-
29293600011 Synthetic OilSynthetic Oil
-
30293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
31293800066 Sealant 5900Sealant 5900
-
32271000763 Inlet GrateInlet Grate
-
33296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
34413708300 Loctite Gel 454, 20gLoctite Gel 454, 20g
-
35293300013 O-RingO-Ring
-
36234081600 Washer 8 mmWasher 8 mm
-
37207383060 Hex. Screw M8 x 30 (Scotch Grip)Hex. Screw M8 x 30 (Scotch Grip)
-
38293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
39207382560 Hex. Screw M8 x 25Hex. Screw M8 x 25
-
40271001141 Riding PlateRiding Plate
-
41293800013 Loctite 56765, Pipe Sealant, 250 mlLoctite 56765, Pipe Sealant, 250 ml
-
42293200003 SealSeal
-
43293900007 Bushing (Venturi)Bushing (Venturi)
-
44271001107 SliderSlider
-
45293800066 Scellant Loctite 5900, 300 mlScellant Loctite 5900, 300 ml
-
46232001600 Nut M10Nut M10
-
47271001132 Pump SupportPump Support
-
48272000053 ShimShim
-
49250300010 StudStud
-
50293200051 Neoprene SealNeoprene Seal
-
51234101601 Lock Washer 10 mmLock Washer 10 mm
-
52278001595 Speed Sensor. Includes 52 - 56.Speed Sensor. Includes 52 - 56.
-
53278000222 Male Terminal (18 gauge)Male Terminal (18 gauge)
-
54278000218 Wire Seal (16 and 18 gauge - green)Wire Seal (16 and 18 gauge - green)
-
55293710031 Electric ConnectorElectric Connector
-
56295500108 Paddle Wheel KitPaddle Wheel Kit
-
57293550004 Dielectric Grease, 150 grDielectric Grease, 150 gr
-
58250000020 Screw M5 x 10 (Scotch Grip)Screw M5 x 10 (Scotch Grip)
-
59278000281 Female Housing (3 Circuits)Female Housing (3 Circuits)
-
60234061600 Flat Washer 6 mmFlat Washer 6 mm
-
61211000127 Allen Screw S.GripAllen Screw S.Grip
-
62271001124 PusherPusher
-
63271001108 SpringSpring
-
64234002600 Flat Washer 10 mmFlat Washer 10 mm
-
65207161660 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
66234002600 Flat Washer M10Flat Washer M10
-
67250000040 Hex Screw PlastiteHex Screw Plastite
-
68234051600 Flat WasherFlat Washer
