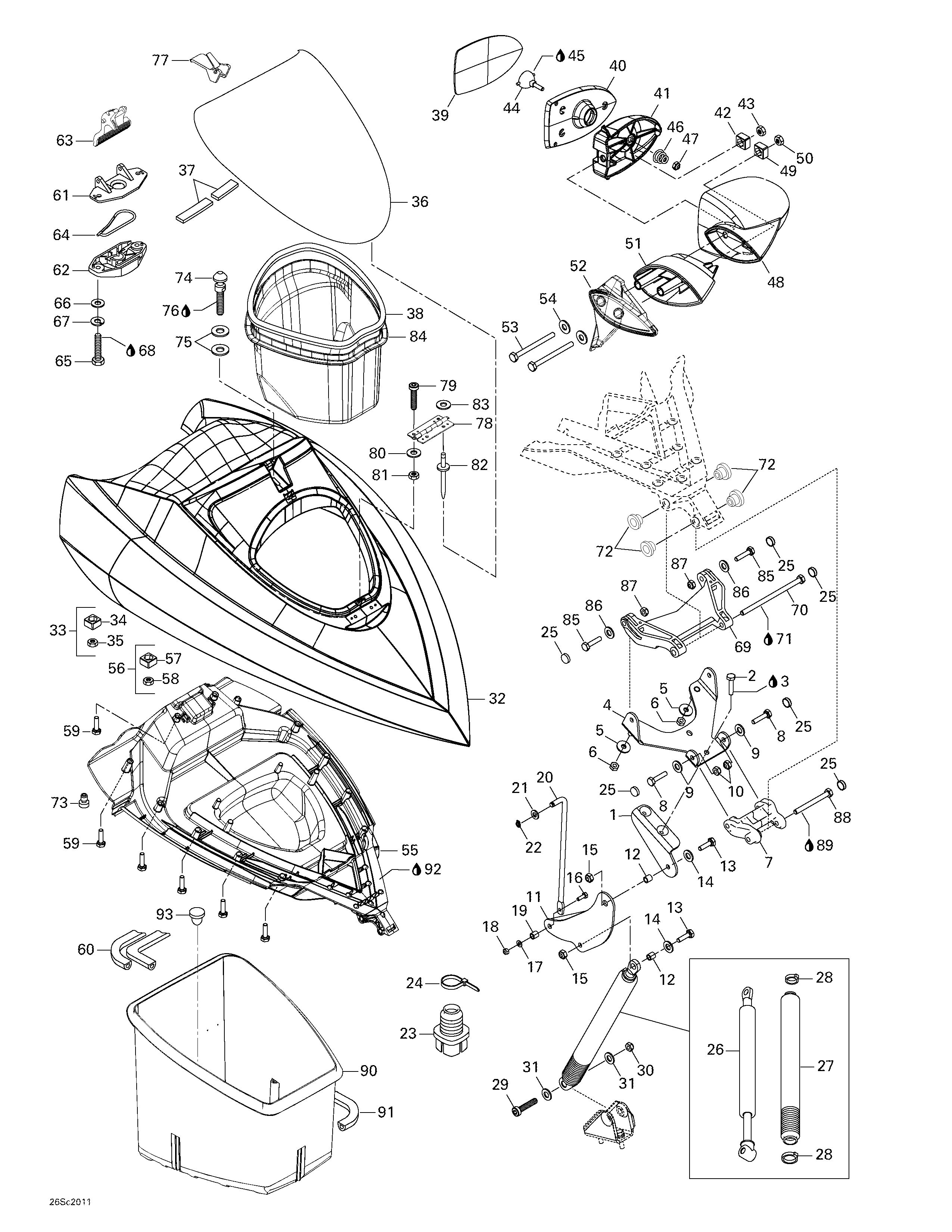

09- Front Storage Compartment для BRP RX, 5513/5514 - 2000
-
№АртикулНазвание
-
1269500846 Lever-SupportLever-Support
-
2207162060 Screw Hex. M6x20Screw Hex. M6x20
-
3293800060 Loctite 243, 10mlLoctite 243, 10ml
-
4269500708 Pivot SupportPivot Support
-
5234062600 Washer Flat M6Washer Flat M6
-
6232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
7269500704 Front ArmFront Arm
-
8211000022 Hex Screw Special M6 X 25Hex Screw Special M6 X 25
-
9234061600 Washer Flat M6Washer Flat M6
-
10232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
11269500840 LeverLever
-
12291000536 SpacerSpacer
-
13207162060 Hex Screw M6X20Hex Screw M6X20
-
14234062600 Washer Flat M6Washer Flat M6
-
15232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
16207141660 Hex Screw M4X16Hex Screw M4X16
-
17234041600 Washer Flat M4Washer Flat M4
-
18232541600 Elastic Stop Nut M4Elastic Stop Nut M4
-
19269500841 SpacerSpacer
-
20269500842 RodRod
-
21234061600 Washer Flat M6Washer Flat M6
-
22293370005 Circlip 6MMCirclip 6MM
-
23293720063 Cable GrommetCable Grommet
-
24414115200 Tie RapTie Rap
-
25414436900 Snap Cap BlackSnap Cap Black
-
26269500843 Gaz Shock Ass'yGaz Shock Ass'y
-
27269500845 BellowBellow
-
28293750001 Tie Rap 94mmTie Rap 94mm
-
29205564560 Allen Screw M6 X 45Allen Screw M6 X 45
-
30232361600 Nut M6Nut M6
-
31234062600 Washer M6Washer M6
-
32269500903 Cover. Includes 32 - 35.Cover. Includes 32 - 35.
-
33269500252 Housing-Nut Ass'y. Includes 33 - 35.Housing-Nut Ass'y. Includes 33 - 35.
-
34269500108 Housing-NutHousing-Nut
-
35232061600 Hexagonal Nut M6Hexagonal Nut M6
-
36269500700 Access CoverAccess Cover
-
37293200003 Tray SealTray Seal
-
38293200017 Neoprene SealNeoprene Seal
-
39269500687 Right MirrorRight Mirror
-
269500788 Left MirrorLeft Mirror
-
40269500697 Frame MirrorFrame Mirror
-
41269500807 Housing SupportHousing Support
-
42269500813 Nut Housing Ass'yNut Housing Ass'y
-
43232581650 Elastic Stop NutElastic Stop Nut
-
44269500079 Mirror Ball JointMirror Ball Joint
-
45293550010 Synthetic GreaseSynthetic Grease
-
46269500453 Mirror SpringMirror Spring
-
47232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
48269500816 Mirror Shell RHMirror Shell RH
-
269500831 Mirror Shell LHMirror Shell LH
-
49269500813 Nut Housing Ass'yNut Housing Ass'y
-
50232581650 Elastic Stop NutElastic Stop Nut
-
51269500818 Mirror Support RHMirror Support RH
-
269500819 Mirror Support LHMirror Support LH
-
52269500792 Spacer RHSpacer RH
-
269500793 Spacer LHSpacer LH
-
53230082060 Hexagonal Screw M8X120Hexagonal Screw M8X120
-
54234082600 Flat Washer M8Flat Washer M8
-
55269500702 Lower StrorageLower Strorage
-
56269500252 Nut Housing Ass'y. Includes 56 - 58.Nut Housing Ass'y. Includes 56 - 58.
-
57269500108 Nut HousingNut Housing
-
58232061600 Hexagonal Nut M6Hexagonal Nut M6
-
59241141360 Hex. Flanged Screw K40 X 13Hex. Flanged Screw K40 X 13
-
60293200017 Neoprene SealNeoprene Seal
-
61269700020 Latch CoverLatch Cover
-
62269000015 Latch BaseLatch Base
-
63269000016 Latch LeverLatch Lever
-
64269700017 Latch SpringLatch Spring
-
65207063060 Hexagonal Screw M6X30Hexagonal Screw M6X30
-
66234061600 Flat Washer M6Flat Washer M6
-
67234161601 Lock Washer M6Lock Washer M6
-
68293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
69269500705 Rear ArmRear Arm
-
70230060060 Hexagonal Screw M6X100Hexagonal Screw M6X100
-
71293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
72269500706 SleeveSleeve
-
73293830005 Rubber PlugRubber Plug
-
74291001242 Latch StudLatch Stud
-
75234062600 Flat WasherFlat Washer
-
76293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
77269500530 LatchLatch
-
78269500338 HingeHinge
-
79205451660 Socket Screw M5X16Socket Screw M5X16
-
80234052600 Flat Washer M5Flat Washer M5
-
81232551600 Elastic Stop NutElastic Stop Nut
-
82204000081 Rivet 3/16Rivet 3/16
-
83234052600 Flat Washer M5Flat Washer M5
-
84269500339 Box GlovesBox Gloves
-
85211000022 Hexagonal Screw M6 x 25Hexagonal Screw M6 x 25
-
86234061600 Flat Washer M6Flat Washer M6
-
87232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
88207066060 Hexagonal Screw M6 x 60Hexagonal Screw M6 x 60
-
89293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
90269500691 Strorage TrayStrorage Tray
-
91293200020 Seal TraySeal Tray
-
92413708300 Loctite 454, 20gLoctite 454, 20g
-
93293830005 Rubber PlugRubber Plug
