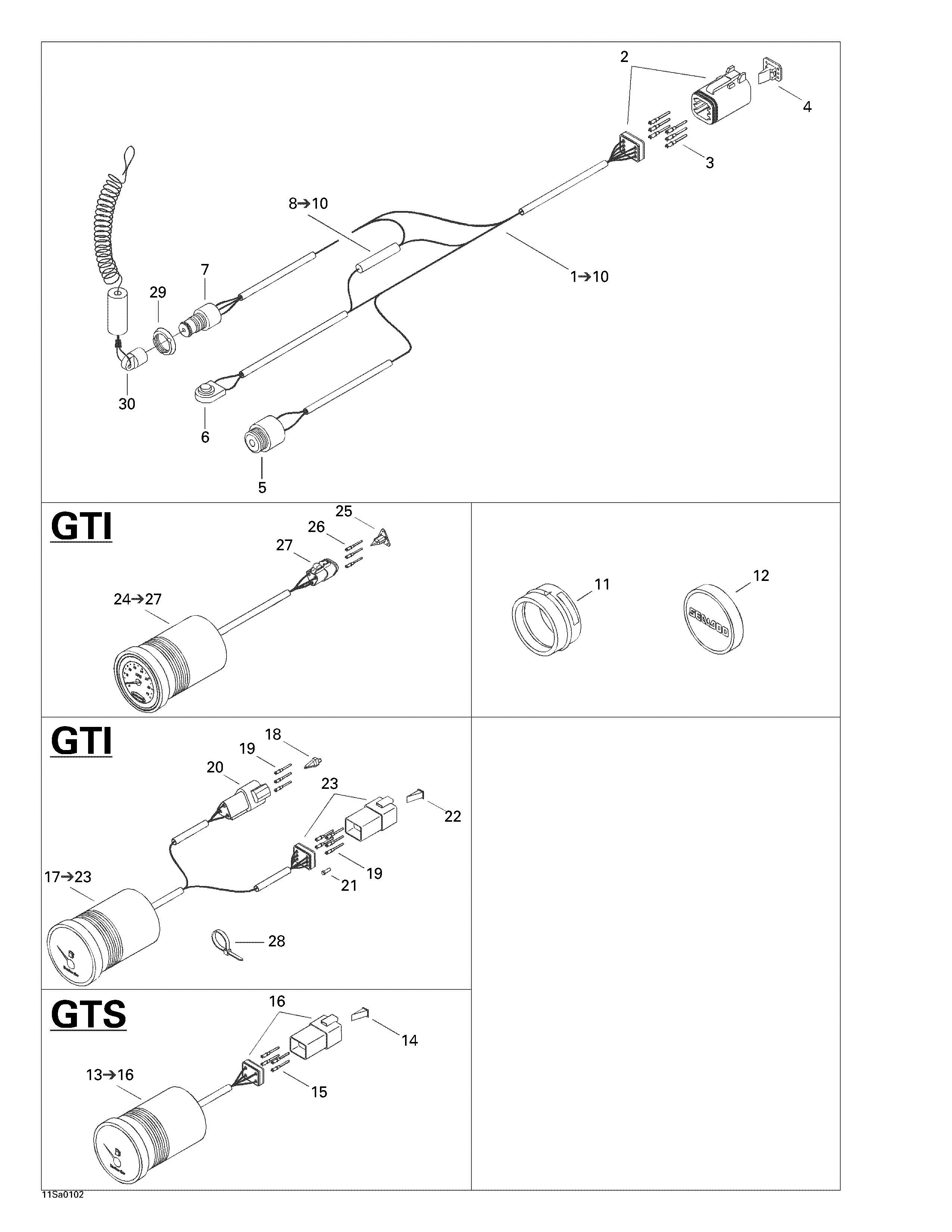

10- Electrical Accessories для BRP GTI, 5522/5523 - 2001
-
№АртикулНазвание
-
1278001659 Steering Harness. Includes 1 - 10.Steering Harness. Includes 1 - 10.
-
2278000736 Male Housing (6 Circuits)Male Housing (6 Circuits)
-
3278000632 Female Terminal (16-18 Gauge)Female Terminal (16-18 Gauge)
-
4278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
7278001589 Safety SwitchSafety Switch
-
8278000230 Male Terminal (20 Gauge)Male Terminal (20 Gauge)
-
9278001008 Insulating Sheath (Male Terminal)Insulating Sheath (Male Terminal)
-
10293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
11293720047 Gauge SupportGauge Support
-
12293000068 Gauge Cap. GTS 5520/5521.Gauge Cap. GTS 5520/5521.
-
13278001622 Oil / Fuel Gauge. Includes 13 - 16. GTS 5520/5521.Oil / Fuel Gauge. Includes 13 - 16. GTS 5520/5521.
-
14278000636 (Female) Secondary Lock (4 Circuits) (Deutsch). GTS 5520/5521.(Female) Secondary Lock (4 Circuits) (Deutsch). GTS 5520/5521.
-
15278001664 Male Terminal. GTS 5520/5521.Male Terminal. GTS 5520/5521.
-
16278000635 Female Housing (4 Circuits). GTS 5520/5521.Female Housing (4 Circuits). GTS 5520/5521.
-
17278001621 Oil / Fuel Gauge. Includes 17 - 23. GTI 5522/5523.Oil / Fuel Gauge. Includes 17 - 23. GTI 5522/5523.
-
18409207600 (Male) Secondary Lock (3 Circuits). GTI 5522/5523.(Male) Secondary Lock (3 Circuits). GTI 5522/5523.
-
20409207000 Female Housing (3 Circuits). GTI 5522/5523.Female Housing (3 Circuits). GTI 5522/5523.
-
21293000052 Sealing Cap. GTI 5522/5523.Sealing Cap. GTI 5522/5523.
-
22278000735 (Female) Secondary Lock (6 Circuits) (Deutsch). GTI 5522/5523.(Female) Secondary Lock (6 Circuits) (Deutsch). GTI 5522/5523.
-
23270000137 Female Housing (6 Circuits). GTI 5522/5523.Female Housing (6 Circuits). GTI 5522/5523.
-
24278001620 Speedometer. Includes 24 - 27. GTI 5522/5523.Speedometer. Includes 24 - 27. GTI 5522/5523.
-
25409207200 (Female) Secondary Lock (3 Circuits) (Deutsch). GTI 5522/5523.(Female) Secondary Lock (3 Circuits) (Deutsch). GTI 5522/5523.
-
27409207300 Male Housing (3 Circuits). GTI 5522/5523.Male Housing (3 Circuits). GTI 5522/5523.
-
28414115200 Tie Rap. GTI 5522/5523.Tie Rap. GTI 5522/5523.
-
29278000508 Safety Switch NutSafety Switch Nut
-
30278001543 Safety Lanyard Ass'ySafety Lanyard Ass'y
