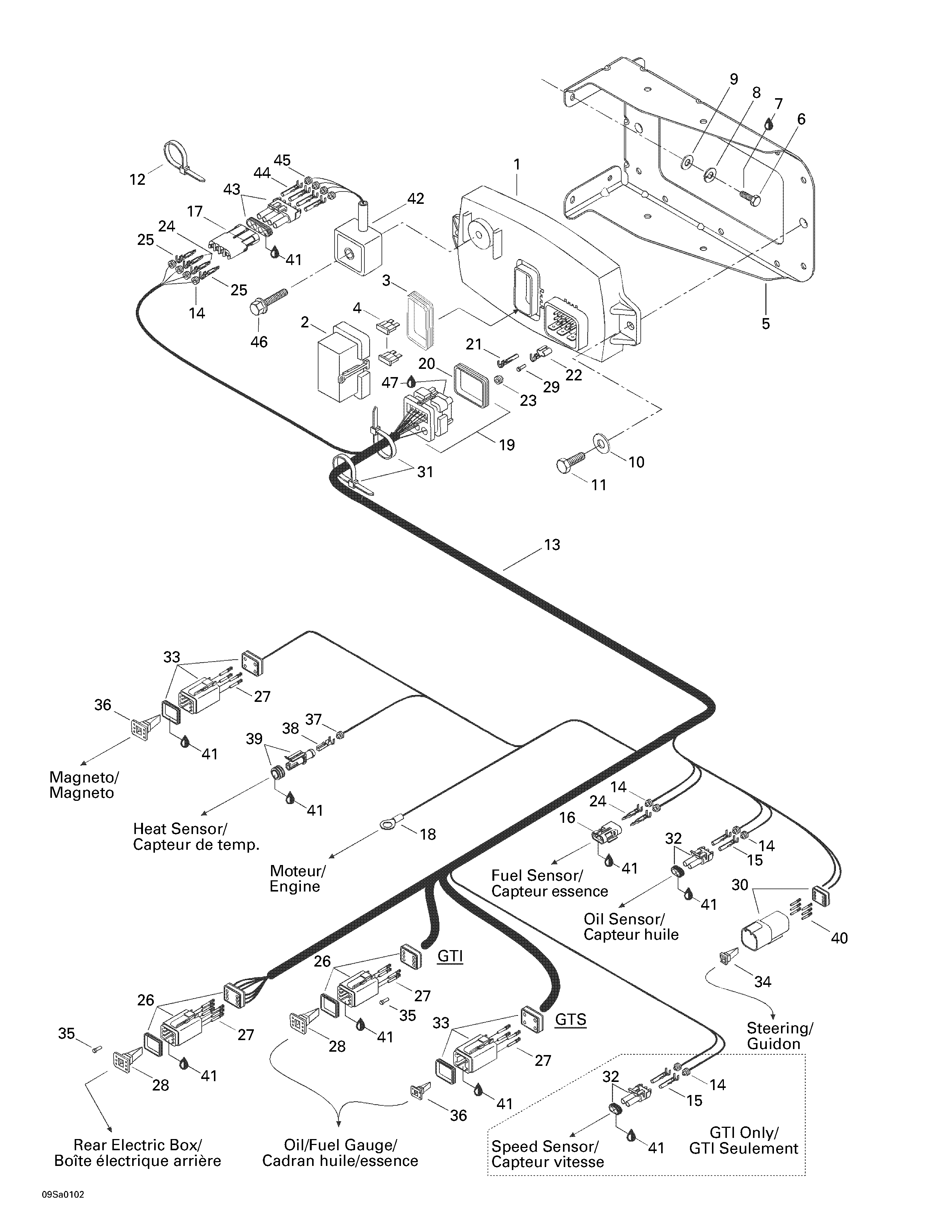

10- Electrical System для BRP GTI, 5522/5523 - 2001
-
№АртикулНазвание
-
1278001496 Electronic Module Ass'y. Includes 1 - 4.Electronic Module Ass'y. Includes 1 - 4.
-
2278001069 Fuse HolderFuse Holder
-
3278001070 SealSeal
-
4278000343 Fuse 15 AmpFuse 15 Amp
-
278000344 Fuse 5 AmpFuse 5 Amp
-
5278001644 Box Support Ass'yBox Support Ass'y
-
6243042060 Hex. Screw M4.8 x 20 (Plastite)Hex. Screw M4.8 x 20 (Plastite)
-
7293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
8211200043 Lock WasherLock Washer
-
9234052600 Flat Washer 5 mmFlat Washer 5 mm
-
10234062600 Flat Washer 6 mmFlat Washer 6 mm
-
11207361660 Hex. Screw M6 x 16 (Scotch Grip)Hex. Screw M6 x 16 (Scotch Grip)
-
12414115200 Tie RapTie Rap
-
13278001645 Main Harness Ass'y. Includes 13 - 40. GTS 5520/5521.Main Harness Ass'y. Includes 13 - 40. GTS 5520/5521.
-
278001660 Main Harness Ass'y. GTI 5522/5523.Main Harness Ass'y. GTI 5522/5523.
-
14278000218 Wire Seal (16-18 Gauge) (Green)Wire Seal (16-18 Gauge) (Green)
-
15278000223 Female Terminal (18 Gauge)Female Terminal (18 Gauge)
-
16278000217 Female Housing (2 Circuits)Female Housing (2 Circuits)
-
17278000394 Female Housing (4 Circuits)Female Housing (4 Circuits)
-
18278001165 Open Barrel 8 mmOpen Barrel 8 mm
-
19278000993 Male Housing. Includes 19 - 20.Male Housing. Includes 19 - 20.
-
20278001307 Wire SealWire Seal
-
21278000995 Female TerminalFemale Terminal
-
22278000994 Female TerminalFemale Terminal
-
23278000996 Wire SealWire Seal
-
24278000222 Male Terminal (18 Gauge)Male Terminal (18 Gauge)
-
25409004300 Male Terminal (16 Gauge)Male Terminal (16 Gauge)
-
26278000736 Male Housing (6 Circuits)Male Housing (6 Circuits)
-
27278000632 Female Terminal (16-18 Gauge)Female Terminal (16-18 Gauge)
-
28278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
29293000070 Sealing CapSealing Cap
-
30270000137 Female Housing (6 Circuits)Female Housing (6 Circuits)
-
31293750002 Tie Rap 130 mmTie Rap 130 mm
-
32278000220 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
33278000739 Male Housing (4 Circuits)Male Housing (4 Circuits)
-
34278000735 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
35293000052 Sealing CapSealing Cap
-
36278000738 Male Secondary Lock (4 Circuits)Male Secondary Lock (4 Circuits)
-
37278001013 Wire SealWire Seal
-
38278001014 Female TerminalFemale Terminal
-
39278001012 Male Housing (1 Circuits)Male Housing (1 Circuits)
-
40278000631 Male TerminalMale Terminal
-
41293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
42278001239 Rectifier Ass'y. Includes 42 - 45.Rectifier Ass'y. Includes 42 - 45.
-
43278000395 Male Housing (4 Circuits)Male Housing (4 Circuits)
-
44409007300 Female Terminal (16 Gauge)Female Terminal (16 Gauge)
-
45278000218 Wire SealWire Seal
-
46211000139 Hex. Tapping ScrewHex. Tapping Screw
-
47293550015 Deoxit Lubricant, SprayDeoxit Lubricant, Spray
