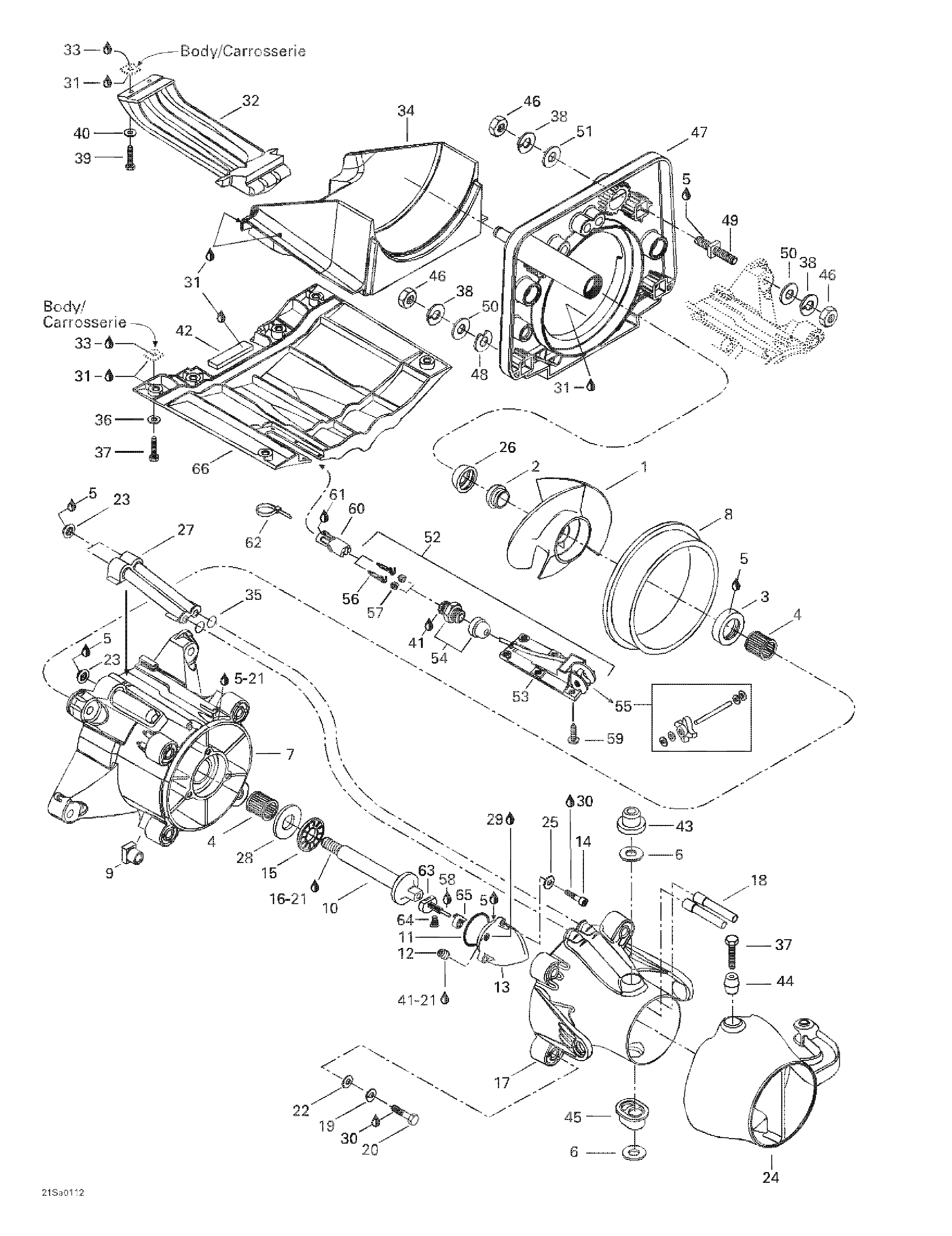

05- Propulsion System для BRP GTI, 5552 - 2001
-
№АртикулНазвание
-
1204160072 Stainless Steel Impeller Ass'yStainless Steel Impeller Ass'y
-
2271000516 Impeller BootImpeller Boot
-
3293200065 Lip SealLip Seal
-
4293350017 Needle BearingNeedle Bearing
-
5293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
6293050001 Washer 8 mmWasher 8 mm
-
7204160055 Impeller Housing Ass'y. Includes 7 - 9.Impeller Housing Ass'y. Includes 7 - 9.
-
8271000290 Wear-RingWear-Ring
-
9211100033 Nut HousingNut Housing
-
10271000291 Impeller ShaftImpeller Shaft
-
11293300011 O-RingO-Ring
-
12211500001 Pipe Plug Socket 1/8-27 NPTPipe Plug Socket 1/8-27 NPT
-
13271000895 Impeller CoverImpeller Cover
-
14205052060 Socket Head Screw M5 x 20Socket Head Screw M5 x 20
-
15293350019 Thrust BearingThrust Bearing
-
16293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
17271000851 Venturi Ass'y. Includes 17 - 18.Venturi Ass'y. Includes 17 - 18.
-
18271000464 Siphon TubeSiphon Tube
-
19234181601 Lock Washer 8 mmLock Washer 8 mm
-
20207087060 Hex. Screw M8 x 70Hex. Screw M8 x 70
-
21293800041 Loctite - Primer NLoctite - Primer N
-
22293050001 Washer 8 mmWasher 8 mm
-
23293250084 GasketGasket
-
24271000889 Steering NozzleSteering Nozzle
-
25234051600 Flat Washer 5 mmFlat Washer 5 mm
-
26271000517 RingRing
-
27271000972 Water OutletWater Outlet
-
28293350020 Thrust WasherThrust Washer
-
29293600011 Redline Pump Oil, 75W90, 12 x 6 ozRedline Pump Oil, 75W90, 12 x 6 oz
-
30293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
31293800066 Sealant Loctite 20166, 300mlSealant Loctite 20166, 300ml
-
32271000732 Inlet GrateInlet Grate
-
33296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
34271000576 ShoeShoe
-
35293300013 O-RingO-Ring
-
36234081600 Flat Washer 8 mmFlat Washer 8 mm
-
37207383060 Hex. Screw M8 x 30 (Scotch Grip)Hex. Screw M8 x 30 (Scotch Grip)
-
38234101601 Lock Washer 10 mmLock Washer 10 mm
-
39207162560 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
40234061600 Flat Washer 6 mmFlat Washer 6 mm
-
41293800013 Loctite 56765, Pipe Sealant, 250 mlLoctite 56765, Pipe Sealant, 250 ml
-
42293200003 Tray Seal (metre)Tray Seal (metre)
-
43293900001 Bushing (Venturi)Bushing (Venturi)
-
44271000122 SleeveSleeve
-
45293900010 Bushing PlasticBushing Plastic
-
46232001600 Hex. Nut M10Hex. Nut M10
-
47271000966 Pump SupportPump Support
-
48272000053 ShimShim
-
49250300010 StudStud
-
50234001600 Flat Washer 10 mmFlat Washer 10 mm
-
51234002600 Flat Washer 10 mm (Upper Holes)Flat Washer 10 mm (Upper Holes)
-
52278000970 Speed Sensor. Includes 52 - 57.Speed Sensor. Includes 52 - 57.
-
54293710031 Electric ConnectorElectric Connector
-
55295500108 Paddle Wheel KitPaddle Wheel Kit
-
58293550025 Synthetic Grease, 300mlSynthetic Grease, 300ml
-
59250000020 Phillips Screw M5 x 10 (Scotch Grip)Phillips Screw M5 x 10 (Scotch Grip)
-
60278000217 Female Housing (2 Circuits)Female Housing (2 Circuits)
-
61293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
62293750002 Tie Rap 130 mmTie Rap 130 mm
-
63271001124 Pusher Ass'yPusher Ass'y
-
64271001108 SpringSpring
-
65271001107 SliderSlider
-
66271000712 Riding PlateRiding Plate
