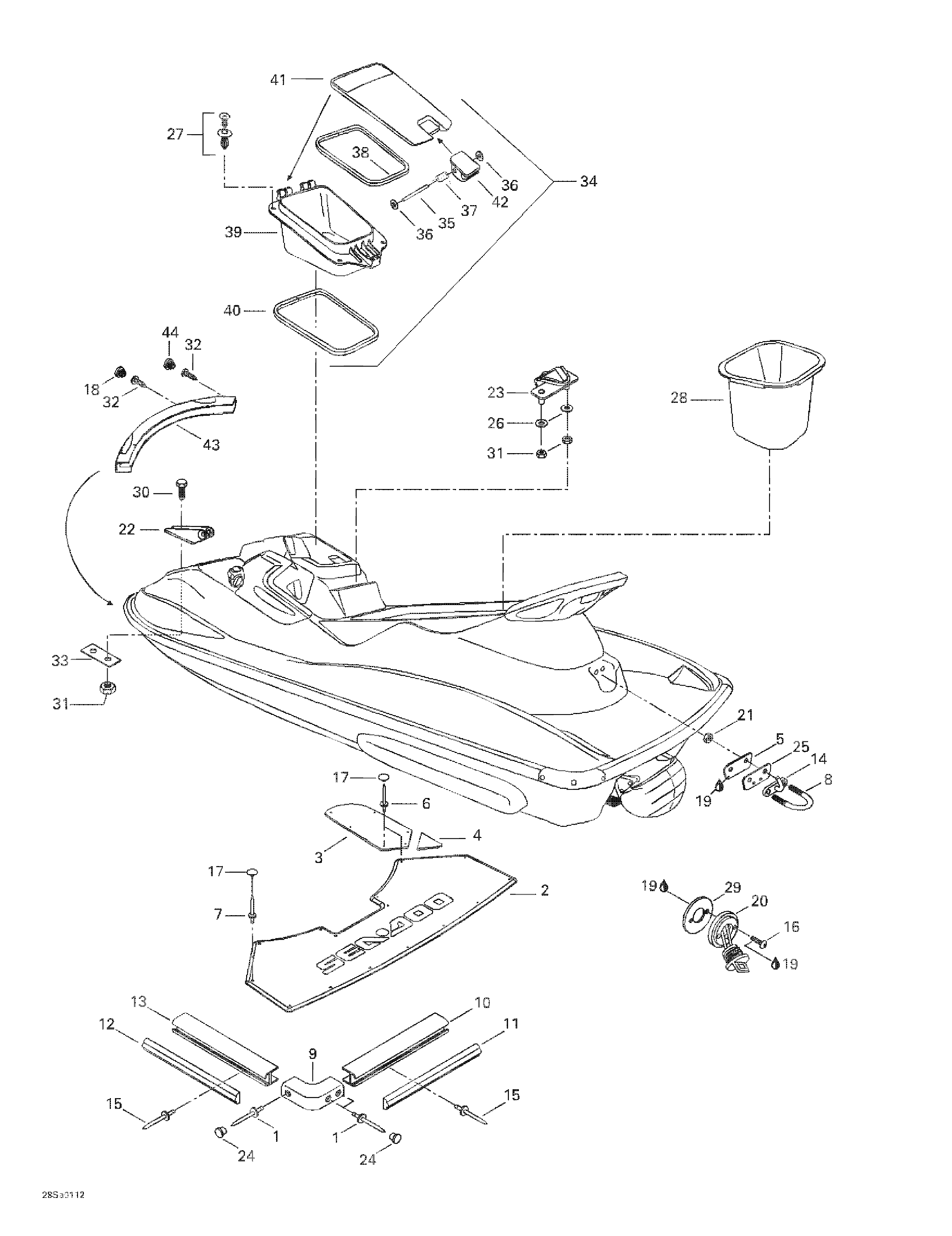

09- Body, Rear View для BRP GTI, 5552 - 2001
-
№АртикулНазвание
-
1293150013 Pop Rivet 3/16Pop Rivet 3/16
-
2291001053 Center Rear Carpet (Black)Center Rear Carpet (Black)
-
3291001051 R.H. Lateral Carpet (Black)R.H. Lateral Carpet (Black)
-
291001052 L.H. Lateral Carpet (Black)L.H. Lateral Carpet (Black)
-
4291000935 R.H. Anti-Skid CarpetR.H. Anti-Skid Carpet
-
291000936 L.H. Anti-Skid CarpetL.H. Anti-Skid Carpet
-
5291000307 Retainer PlateRetainer Plate
-
6293150016 Pop Rivet 1/8Pop Rivet 1/8
-
7293150036 Pop Rivet 1/8Pop Rivet 1/8
-
8292000011 U ClampU Clamp
-
9291001505 Bumper CornerBumper Corner
-
10291001226 Rear BumperRear Bumper
-
11291001227 Rear Bumper TrimRear Bumper Trim
-
12291001225 Side Bumper TrimSide Bumper Trim
-
13291001224 Side BumperSide Bumper
-
14291001232 Ski HookSki Hook
-
15293150005 Pop Rivet 3/16Pop Rivet 3/16
-
16211000021 Phillips ScrewPhillips Screw
-
17293000014 Shap Cap (Black)Shap Cap (Black)
-
18291001040 Bumper Plug (Black)Bumper Plug (Black)
-
19296000309 SiliconeSealant,AdchemClear4511SiliconeSealant,AdchemClear4511
-
20292000187 Drain PlugDrain Plug
-
21232581650 Elastic Stop Nut M8Elastic Stop Nut M8
-
22291000855 Spring Support (Strorage Cover)Spring Support (Strorage Cover)
-
23291001479 Seat HookSeat Hook
-
24291000339 Bumper Plug (Black)Bumper Plug (Black)
-
25291000544 Finition Plate (Black)Finition Plate (Black)
-
26234062600 Flat Washer 6 mmFlat Washer 6 mm
-
27211000088 Screw LockScrew Lock
-
28269500270 Rear Tray (Seat)Rear Tray (Seat)
-
29293250030 GasketGasket
-
30207162560 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
31232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
32211000037 Phillips Screw (Plastite)Phillips Screw (Plastite)
-
33291000079 Plate ReinforcementPlate Reinforcement
-
34269500438 Gloves Box Ass'y. Includes 34 - 42.Gloves Box Ass'y. Includes 34 - 42.
-
35211400008 PinPin
-
36211100002 Nut PushNut Push
-
37291000922 Spring LatchSpring Latch
-
38293250060 GasketGasket
-
39269500439 Box GlovesBox Gloves
-
40293250061 GasketGasket
-
42269500441 LatchLatch
-
43291001035 Nose Bumper (Black)Nose Bumper (Black)
-
44291001519 Bumper Plug (Black)Bumper Plug (Black)
