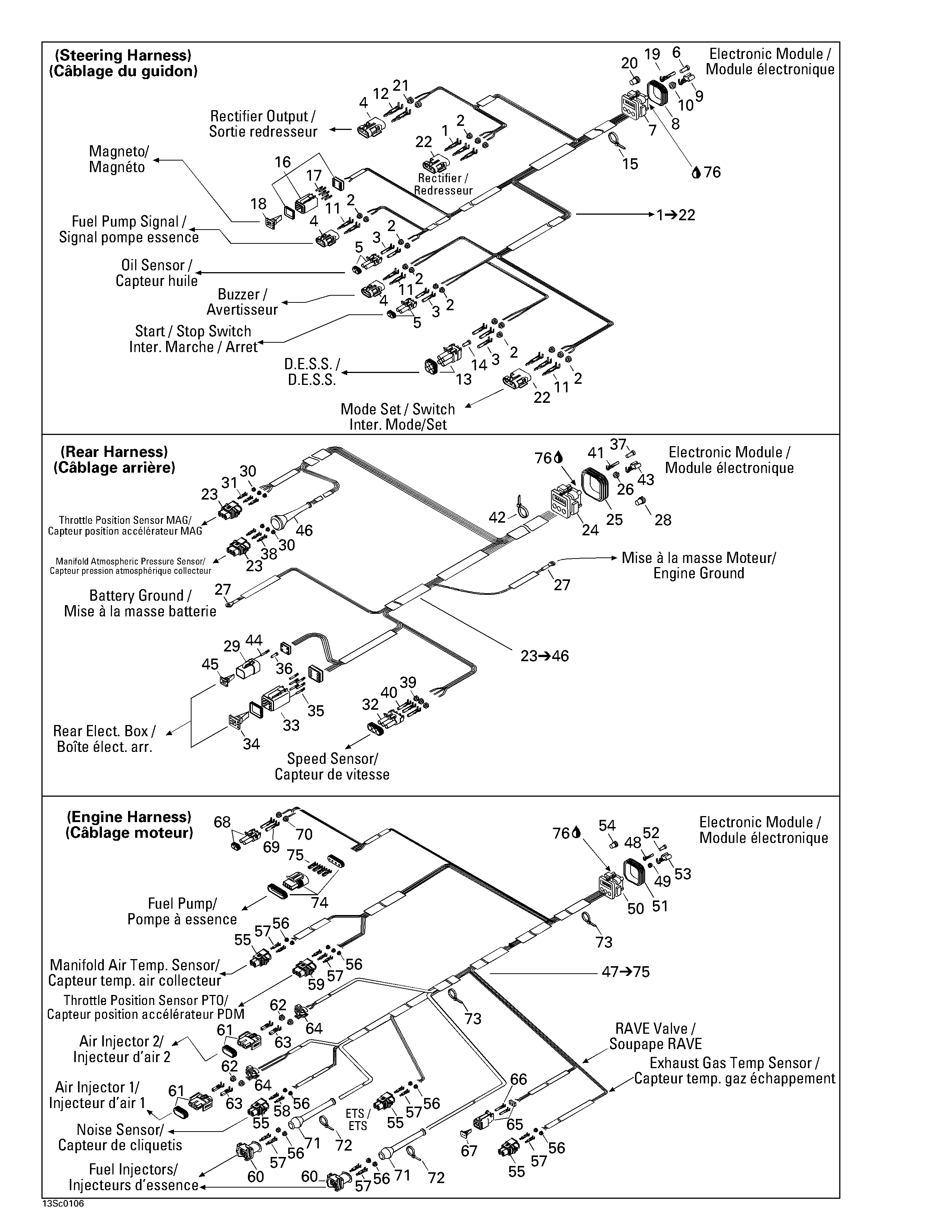

10- Electrical Harness для BRP GTX DI, 5528/5529/5540/5541 - 2001
-
№АртикулНазвание
-
1278001460 Steering Harness. Includes 1 - 22.Steering Harness. Includes 1 - 22.
-
1409004300 Male Terminal (Packard)Male Terminal (Packard)
-
2278000218 Wire Seal (16-18 Gauge) (Green) (Packard)Wire Seal (16-18 Gauge) (Green) (Packard)
-
3278000223 Female Terminal (18 Gauge)(Packard)Female Terminal (18 Gauge)(Packard)
-
4278000217 Female Housing (2 Circuits)(Packard)Female Housing (2 Circuits)(Packard)
-
5278000220 Male Housing (2 Circuits)(Packard)Male Housing (2 Circuits)(Packard)
-
6293000070 Sealing Cap (AMP)Sealing Cap (AMP)
-
7278001062 Male Housing (26 Circuits)(AMP). Includes 7 - 8.Male Housing (26 Circuits)(AMP). Includes 7 - 8.
-
8278001307 Gasket (AMP)Gasket (AMP)
-
9278000994 Female Terminal (AMP)Female Terminal (AMP)
-
10278000996 Wire Seal(AMP)Wire Seal(AMP)
-
11278000222 Male Terminal (18 Gauge)(Packard)Male Terminal (18 Gauge)(Packard)
-
12278001576 Male Terminal (Packard)Male Terminal (Packard)
-
13278000891 Male Housing (4 Circuits)(Packard)Male Housing (4 Circuits)(Packard)
-
14278000216 Wire Seal (Cap)(Packard)Wire Seal (Cap)(Packard)
-
15293750002 Tie Rap 130 mmTie Rap 130 mm
-
16278000736 Male Housing (6 Circuits)(Deutsch)Male Housing (6 Circuits)(Deutsch)
-
17278000632 Female Terminal (16-18 Gauge)(Deutsch)Female Terminal (16-18 Gauge)(Deutsch)
-
18278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
19278000995 Female Terminal (AMP)Female Terminal (AMP)
-
20409013900 Plug(AMP)Plug(AMP)
-
21278001505 Wire Seal(Packard)Wire Seal(Packard)
-
22278000281 Female Housing (3 Circuits)(Packard)Female Housing (3 Circuits)(Packard)
-
23278001456 Rear Harness. Includes 23 - 46.Rear Harness. Includes 23 - 46.
-
23278000997 Male Housing (3 Circuits)(Bosch)Male Housing (3 Circuits)(Bosch)
-
24278001063 Male Housing (26 Circuits) (AMP). Includes 24 - 25.Male Housing (26 Circuits) (AMP). Includes 24 - 25.
-
25278001307 Wire Seal (AMP)Wire Seal (AMP)
-
26278001223 Wire Seal(AMP)Wire Seal(AMP)
-
27409012600 Open BarrelOpen Barrel
-
28409013900 Plug(AMP)Plug(AMP)
-
29278001473 Male Housing (4 Circuits)(Deutsch)Male Housing (4 Circuits)(Deutsch)
-
30278000999 Wire Seal(AMP)Wire Seal(AMP)
-
31278000998 Female Terminal (AMP)Female Terminal (AMP)
-
32278000273 Male Housing (3 Circuits)(Packard)Male Housing (3 Circuits)(Packard)
-
33278000736 Male Housing (6 Circuits)(Deutsch)Male Housing (6 Circuits)(Deutsch)
-
34278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
35278000632 FemaleTerminal(16-18Gauge)(Deutsch)FemaleTerminal(16-18Gauge)(Deutsch)
-
36293000052 Sealing Cap (Deutsch)Sealing Cap (Deutsch)
-
37293000070 Sealing Cap (AMP)Sealing Cap (AMP)
-
38278001210 Female Terminal (AMP)Female Terminal (AMP)
-
39278000218 Wire Seal (16-18 Gauge) (Green) (Packard)Wire Seal (16-18 Gauge) (Green) (Packard)
-
40278000223 Female Terminal (18 Gauge)(Packard)Female Terminal (18 Gauge)(Packard)
-
41278000995 Female Terminal (AMP)Female Terminal (AMP)
-
42293750002 Tie Rap 130 mmTie Rap 130 mm
-
43409011700 Female Terminal (AMP)Female Terminal (AMP)
-
44515175260 Female Terminal (Deutsch)Female Terminal (Deutsch)
-
45278001474 Wedge (4 Circuits) (Deutsch)Wedge (4 Circuits) (Deutsch)
-
46278001002 Wire Boot(Bosch)Wire Boot(Bosch)
-
47278001485 Engine Harness Ass'y. Includes 47 - 75.Engine Harness Ass'y. Includes 47 - 75.
-
48278000995 Female Terminal (AMP)Female Terminal (AMP)
-
49278001223 Wire Seal(AMP)Wire Seal(AMP)
-
50278001211 Male Housing (26 Circuits) (AMP). Includes 50 - 51.Male Housing (26 Circuits) (AMP). Includes 50 - 51.
-
51278001307 Wire Seal (AMP)Wire Seal (AMP)
-
52293000070 Sealing Cap (AMP)Sealing Cap (AMP)
-
53278000994 Female Terminal (AMP)Female Terminal (AMP)
-
54409013900 Plug(AMP)Plug(AMP)
-
55278001005 Male Housing (2 Circuits)(Bosch)Male Housing (2 Circuits)(Bosch)
-
56278000999 Wire Seal (AMP)Wire Seal (AMP)
-
57278000998 Female Terminal (AMP)Female Terminal (AMP)
-
58278001210 Female Terminal (AMP)Female Terminal (AMP)
-
59278000997 Male Housing (3 Circuits)(Bosch)Male Housing (3 Circuits)(Bosch)
-
60278001003 Male Housing (2 Circuits)(Bosch)Male Housing (2 Circuits)(Bosch)
-
61278001480 Male Housing (2 Circuits)(Packard)Male Housing (2 Circuits)(Packard)
-
62278001482 Seal (Packard)Seal (Packard)
-
63278001481 Female Terminal (Packard)Female Terminal (Packard)
-
64278001483 Male Secondary Lock (2 Circuits)(Packard)Male Secondary Lock (2 Circuits)(Packard)
-
65409207300 Female Housing (2 Circuits)(Deutsch)Female Housing (2 Circuits)(Deutsch)
-
66278000632 Female Terminal (Deutsch)Female Terminal (Deutsch)
-
67409207100 Female Lock (2 Circuits)(Packard)Female Lock (2 Circuits)(Packard)
-
68278000220 Male Housing (2 Circuits)(Packard)Male Housing (2 Circuits)(Packard)
-
69278000223 Female Terminal (Packard)Female Terminal (Packard)
-
70278000218 Wire Seal(Packard)Wire Seal(Packard)
-
71278001484 Rubber CapRubber Cap
-
72293750001 Tie Rap 94 mmTie Rap 94 mm
-
73293750002 Tie Rap 130 mmTie Rap 130 mm
-
74278001308 Male Housing (4 Circuits)(Packard)Male Housing (4 Circuits)(Packard)
-
75278001114 Female Terminal (Packard)Female Terminal (Packard)
-
76293550015 Deoxit Spray LubeDeoxit Spray Lube
