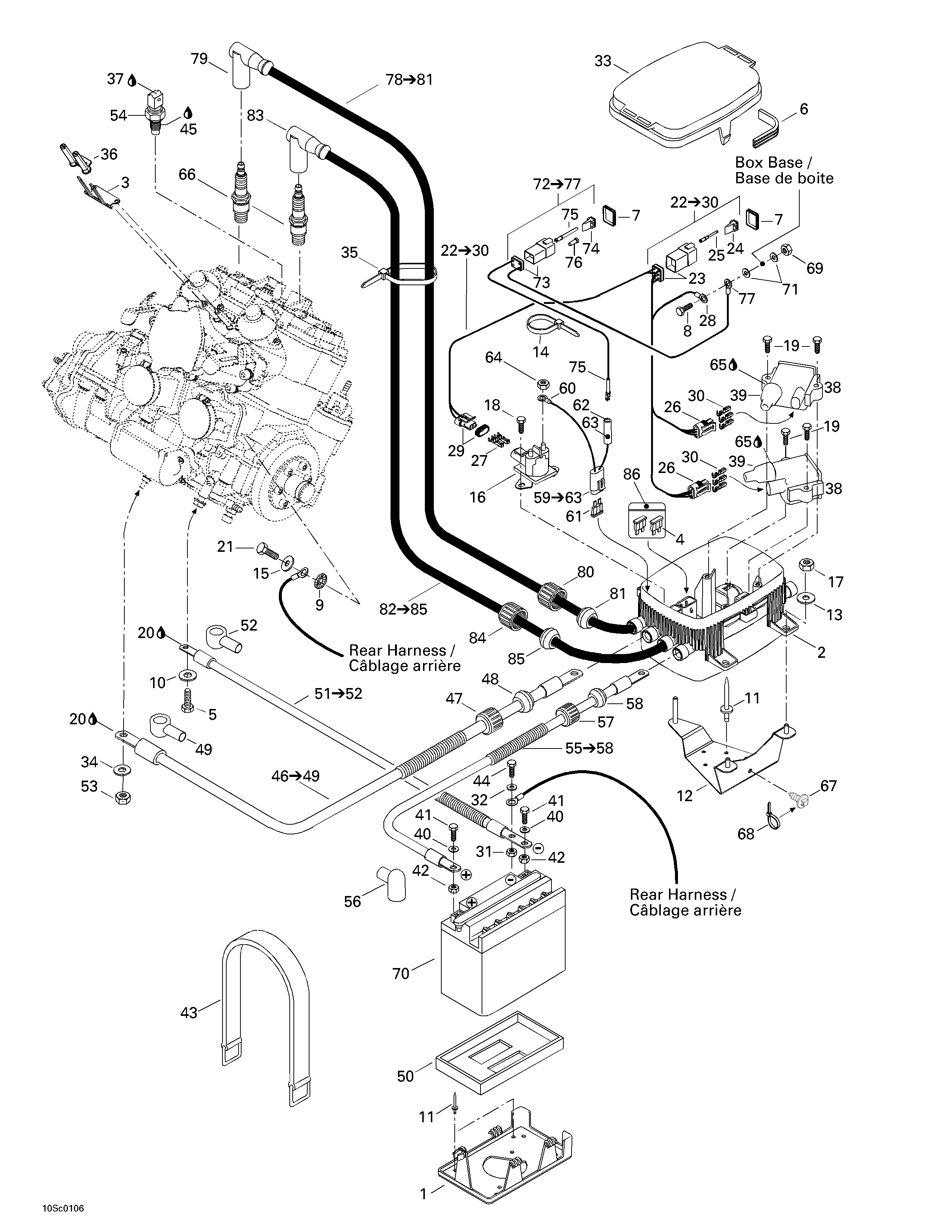

10- Rear Electrical Box для BRP GTX DI, 5528/5529/5540/5541 - 2001
-
№АртикулНазвание
-
1278001580 Battery SupportBattery Support
-
2278001469 Electric box baseElectric box base
-
3278001662 Ground PlateGround Plate
-
4278001443 Fuse 25 AmpFuse 25 Amp
-
278000343 Fuse 15 AmpFuse 15 Amp
-
5207302060 Hex. Screw M10 x 20 (Scotch Grip)Hex. Screw M10 x 20 (Scotch Grip)
-
6278001173 GasketGasket
-
7293200030 GasketGasket
-
8207161660 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
9234461608 External Tooth Washer 6 mmExternal Tooth Washer 6 mm
-
10234001600 Flat Washer 10 mmFlat Washer 10 mm
-
11293150037 Rivet 3/16Rivet 3/16
-
12278001487 Electric Box SupportElectric Box Support
-
13234062600 Flat Washer 6 mmFlat Washer 6 mm
-
14293750002 Tie Rap 130 mmTie Rap 130 mm
-
15234061600 Flat Washer 6 mmFlat Washer 6 mm
-
16278001376 Starter RelayStarter Relay
-
17232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
18210261040 Hex. Screw M6 x 10Hex. Screw M6 x 10
-
19209463840 Hex. Screw TappingHex. Screw Tapping
-
20293550004 Dielectric Grease, 150grDielectric Grease, 150gr
-
21207361260 Hex. Screw M6 x 12Hex. Screw M6 x 12
-
22278001458 Electric Box Harness. Includes 22 - 30.Electric Box Harness. Includes 22 - 30.
-
23270000137 Female Housing (6 Circuits)Female Housing (6 Circuits)
-
24278000735 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
25278000631 Male TerminalMale Terminal
-
26278001467 Male Housing (3 Circuits)Male Housing (3 Circuits)
-
27278001114 Female TerminalFemale Terminal
-
28409012600 Open BarrelOpen Barrel
-
29278001113 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
30278001468 Female TerminalFemale Terminal
-
31232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
32234061600 Flat Washer 6 mmFlat Washer 6 mm
-
33278001433 CoverCover
-
34234061600 Washer 6 mmWasher 6 mm
-
35293750002 Tie Rap 130 mmTie Rap 130 mm
-
36278001512 InsulatorInsulator
-
37293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
38278001451 Ignition CoilIgnition Coil
-
39278001470 Protector CapProtector Cap
-
40211200018 Flat Washer 6 mmFlat Washer 6 mm
-
41211000045 Hex. ScrewHex. Screw
-
42211100022 Nut M6Nut M6
-
43293850021 StrapStrap
-
44207161260 Hex. Screw M6 x 12Hex. Screw M6 x 12
-
45293800038 Loctite 518, 50mlLoctite 518, 50ml
-
46278001457 Starter Cable (Red). Includes 46 - 49.Starter Cable (Red). Includes 46 - 49.
-
47278000100 Electrical Box CapElectrical Box Cap
-
48278000098 Grommet (1 Circuit) (Black)Grommet (1 Circuit) (Black)
-
49278000020 Protector CapProtector Cap
-
50278001234 Battery Lower PadBattery Lower Pad
-
51278001462 Battery Ground Cable. Includes 51 - 52.Battery Ground Cable. Includes 51 - 52.
-
52278001491 Wire Cap (Black)Wire Cap (Black)
-
53232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
54278001016 Temperature SensorTemperature Sensor
-
55278001459 Battery Positive Cable (Red). Includes 55 - 58.Battery Positive Cable (Red). Includes 55 - 58.
-
56278000020 Battery Wire Cap (Red)Battery Wire Cap (Red)
-
57278000100 Electrical Box CapElectrical Box Cap
-
58278000098 Grommet (1 Circuit) (Black)Grommet (1 Circuit) (Black)
-
59278001453 Fuse Harness 30 Amp. Includes 59 - 63.Fuse Harness 30 Amp. Includes 59 - 63.
-
60409012600 Open BarrelOpen Barrel
-
61410917200 30 Amp. Fuse30 Amp. Fuse
-
62515175260 Female TerminalFemale Terminal
-
63515175259 Joint HousingJoint Housing
-
64232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
65293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
66278001574 Spark Plug (NGK ZFR-4F-11)Spark Plug (NGK ZFR-4F-11)
-
67293730018 Dart MountDart Mount
-
68414115200 Tie Rap 180 mmTie Rap 180 mm
-
69232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
70278000712 BatteryBattery
-
71234062410 Flat Washer 6 mmFlat Washer 6 mm
-
72278001494 Electric Box Harness. Includes 72 - 77.Electric Box Harness. Includes 72 - 77.
-
73278001477 Female Housing (4 Circuits)Female Housing (4 Circuits)
-
74278001478 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
75515175261 Male TerminalMale Terminal
-
76293000052 Sealing CapSealing Cap
-
77278001392 Open BarrelOpen Barrel
-
78278001454 Coil Cable (MAG). Includes 78 - 81.Coil Cable (MAG). Includes 78 - 81.
-
79278001452 Spark Plug CapSpark Plug Cap
-
80278000100 Electric Wire CapElectric Wire Cap
-
81278000682 Grommet (Gray)Grommet (Gray)
-
82278001466 Coil Cable (PTO). Includes 82 - 85.Coil Cable (PTO). Includes 82 - 85.
-
83278001452 Spark Plug CapSpark Plug Cap
-
84278000100 Electric Wire CapElectric Wire Cap
-
85278000682 Grommet (Gray)Grommet (Gray)
