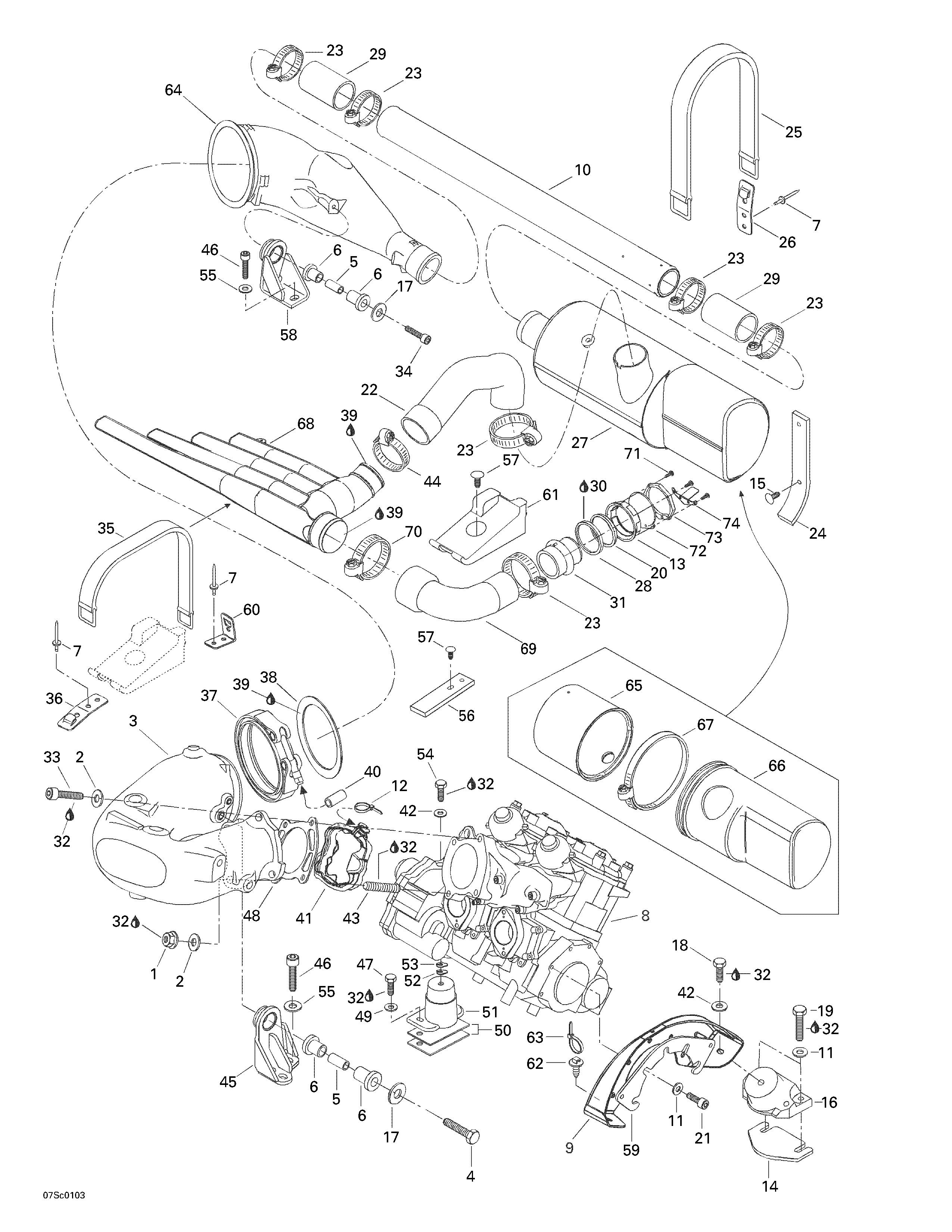

01- Engine Support And Muffler для BRP XP, 5530/5531 - 2001
-
№АртикулНазвание
-
1233101600 Hex. Flanged Nut M10Hex. Flanged Nut M10
-
2211200051 WasherWasher
-
3274000927 Head Pipe Ass'y (Black)Head Pipe Ass'y (Black)
-
4245004060 Hex. Screw M10 x 40 (Scotch Grip)Hex. Screw M10 x 40 (Scotch Grip)
-
5274000861 BushingBushing
-
6293830065 Bushing RubberBushing Rubber
-
7293150037 RivetRivet
-
8270000524 Rotax Engine 947 (Silver)Rotax Engine 947 (Silver)
-
9270000359 Engine Support (Black)Engine Support (Black)
-
10274000948 Expension TubeExpension Tube
-
11234081600 Washer 8 mmWasher 8 mm
-
12293750002 Locking Tie 142 mmLocking Tie 142 mm
-
13274000835 Nut M72Nut M72
-
14270000122 Shim 0.3 mmShim 0.3 mm
-
270000123 Shim 1.3 mmShim 1.3 mm
-
15414644300 DartDart
-
16270000421 Rubber MountRubber Mount
-
17234002600 Flat Washer 10 mmFlat Washer 10 mm
-
18207181660 Hex. Screw M8 x 16Hex. Screw M8 x 16
-
19207184060 Hex. Screw M8 x 40Hex. Screw M8 x 40
-
20274000225 WasherWasher
-
21205582560 Socket Head Screw M8 x 25 (Scotch Grip)Socket Head Screw M8 x 25 (Scotch Grip)
-
22274000783 Exhaust HoseExhaust Hose
-
23293650064 Tridon ClampTridon Clamp
-
24293830089 Rubber PadRubber Pad
-
25293850026 Strap. Includes 25 - 26.Strap. Includes 25 - 26.
-
26293850024 Strap ClipStrap Clip
-
27274000810 MufflerMuffler
-
28293250041 GasketGasket
-
29274000530 Exhaust HoseExhaust Hose
-
30296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
31274000843 Outlet ExhaustOutlet Exhaust
-
32293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
33244003560 SocketHeadScrewM10x35(ScotchGrip)SocketHeadScrewM10x35(ScotchGrip)
-
34244004060 SocketHeadScrewM10x40(ScotchGrip)SocketHeadScrewM10x40(ScotchGrip)
-
35293850026 Strap. Includes 35 - 36.Strap. Includes 35 - 36.
-
36293850024 Strap ClipStrap Clip
-
37274000510 ClampClamp
-
38274000511 Sealing RingSealing Ring
-
39293800090 Sealant, Loctite 17914, 80 mlSealant, Loctite 17914, 80 ml
-
40275000007 Hose 8 mm (Meter)Hose 8 mm (Meter)
-
41274000862 Recovery EnvelopeRecovery Envelope
-
42234082600 Flat Washer 8 mmFlat Washer 8 mm
-
43250300008 Stud M10 x 55Stud M10 x 55
-
44293650107 Tridon ClampTridon Clamp
-
45274000890 Support PipeSupport Pipe
-
46244083060 Socket Head Screw M8 x 25 (Scotch Grip)Socket Head Screw M8 x 25 (Scotch Grip)
-
47207184060 Screw Hex M8 x 40Screw Hex M8 x 40
-
48290931990 GasketGasket
-
49234081600 Washer 8 mmWasher 8 mm
-
50270000122 Shim 0.3 mmShim 0.3 mm
-
270000123 Shim 1.3 mmShim 1.3 mm
-
51270000430 Rubber MountRubber Mount
-
52270000024 Shim 0.4 mmShim 0.4 mm
-
53270000025 Shim 1.3 mmShim 1.3 mm
-
54207182060 Hex. Screw M8 x 20Hex. Screw M8 x 20
-
55250200012 Washer 8 mmWasher 8 mm
-
56293830073 Resonator PadResonator Pad
-
57293730006 DartDart
-
58274000878 Pipe SupportPipe Support
-
59293250110 GasketGasket
-
60293850045 Strap Clip 90 DegStrap Clip 90 Deg
-
61292000628 Foam PadFoam Pad
-
62293730018 DartDart
-
63414115200 Tie RapTie Rap
-
64274000658 Exhaust Cone (Black)Exhaust Cone (Black)
-
65274000811 Muffler Cover (Front)Muffler Cover (Front)
-
66274000812 Muffler Cover (Rear)Muffler Cover (Rear)
-
67293750020 Tie Rap, 838 mmTie Rap, 838 mm
-
68274000700 Resonator LHResonator LH
-
69274000784 Adaptor HoseAdaptor Hose
-
70204000079 Tridon ClampTridon Clamp
-
71241141660 ScrewScrew
-
72293250107 GasketGasket
-
73274000892 Nut SupportNut Support
-
74274000885 BracketBracket
