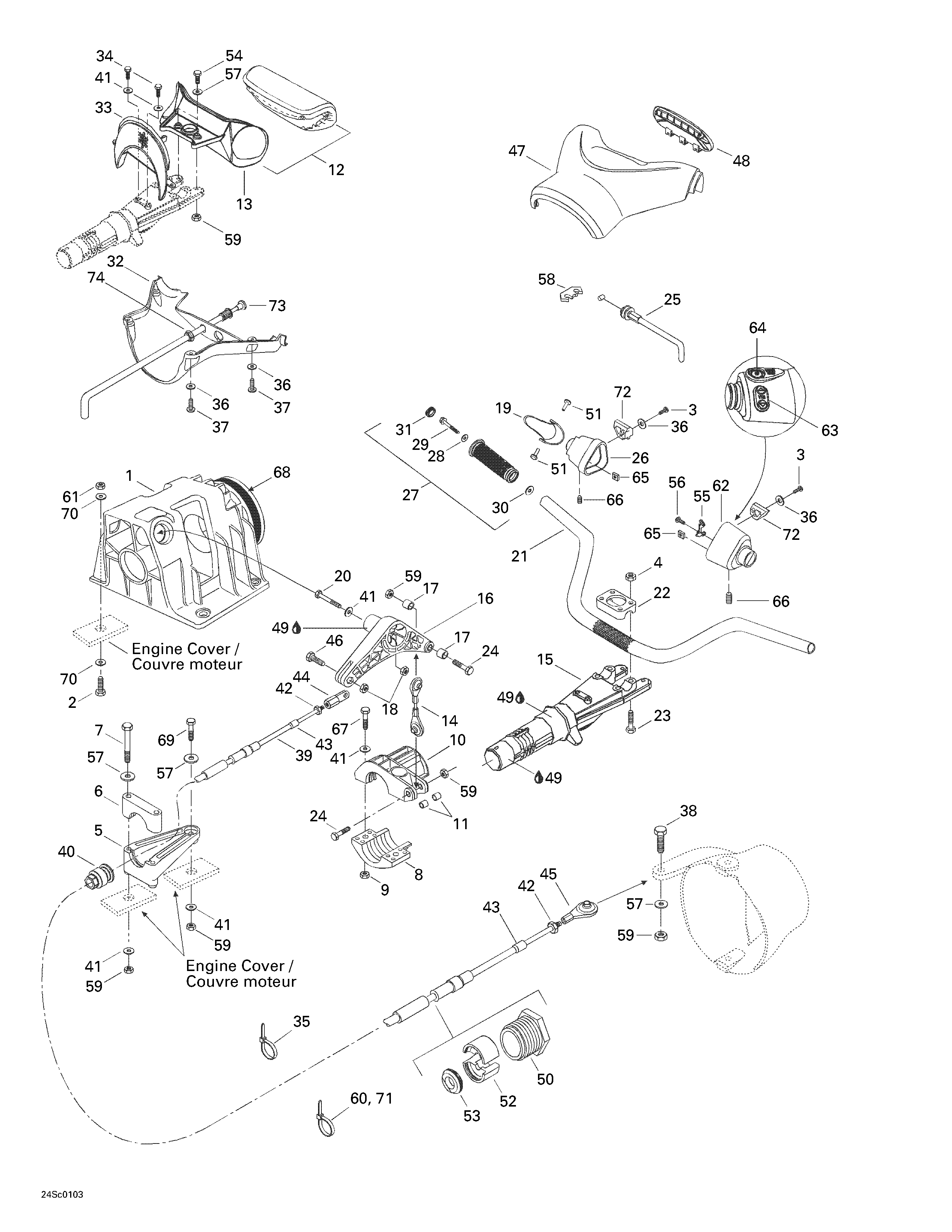

07- Steering System для BRP XP, 5530/5531 - 2001
-
№АртикулНазвание
-
1277000617 Support SteeringSupport Steering
-
2207083560 Hex. Screw M8 x 35Hex. Screw M8 x 35
-
3209630960 Tapping ScrewTapping Screw
-
4232581650 Elastic Stop Nut M8Elastic Stop Nut M8
-
5277001026 Cable SupportCable Support
-
6277000162 Thrust SupportThrust Support
-
7207067060 Hex. Screw M6 x 70Hex. Screw M6 x 70
-
8277000519 Thrust Arm. Includes 8 - 9.Thrust Arm. Includes 8 - 9.
-
9232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
10277000620 Arm Steem Steering. Includes 10 - 11.Arm Steem Steering. Includes 10 - 11.
-
11291000176 Spacer 8 mmSpacer 8 mm
-
12277000867 Handle Bar Pad. Includes 12 - 13.Handle Bar Pad. Includes 12 - 13.
-
13277000687 Pad SupportPad Support
-
14277000829 Ball JointBall Joint
-
15277000562400 Steering StemSteering Stem
-
16277000772 ''L'' Lever. Includes 16 - 18.''L'' Lever. Includes 16 - 18.
-
17291000176 Spacer 8 mmSpacer 8 mm
-
18232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
19277000214 Throttle HandleThrottle Handle
-
20207162060 Screw Hex. M6 x 20Screw Hex. M6 x 20
-
21277000824 HandlebarHandlebar
-
22277000142 Steering ClampSteering Clamp
-
23207085060 Hex. Screw M8 x 50Hex. Screw M8 x 50
-
24207064060 Screw Hex. M6 x 40Screw Hex. M6 x 40
-
25277000912 Throttle CableThrottle Cable
-
26277000872 Throttle Handle HousingThrottle Handle Housing
-
27295500691 Handle Grip-Kit (Black). Includes 27 - 31.Handle Grip-Kit (Black). Includes 27 - 31.
-
28234062600 Flat Washer 6 mmFlat Washer 6 mm
-
29250000002 Screw M6 x 30Screw M6 x 30
-
31277000203 Grip Cap (Black)Grip Cap (Black)
-
32277000625 Lower Steering Cover (Black)Lower Steering Cover (Black)
-
33277000549 Plate (Black)Plate (Black)
-
34211000036 Screw Taptite 1/4-20 x 1/2Screw Taptite 1/4-20 x 1/2
-
35293750002 Locking Tie 142 mmLocking Tie 142 mm
-
36234051600 Flat Washer 5 mmFlat Washer 5 mm
-
37241141660 Screw K40 x 16Screw K40 x 16
-
38207063560 Screw Hex. M6 x 35Screw Hex. M6 x 35
-
39277001008 Steering CableSteering Cable
-
40277000782 Ajust. KnobAjust. Knob
-
41234062600 Flat Washer 6 mmFlat Washer 6 mm
-
42211100056 Hex. Nut 1/4-28Hex. Nut 1/4-28
-
43277000441 Wiper TerminalWiper Terminal
-
44277000774 RotuleRotule
-
45277000775 Ball JointBall Joint
-
46211000022 Hex. Special Screw M6 x 25Hex. Special Screw M6 x 25
-
47277000833 Upper Steering Cover (Black). Includes 47 - 48.Upper Steering Cover (Black). Includes 47 - 48.
-
48277000823 Steering Cover PlateSteering Cover Plate
-
49293550010 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
50277000784 Lock CableLock Cable
-
51277000381 PinPin
-
52277000783 Half RingHalf Ring
-
53293830063 Washer RubberWasher Rubber
-
54207063060 Hex. Screw M6 x 30Hex. Screw M6 x 30
-
55277000845 Retainer PlateRetainer Plate
-
56209631360 Screw 3.5 x 13Screw 3.5 x 13
-
57234061600 Flat Washer 6 mmFlat Washer 6 mm
-
58277000279 Lock-TabLock-Tab
-
59232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
60293750008 Tie RapTie Rap
-
61232581650 Elastic Stop Nut M8Elastic Stop Nut M8
-
62277000877 Left Housing ass'y. Includes 62 - 65.Left Housing ass'y. Includes 62 - 65.
-
63277000497 V.T.S. KnobV.T.S. Knob
-
64277000306 Switch KnobSwitch Knob
-
65232860600 Square Nut M6Square Nut M6
-
66250000036 Set Screw M6 x 16Set Screw M6 x 16
-
67207162560 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
68293200017 Neoprene Seal (Meter)Neoprene Seal (Meter)
-
69207063560 Hex. Screw M6 x 35Hex. Screw M6 x 35
-
70293050001 Flat Washer 8 mmFlat Washer 8 mm
-
71414115200 Tie RapTie Rap
-
72293450153 InsertInsert
-
73270000341 Choke Cable. Includes 73 - 74.Choke Cable. Includes 73 - 74.
-
74211100030 NutNut
