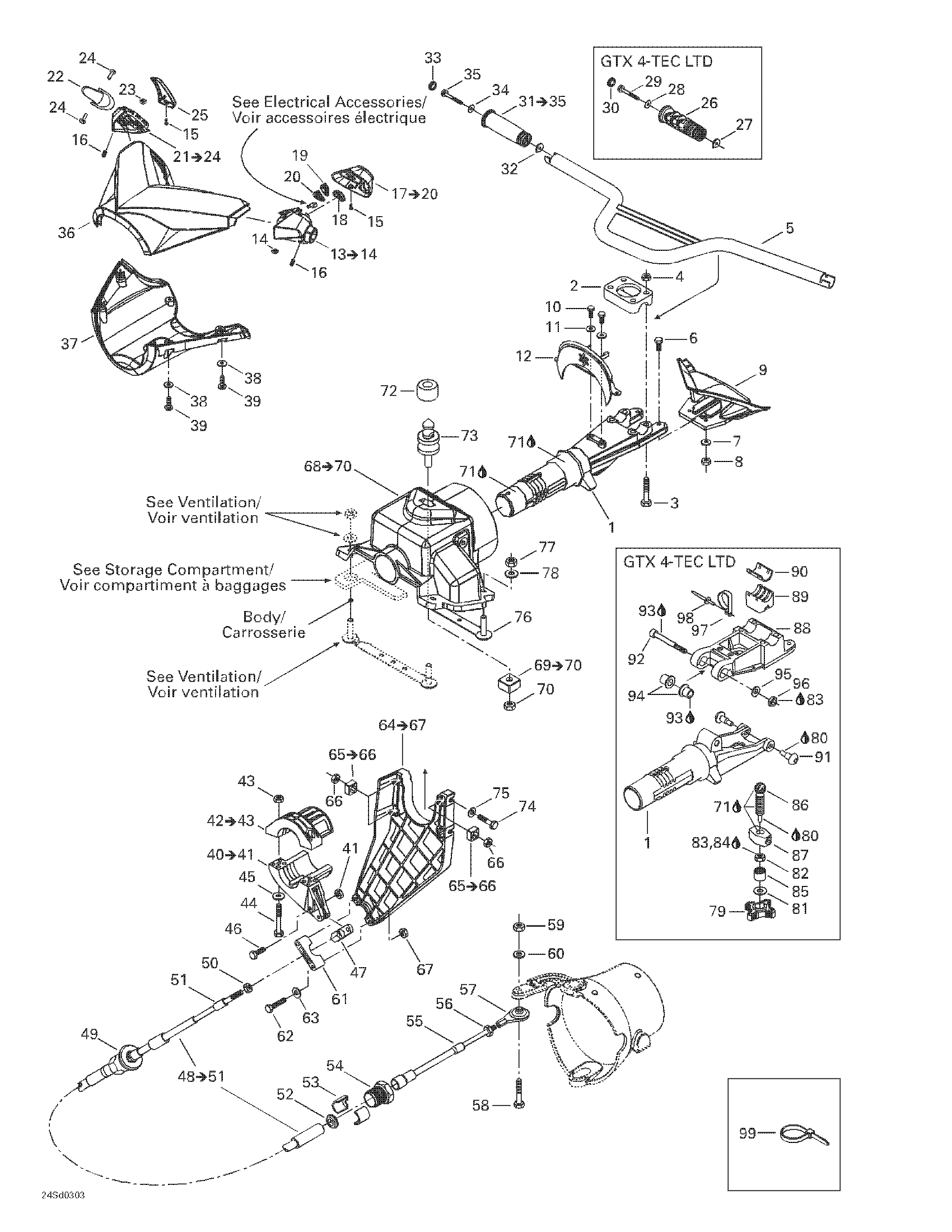

07- Steering System для BRP GTX 4-TEC, Supercharged - 2003
-
№АртикулНазвание
-
1277000562400 Steering stem. GTX 4-TEC SUPERCHARGED.Steering stem. GTX 4-TEC SUPERCHARGED.
-
277000758400 Steering stem. GTX 4-TEC LTD.Steering stem. GTX 4-TEC LTD.
-
2277000142 Steering clampSteering clamp
-
3207085060 Hex. screw M8 x 50. GTX 4-TEC SUPERCHARGED.Hex. screw M8 x 50. GTX 4-TEC SUPERCHARGED.
-
207087060 Hex. screw M8 x 70. GTX 4-TEC LTD.Hex. screw M8 x 70. GTX 4-TEC LTD.
-
4232581600 Elastic stop nut M8Elastic stop nut M8
-
5277001012 Handle bar. GTX 4-TEC SUPERCHARGED.Handle bar. GTX 4-TEC SUPERCHARGED.
-
277001132 Handle bar. GTX 4-TEC LTD.Handle bar. GTX 4-TEC LTD.
-
6207063060 Hex. screw M6 x 30Hex. screw M6 x 30
-
7234061600 Flat washer M6Flat washer M6
-
8232561600 Elastic stop nut M6Elastic stop nut M6
-
9277001096 Handle Pad. Earthen clay (M-532) GTX 4-TEC LTD.Handle Pad. Earthen clay (M-532) GTX 4-TEC LTD.
-
277001100 Handle Pad. Metalic silver (M-519) GTX 4-TEC SUPERCHARGED.Handle Pad. Metalic silver (M-519) GTX 4-TEC SUPERCHARGED.
-
10211000036 Hex. forming screw 1/4''-20 x 1/2''Hex. forming screw 1/4''-20 x 1/2''
-
11234062600 Flat washer M6Flat washer M6
-
12277000549 Plate (black). GTX 4-TEC SUPERCHARGED.Plate (black). GTX 4-TEC SUPERCHARGED.
-
277000766 Plate (black). GTX 4-TEC LTD.Plate (black). GTX 4-TEC LTD.
-
13277000954 Housing ass'y. Includes 13 - 14.Housing ass'y. Includes 13 - 14.
-
14232860600 Square nut M6Square nut M6
-
15209630960 Phillips tapping screw M3.9 x 9.5Phillips tapping screw M3.9 x 9.5
-
16250000036 Socket set screw M6 x 16Socket set screw M6 x 16
-
17277001103 Cover housing ass'y. Includes 17 - 20. GTX 4-TEC SUPERCHARGED.Cover housing ass'y. Includes 17 - 20. GTX 4-TEC SUPERCHARGED.
-
277001124 Cover housing ass'y. GTX 4-TEC LTD.Cover housing ass'y. GTX 4-TEC LTD.
-
18278001713 Stop knobStop knob
-
19278001714 Mode knobMode knob
-
20278001715 Set knobSet knob
-
21277000995 Throttle housing ass'y. Includes 21 - 24.Throttle housing ass'y. Includes 21 - 24.
-
22277001107 Throttle handleThrottle handle
-
23232860600 Square nut M6Square nut M6
-
24277000381 PinPin
-
25277001102 Throttle housing cover. GTX 4-TEC SUPERCHARGED.Throttle housing cover. GTX 4-TEC SUPERCHARGED.
-
277001128 Throttle housing cover. GTX 4-TEC LTD.Throttle housing cover. GTX 4-TEC LTD.
-
26277001130 Handle Grip. GTX 4-TEC LTD.Handle Grip. GTX 4-TEC LTD.
-
28234062600 Flat washer M6. GTX 4-TEC LTD.Flat washer M6. GTX 4-TEC LTD.
-
29250000002 Hex. screw M6 x 30 (scotch grip). GTX 4-TEC LTD.Hex. screw M6 x 30 (scotch grip). GTX 4-TEC LTD.
-
30277000203 Grip cap. GTX 4-TEC LTD.Grip cap. GTX 4-TEC LTD.
-
31295500691 Handle grip kit. Includes 31 - 35. GTX 4-TEC SUPERCHARGED.Handle grip kit. Includes 31 - 35. GTX 4-TEC SUPERCHARGED.
-
33277000203 Grip cap. GTX 4-TEC SUPERCHARGED.Grip cap. GTX 4-TEC SUPERCHARGED.
-
34234062600 Flat washer M6. GTX 4-TEC SUPERCHARGED.Flat washer M6. GTX 4-TEC SUPERCHARGED.
-
35250000002 Hex screw M6 x 30 (scotch grip). GTX 4-TEC SUPERCHARGED.Hex screw M6 x 30 (scotch grip). GTX 4-TEC SUPERCHARGED.
-
36277000952 Upper steering cover. GTX 4-TEC SUPERCHARGED.Upper steering cover. GTX 4-TEC SUPERCHARGED.
-
277001098 Upper steering cover. GTX 4-TEC LTD.Upper steering cover. GTX 4-TEC LTD.
-
37277001099 Lower steering cover. GTX 4-TEC SUPERCHARGED.Lower steering cover. GTX 4-TEC SUPERCHARGED.
-
277001145 Lower steering cover. GTX 4-TEC LTD.Lower steering cover. GTX 4-TEC LTD.
-
38234051600 Flat washer M5Flat washer M5
-
39241141660 Hex. flanged screw K40 x 16Hex. flanged screw K40 x 16
-
40277000518 Stem Steering arm ass'y. Includes 40 - 41.Stem Steering arm ass'y. Includes 40 - 41.
-
41232561600 Elastic stop nut M6Elastic stop nut M6
-
42277000519 Arm thrust ass'y. Includes 42 - 43.Arm thrust ass'y. Includes 42 - 43.
-
43232561600 Elastic stop nut M6Elastic stop nut M6
-
44207162560 Hex. screw M6 x 25Hex. screw M6 x 25
-
45234062600 Flat washer M6Flat washer M6
-
46211000081 Hex. screw M6 x 30Hex. screw M6 x 30
-
47277001180 Ball jointBall joint
-
48277000949 Steering cable ass'y. Includes 48 - 51.Steering cable ass'y. Includes 48 - 51.
-
49277000782 Ajustment knobAjustment knob
-
50211100056 Hex. nut 1/4''-28Hex. nut 1/4''-28
-
51277000441 Terminal wiperTerminal wiper
-
52293830063 Rubber washerRubber washer
-
53277000783 Half-ringHalf-ring
-
54277000784 Steering cable lockSteering cable lock
-
55277000441 Terminal wiperTerminal wiper
-
56211100056 Hex. nut 1/4''-28Hex. nut 1/4''-28
-
57277000775 Ball jointBall joint
-
58207063560 Hex. screw M6 x 35Hex. screw M6 x 35
-
59232561600 Elastic stop nut M6Elastic stop nut M6
-
60234061600 Flat washer M6Flat washer M6
-
61277000162 Support thrustSupport thrust
-
62207065060 Hex. screw M6 x 50Hex. screw M6 x 50
-
63234061600 Flat washer M6Flat washer M6
-
64277000516 Cable support. Includes 64 - 67.Cable support. Includes 64 - 67.
-
65269500252 Nut housing ass'y. Includes 65 - 66.Nut housing ass'y. Includes 65 - 66.
-
66232061600 Hex. nut M6Hex. nut M6
-
67232561600 Elastic stop nut M6Elastic stop nut M6
-
68277000898 Steering support. Includes 68 - 70.Steering support. Includes 68 - 70.
-
69271001115 Nut housing ass'y. Includes 69 - 70.Nut housing ass'y. Includes 69 - 70.
-
70232001600 Hex. nut M10Hex. nut M10
-
71293550010 Synthetic grease, 400 gSynthetic grease, 400 g
-
72293830078 Rubber padRubber pad
-
73291001420 Latch studLatch stud
-
74207162060 Hex. screw M6 x 20Hex. screw M6 x 20
-
75234061600 Flat washer M6Flat washer M6
-
76277001072 Steering supportSteering support
-
77232581600 Elastic stop nut M8Elastic stop nut M8
-
78234081600 Flat washer M8Flat washer M8
-
79277000764 Adjuster handle. GTX 4-TEC LTD.Adjuster handle. GTX 4-TEC LTD.
-
80293800060 Loctite 243, 10 ml. GTX 4-TEC LTD.Loctite 243, 10 ml. GTX 4-TEC LTD.
-
81234082600 Flat washer M8. GTX 4-TEC LTD.Flat washer M8. GTX 4-TEC LTD.
-
82232180600 Hex. jam nut M8. GTX 4-TEC LTD.Hex. jam nut M8. GTX 4-TEC LTD.
-
83293800005 Loctite 271, 10 ml. GTX 4-TEC LTD.Loctite 271, 10 ml. GTX 4-TEC LTD.
-
84293800041 Loctite, primer N. GTX 4-TEC LTD.Loctite, primer N. GTX 4-TEC LTD.
-
85277000786 Stopper bushing. GTX 4-TEC LTD.Stopper bushing. GTX 4-TEC LTD.
-
86211000145 Adjuster screw. GTX 4-TEC LTD.Adjuster screw. GTX 4-TEC LTD.
-
87277000761 Block. GTX 4-TEC LTD.Block. GTX 4-TEC LTD.
-
88277000901 Steering support. GTX 4-TEC LTD.Steering support. GTX 4-TEC LTD.
-
89277000762 Stopper. GTX 4-TEC LTD.Stopper. GTX 4-TEC LTD.
-
91277000763 Threaded pivot. GTX 4-TEC LTD.Threaded pivot. GTX 4-TEC LTD.
-
92250000004 Socket head screw M10 x 73 (scotch grip). GTX 4-TEC LTD.Socket head screw M10 x 73 (scotch grip). GTX 4-TEC LTD.
-
93293800070 Loctite 767, antiseize lubricant, 8 oz. GTX 4-TEC LTD.Loctite 767, antiseize lubricant, 8 oz. GTX 4-TEC LTD.
-
94277000844 Support bushing. GTX 4-TEC LTD.Support bushing. GTX 4-TEC LTD.
-
95234001600 Flat washer M10. GTX 4-TEC LTD.Flat washer M10. GTX 4-TEC LTD.
-
96232100600 Hex. nut M10. GTX 4-TEC LTD.Hex. nut M10. GTX 4-TEC LTD.
-
97293750021 Clamp tie. GTX 4-TEC LTD.Clamp tie. GTX 4-TEC LTD.
-
98293150008 Pop rivet 3/16''. GTX 4-TEC LTD.Pop rivet 3/16''. GTX 4-TEC LTD.
-
99293750008 Tie-rap 350 mmTie-rap 350 mm
