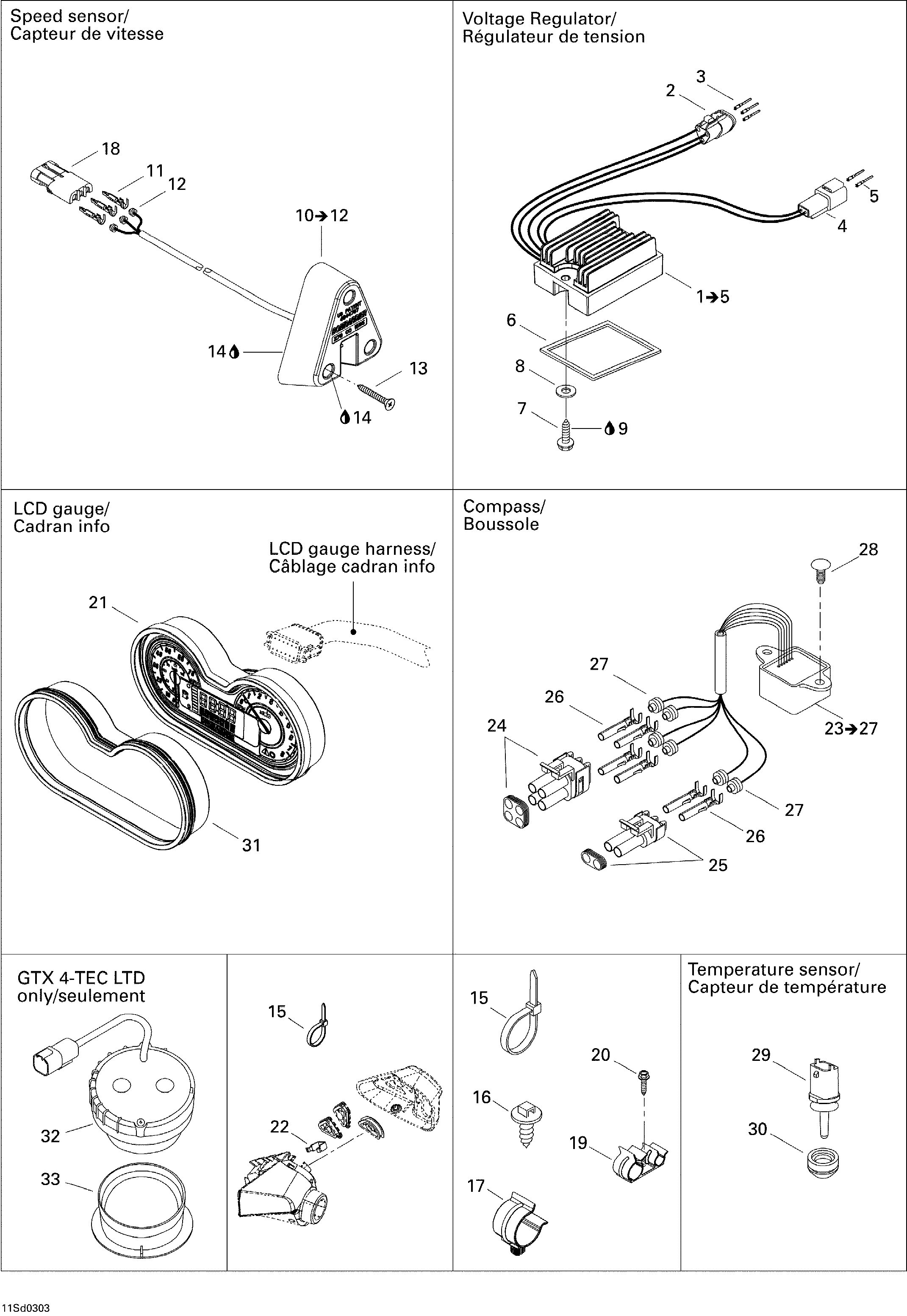

10- Electrical Accessories для BRP GTX 4-TEC, Supercharged - 2003
-
№АртикулНазвание
-
1278001581 Regulator. Includes 1 - 5.Regulator. Includes 1 - 5.
-
2409207400 Female terminal housing (3 circuits)Female terminal housing (3 circuits)
-
3278000631 Male terminalMale terminal
-
4409206900 Male terminal housing (2 circuits)Male terminal housing (2 circuits)
-
5515175568 Male TerminalMale Terminal
-
6293250123 R.H. SealR.H. Seal
-
7211000023 Hex. flanged plastite screw #10 x 7/8''Hex. flanged plastite screw #10 x 7/8''
-
8234061600 Flat washer M6Flat washer M6
-
9293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
10278001585 Speed sensor. Includes 10 - 12.Speed sensor. Includes 10 - 12.
-
13211000021 Pan head Phillips screw #10 x 5/8''Pan head Phillips screw #10 x 5/8''
-
14296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
15414115200 Tie-rapTie-rap
-
293750002 Locking Tie 142 mmLocking Tie 142 mm
-
293750027 Tie-rap 206 mmTie-rap 206 mm
-
293750008 Tie-rap 350 mmTie-rap 350 mm
-
16293730018 Mount dartMount dart
-
17275500527 RetainerRetainer
-
18278000281 Female housing (3 circuits)Female housing (3 circuits)
-
19275500553 RetainerRetainer
-
20241141660 Hex. flanged screw K40 x 16Hex. flanged screw K40 x 16
-
21278001823 LCD gauge. Yellow (M-506). Viper red (B-176) GTX 4-TEC SUPERCHARGED.LCD gauge. Yellow (M-506). Viper red (B-176) GTX 4-TEC SUPERCHARGED.
-
278001844 LCD gauge. Seashore metallic (B-207) GTX 4-TEC LTD.LCD gauge. Seashore metallic (B-207) GTX 4-TEC LTD.
-
22277001069 ''U'' Bracket''U'' Bracket
-
23278001243 Compass. Includes 23 - 27.Compass. Includes 23 - 27.
-
24278000891 Male housing (4 circuits)Male housing (4 circuits)
-
25278000220 Male housing (2 circuits)Male housing (2 circuits)
-
26278000223 Female terminalFemale terminal
-
27278000218 Wire sealWire seal
-
28293730010 DartDart
-
29270600000 Air sensorAir sensor
-
30278001054 InsulatorInsulator
-
31278001603 Gauge supportGauge support
-
32278001787 Depth Sender. GTX 4-TEC LTD.Depth Sender. GTX 4-TEC LTD.
-
33292000925 Depth Sender BaseDepth Sender Base
