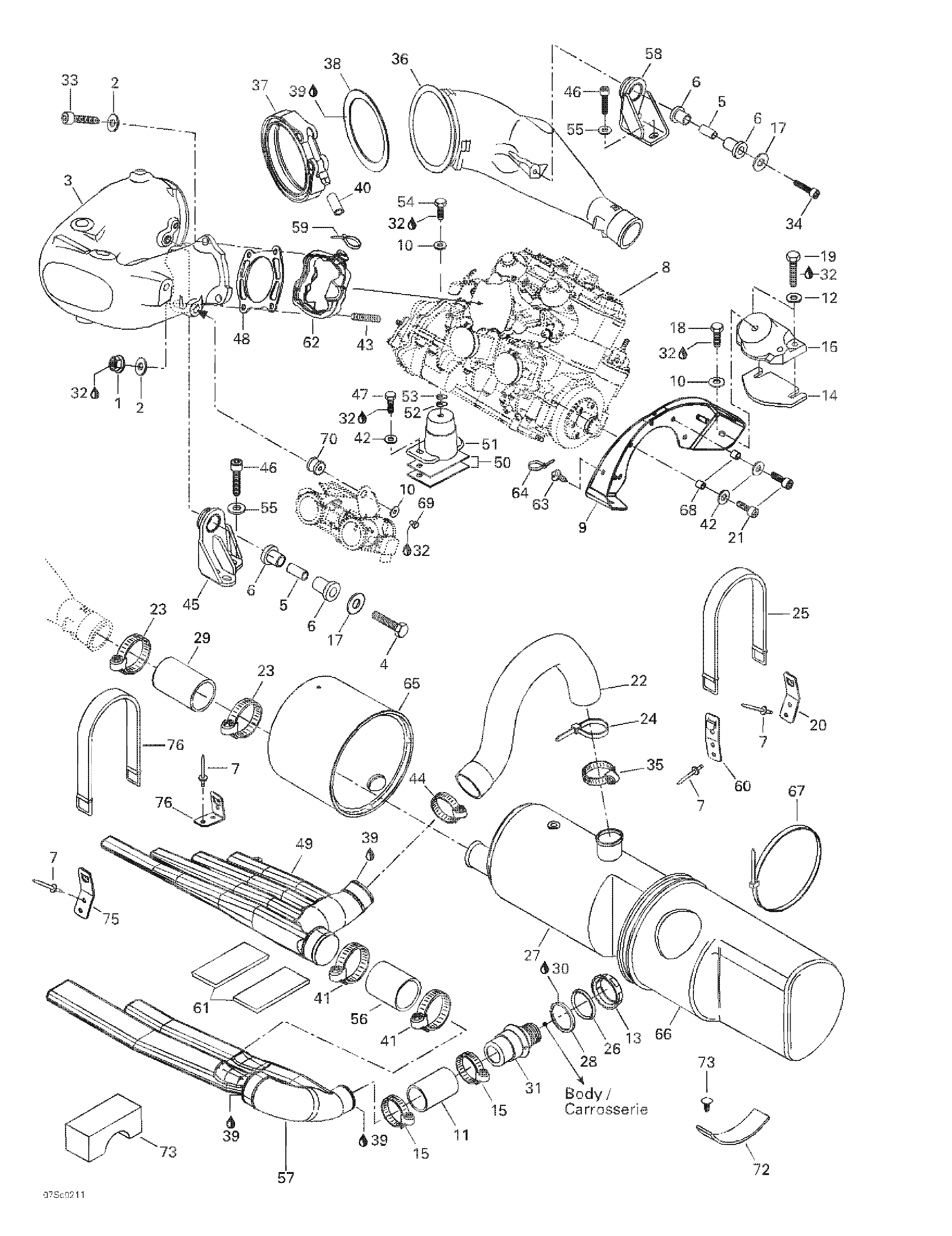

01- Engine Support And Muffler для BRP LRV DI, 5771 - 2003
-
№АртикулНазвание
-
1233101600 Hex. Flanged Nut M10Hex. Flanged Nut M10
-
2211200051 WasherWasher
-
3274000927 Head Pipe Ass'yHead Pipe Ass'y
-
4245004060 Hex. Screw M10 x 40 (Scotch Grip)Hex. Screw M10 x 40 (Scotch Grip)
-
5274000861 BushingBushing
-
6293830065 Bushing RubberBushing Rubber
-
7293150011 Pop Rivet 3/16''Pop Rivet 3/16''
-
8270000551 Rotax Engine 947 DI (Silver)Rotax Engine 947 DI (Silver)
-
9270000515 Engine SupportEngine Support
-
10234082600 Flat Washer 8 mmFlat Washer 8 mm
-
11274000616 Exhaust HoseExhaust Hose
-
12234081600 Washer 8 mmWasher 8 mm
-
13274000224 Nut M72Nut M72
-
14270000122 Shim 0.3 mmShim 0.3 mm
-
270000123 Shim 1.3 mmShim 1.3 mm
-
15293650064 Tridon Gear ClampTridon Gear Clamp
-
16270000421 Rubber MountRubber Mount
-
17234002600 Flat Washer 10 mmFlat Washer 10 mm
-
18207181660 Hex. Screw M8 x 16Hex. Screw M8 x 16
-
19207184060 Hex. Screw M8 x 40Hex. Screw M8 x 40
-
20293850024 Strap ClipStrap Clip
-
21205582560 Socket Head Screw M8 x 25 (Scotch Grip)Socket Head Screw M8 x 25 (Scotch Grip)
-
22274000830 Exhaust HoseExhaust Hose
-
23293650064 Tridon ClampTridon Clamp
-
24293750008 Tie Rap 350 mmTie Rap 350 mm
-
25293850021 StrapStrap
-
26274000225 Stabiliser WasherStabiliser Washer
-
27274000826 MufflerMuffler
-
28293250041 GasketGasket
-
29274000896 Exhaust HoseExhaust Hose
-
30296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
31274000843 Outlet ExhaustOutlet Exhaust
-
32293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
33244003560 Socket Head Screw M10 x 35 (Scotch Grip)Socket Head Screw M10 x 35 (Scotch Grip)
-
34244004060 Socket Head Screw M10 x 40 (Scotch Grip)Socket Head Screw M10 x 40 (Scotch Grip)
-
35293650064 Tridon ClampTridon Clamp
-
36274000871 Exhaust ConeExhaust Cone
-
37274000510 ClampClamp
-
38274000511 Sealing RingSealing Ring
-
39293800090 Sealant, Loctite 30542, 80 mlSealant, Loctite 30542, 80 ml
-
40275000007 Hose 8 mm (Meter)Hose 8 mm (Meter)
-
41204000079 Tridon Gear ClampTridon Gear Clamp
-
42234081600 Flat Washer 8 mmFlat Washer 8 mm
-
43250300008 Stud M10 x 55Stud M10 x 55
-
44293650107 Tridon Gear ClampTridon Gear Clamp
-
45274000890 Pipe Support (Black)Pipe Support (Black)
-
46244083060 Socket Head Screw M8 x 30 (Scotch Grip)Socket Head Screw M8 x 30 (Scotch Grip)
-
47207184060 Screw Hex M8 x 40Screw Hex M8 x 40
-
48290931990 Exhaust GasketExhaust Gasket
-
49274000700 L.H. ResonatorL.H. Resonator
-
50270000122 Shim 0.3 mmShim 0.3 mm
-
270000123 Shim 1.3 mmShim 1.3 mm
-
204250048 Shim 0.3 mmShim 0.3 mm
-
204250049 Shim 1.3 mmShim 1.3 mm
-
51270000422 Rubber MountRubber Mount
-
52270000024 Shim 0.4 mmShim 0.4 mm
-
53270000025 Shim 1.3 mmShim 1.3 mm
-
54207182060 Hex. Screw M8 x 20Hex. Screw M8 x 20
-
55250200012 Flat Washer 8.4 mmFlat Washer 8.4 mm
-
56274000726 Exhaust HoseExhaust Hose
-
57274000701 Resonator L.HResonator L.H
-
58274000777 Pipe Support (Black)Pipe Support (Black)
-
59293750002 Tie Rap 130 mmTie Rap 130 mm
-
60293850024 Strap ClipStrap Clip
-
61274000752 Rubber PadRubber Pad
-
62274000862 Pick-Up EnveloppePick-Up Enveloppe
-
63293730018 Dart MountDart Mount
-
64414115200 Tie Rap 180 mmTie Rap 180 mm
-
65274000796 Muffler CoverMuffler Cover
-
66274000799 Muffler CoverMuffler Cover
-
67293750020 Tie Rap 838 mmTie Rap 838 mm
-
68270000453 BushingBushing
-
69207181260 Hex. Screw M8 x 12Hex. Screw M8 x 12
-
70274000839 IsolatorIsolator
-
71204060190 Support Foam LowerSupport Foam Lower
-
72204060702 Rubber PadRubber Pad
-
73293730006 DartDart
-
74293850021 StrapStrap
-
75293850030 Strap ClipStrap Clip
-
76204060017 Strap Clip 90 DegStrap Clip 90 Deg
