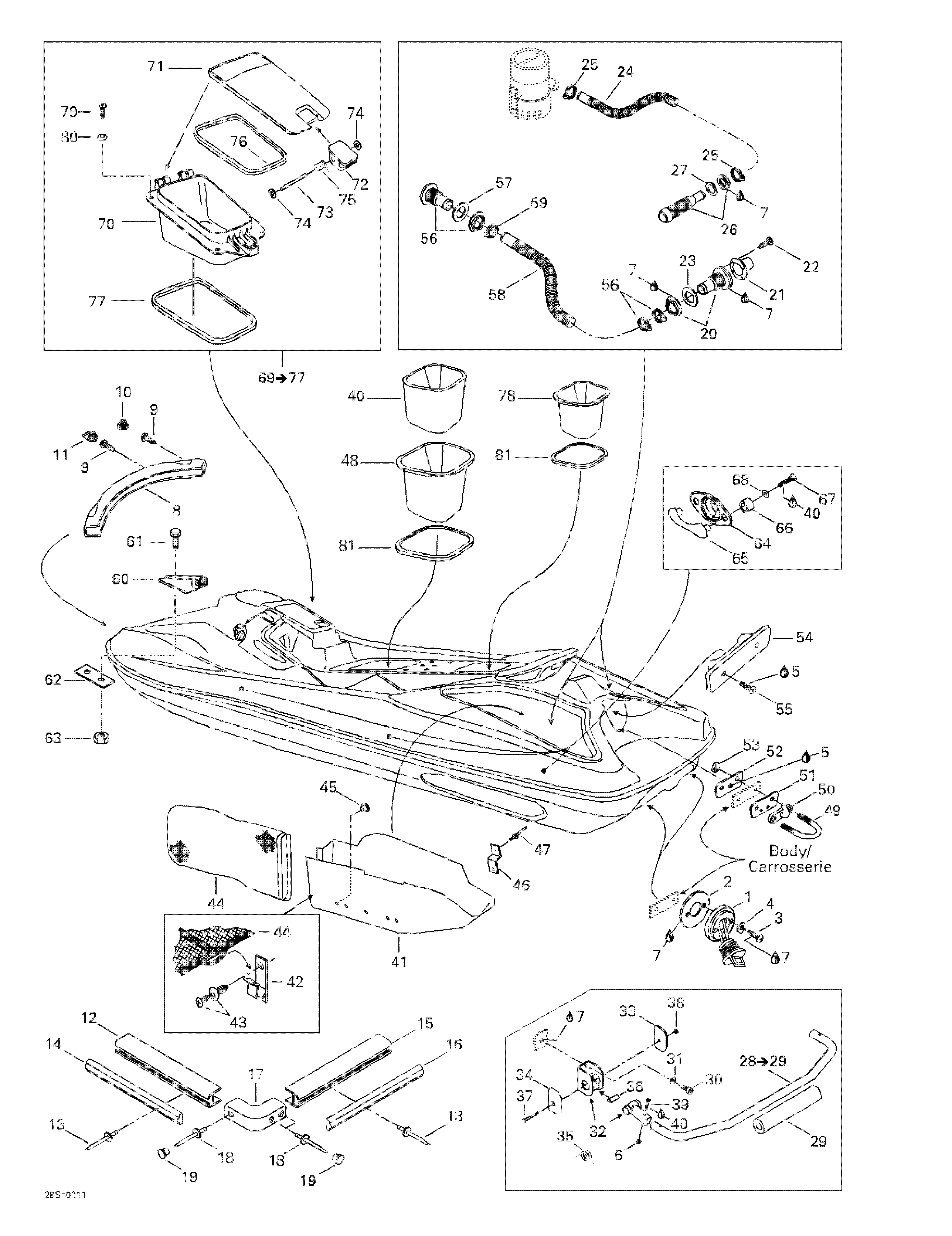

09- Body 2 для BRP LRV DI, 5771 - 2003
-
№АртикулНазвание
-
1292000187 Drain PlugDrain Plug
-
2293250030 GasketGasket
-
3209642560 Socket Head Screw M4 x 25Socket Head Screw M4 x 25
-
4234041600 Flat Washer 4 mmFlat Washer 4 mm
-
5293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
6232361600 Domed Nut Hex. M6Domed Nut Hex. M6
-
7296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
8291001035 Nose Bumper (Black)Nose Bumper (Black)
-
9211000037 Phillips Screw 10-14 x 7/8Phillips Screw 10-14 x 7/8
-
10291001519 Bumper Plug (Black)Bumper Plug (Black)
-
11291001040 Bumper Plug (Black)Bumper Plug (Black)
-
12204050270 Side Bumper (Black)Side Bumper (Black)
-
13293150005 Pop Rivet 3/16''Pop Rivet 3/16''
-
14204050271 Side Bumper TrimSide Bumper Trim
-
15204050278 Rear Bumper (Black)Rear Bumper (Black)
-
16204050279 Rear Bumper Trim (Black)Rear Bumper Trim (Black)
-
17291001505 Bumper Corner (Black)Bumper Corner (Black)
-
18293150013 Pop Rivet 3/16''Pop Rivet 3/16''
-
19291000339 Bumper PlugBumper Plug
-
20204060071 Thru-Hull FittingThru-Hull Fitting
-
21204060188 Scupper ValveScupper Valve
-
22211000180 Phillips ScrewPhillips Screw
-
23293250039 GasketGasket
-
24204050299 Hose Bilgeflex 3/4''Hose Bilgeflex 3/4''
-
25293650016 Clamp TridonClamp Tridon
-
26293710015 Fitting PerkoFitting Perko
-
27293250006 GasketGasket
-
28292000590 Stair Tube. Includes 28 - 29.Stair Tube. Includes 28 - 29.
-
29292000593 Protection SleeveProtection Sleeve
-
30205562560 Socket Head Screw M6 x 25 (Scotch Grip)Socket Head Screw M6 x 25 (Scotch Grip)
-
31234062600 Flat Washer 6 mmFlat Washer 6 mm
-
32292000539 Stair Support Ass'yStair Support Ass'y
-
33292000540 Support Cap R.HSupport Cap R.H
-
34292000548 Support Cap L.HSupport Cap L.H
-
35292000541 Recall SpringRecall Spring
-
37211000186 Phillips ScrewPhillips Screw
-
38211100061 Locking NutLocking Nut
-
39205063560 Socket Screw M6 x 35Socket Screw M6 x 35
-
40204630008 Icebox FoamIcebox Foam
-
42414839700 Cable ClipCable Clip
-
43211000088 ScrewScrew
-
45291000279 PlugPlug
-
46204050341 Retaining PlateRetaining Plate
-
47293150014 Rivet Pop 3/16''Rivet Pop 3/16''
-
48204620179 Storage TrayStorage Tray
-
49292000011 > Clamp> Clamp
-
50291001232 HookHook
-
51291000544 Finition PlateFinition Plate
-
52291000307 Retainer PlateRetainer Plate
-
53232581600 Elastic Stop Nut M8Elastic Stop Nut M8
-
54204070194 Handle Grip (Black)Handle Grip (Black)
-
55205364060 Socket Screw M6 x 40Socket Screw M6 x 40
-
56293710060 Fitting PerkoFitting Perko
-
57293250039 GasketGasket
-
58204070560 Hose Bilgeflex 1-1/2'' (Meter)Hose Bilgeflex 1-1/2'' (Meter)
-
59293650074 Clamp NormaClamp Norma
-
60291000855 Shock SupportShock Support
-
61207162560 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
62291000079 Reinforcement PlateReinforcement Plate
-
63232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
64291001195 Cargo HookCargo Hook
-
65291001196 Cleats Cargo HookCleats Cargo Hook
-
66291001203 SpacerSpacer
-
67207151660 Hex. Screw M5 x 16Hex. Screw M5 x 16
-
68234052600 Flat Washer 5 mmFlat Washer 5 mm
-
69204071410 Gloves Box Ass'y. Includes 69 - 77.Gloves Box Ass'y. Includes 69 - 77.
-
70269500439 Box GlovesBox Gloves
-
71269500438 Door (Box Gloves)Door (Box Gloves)
-
72269500441 LatchLatch
-
73211400008 PinPin
-
74211100002 Nut PushNut Push
-
75291000922 Spring LatchSpring Latch
-
76293250060 GasketGasket
-
77293250061 GasketGasket
-
78204620178 Rear TrayRear Tray
-
79209943260 Tapping ScrewTapping Screw
-
80204100057 Finishing WasherFinishing Washer
-
81293200032 Seal Tray (Meter)Seal Tray (Meter)
